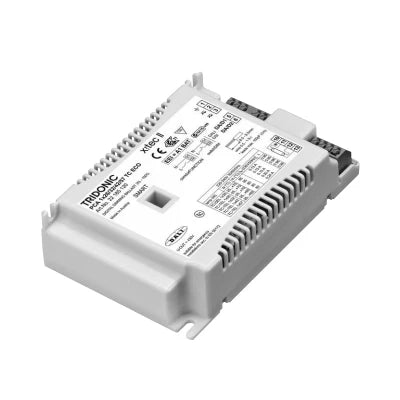

22185122 PCA 1x18 TC ECO Y II

22185122  PCA 1x18 TC ECO Y II

Product description
• Processor-controlled ballast with y II inside
• Highest possible energy class CELMA EEI = A1 BAT1
• Noise-free precise control via DALI or
DSI signal, switchDIM or corridorFUNCTION
• Nominal life up to 100,000 h (at ta 50 °C
with a failure rate max. 0.2 % per 1,000 h)
• OEM-specific reserved memory areas
• 5-year guarantee
Interfaces
• DALI
• DSI
• switchDIM (with memory function + selectable dimming rate)
• corridorFUNCTION (3 preprogrammed profiles)
• Integrated SMART interface for function with
SMART Sensor 5D 19f and corridorFUNCTION plugs
Functions
• Intelligent Temperature Guard (overtemperature protection)
• Intelligent Voltage Guard (overvoltage indication
and undervoltage shutdown)
• Optimum filament heating in any dimmer setting
• Disconnection of filament heating from a dimming level of approx.
90 % for maximum energy efficiency (SMART-Heating concept)
• corridorFUNCTION with ambient light control
• Automatically triggered emergency lighting value in DC mode, 15 %
• For emergency lighting systems as per EN 50172
• Automatic start after replacement of defective lamps
• Automatic shutdown if the lamp is faulty
È
Standards, page 3
Wiring diagrams and installation examples,
