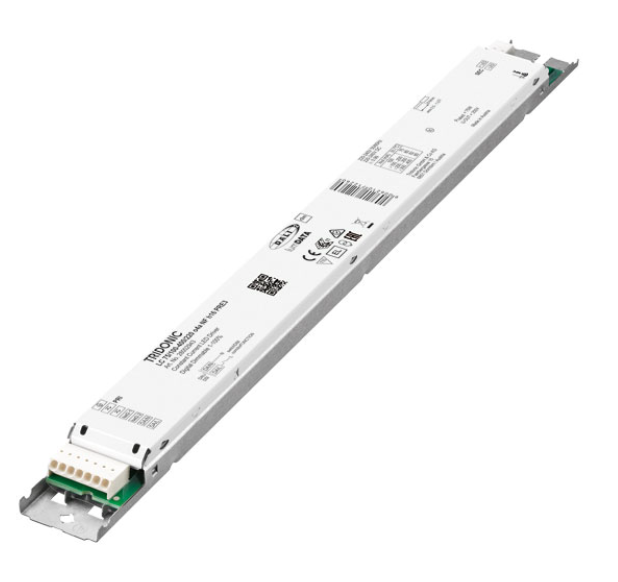

28002943

Product description
_ NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
_ Dimmable built-in constant current LED driver
_ Dimming range 1 to 100 %
_ For luminaires of protection class I and protection class II
_ Output current adjustable between 100 – 400 mA
_ Max. output power 75 W
_ Up to 92 % efficiency
_ Power input on stand-by < 0.16 W
_ Nominal lifetime up to 100,000 h
_ 5 years guarantee (conditions at
https://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)
Housing properties
_ Low profile metal casing with white cover
_ Only 16 mm housing height
_ Type of protection IP20
Interfaces
_ Near field communication (NFC)
_ one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
_ ready2mains (configuration and dimming via mains)
_ Terminal blocks: 0° push terminals
Functions
_ Adjustable output current in 1-mA-steps (NFC, DALI,
ready2mains) or with resistor plug (I-SELECT 2)
_ Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting)
and 253 (Diagnostics & Maintenance)
_ Constant light output function (CLO)
_ Power-up fading at AC
_ Switch off the driver with fade2zero
_ Protective features (overtemperature, short-circuit, overload, noload, input voltage range, reduced surge amplification)
_ Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
_ Flexible configuration via companionSUITE
_ Application-oriented operating window for maximum
compatibility
_ Best energy savings due to low stand-by losses and high
efficiency
