Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED driver Output current adjustable between 100 – 400 mA Dimming range 1 to 100 % For luminaires of protection class I and protection class II Max. output power 75 W Up to 92 % efficiency Power input on stand-by < 0.15 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications replacement for the 28000134

Read more less

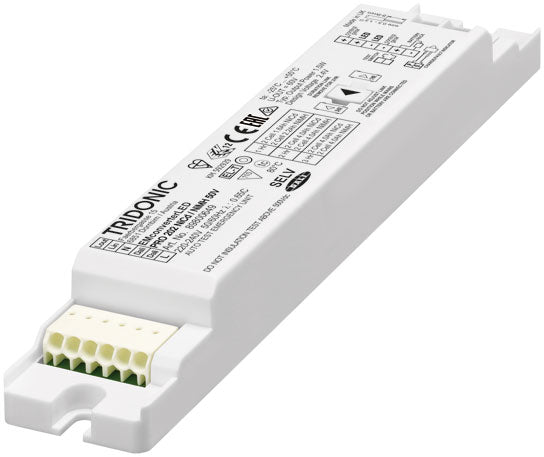

Self-contained emergency lighting LED driver with DALI interface Non maintained operation For LED modules with a forward voltage of 10 – 54 V SELV for output voltage < 60 V DC For luminaire installation Compatible with Tridonic's LLE FLEX modules (ADV, EXC) EM = Emergency Nominal lifetime up to 100,000 h

Read more less

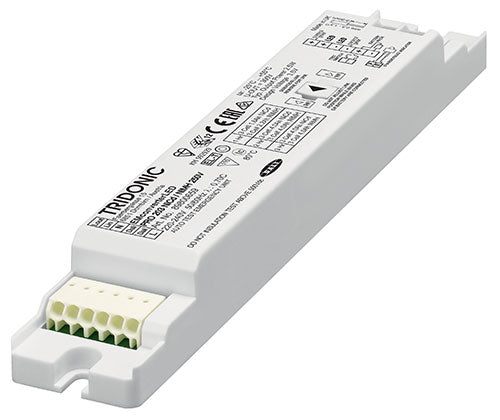

EM converterLED 204 PRO NiCd/NiMH 250 V PRO version Note: Supply of control gear with duration link in 3 hours position. Remove duration link for duration of 1 h. Duration link must be set before battery and mains connection. Product description Self-contained emergency lighting LED driver with DALI interface Non maintained operation For LED modules with a forward voltage of 48 – 250 V For luminaire installation Nominal lifetime up to 100,000 h 5 years guarantee Functions 1, 2 or 3 h rated duration selectable with duration link Constant power output Self-test: Weekly function test Yearly duration test Driver compatibility 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver For further information see datasheet, LED driver compatibility Battery management Intelligent charge system Deep discharge protection Polarity reversal protection for battery Batteries NiCd or NiMH batteries 4 year design life 1 year guarantee For battery compatibility refer to datasheet, battery selection

Read more less

Picture is of the 2 cell version, a 3 cell will be supplied   Product description _ High-temperature NiCd cells for use with emergency lighting unit _ 4 year design life _ 1 year guarantee from delivery date Properties _ Constant high-temperature operation – depending on the emergency lighting unit used (refer to respective emergency control gear data sheet) _ Good charging properties at high temperature _ High energy maintenance of the charged battery _ Certified quality manufacturer _ In various configurations _ Simple connection with blade terminal respectively plug terminal _ With polycarbonate fixing caps and connecting cable _ Electrical connection with mounted end caps possible _ Suitable for emergency lighting equipment as per IEC 60598-2-22

Read more less

Driver LCA 50W 100–400mA one4all lp PRE premium series non-SELV Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED Driver Output current adjustable between 100 – 400 mA Dimming range 1 to 100 % For luminaires of protection class I and protection class II Max. output power 50 W Up to 92 % efficiency Power input on stand-by < 0.15 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the Driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Intelligent Voltage Guard (overvoltage and undervoltage monitoring) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

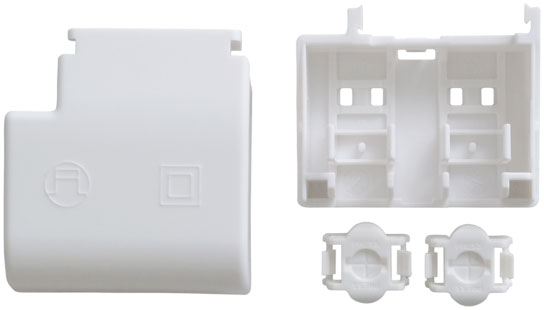

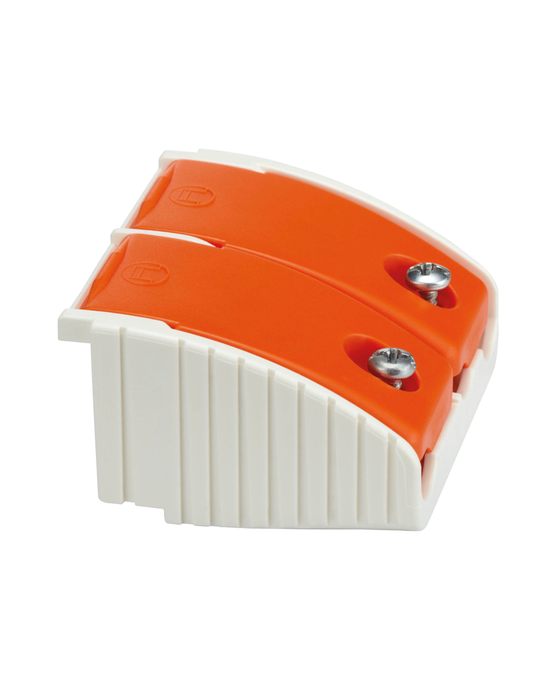

Tridonic 28001168 Strain-relief set 43x30mm

Read more less

Product description Self-contained emergency lighting LED driver with DALI interface Non maintained operation For LED modules with a forward voltage of 10 – 54 V SELV for output voltage < 60 V DC For luminaire installation Compatible with Tridonic's LLE FLEX modules (ADV, EXC) EM = Emergency Nominal lifetime up to 100,000 h 5 years guarantee (conditions at www.tridonic.com) Show more Article information Data sheet

Read more less

EM powerLED PRO EZ-3, 1 – 2 W Combined emergency lighting LED Driver 1 – 4 W Screw-fix Clip-fix Screw-fix Clip-fix Product description Emergency lighting LED Driver with DALI interface and automatic test function For self-contained emergency lighting SELV for output voltage < 60 V DC Low profile casing (21 x 30 mm cross-section) 5 years guarantee Properties Mains and emergency operation DALI interface for controlled testing and monitoring DALI switchable in mains operation (on/off); the switched phase SL must be switched on Constant current mode With either screw or clip fastening (clip-fix) 1, 2 or 3 h rated duration Selectable operating time (jumper) Output power limitation Two-colour status display LED Automatic restart after LED replacement Electronic multi-level charge system SELV classified (outputs powerLED, battery, status LED, test switch) Polarity reversal protection for battery Deep discharge protection Very low energy consumption from the battery after activation of the deep discharge protection Short-circuit-proof battery connection Addressing function, patented (“EZ easy addressing”) Emergency lighting LEDs available Tests: Status of the battery Status of the LED Charge condition Function test Duration test Batteries High-temperature cells 2 Ah NiMH batteries Cs cells 4 year design life 1 year guarantee For battery compatibility refer to data sheet

Read more less

Tridonic LC 75/1100-1400/54 flexC lp SNC4 28004144 Constant current LED driver for luminaire installation 3 pin DIP switch version valid from production date: 20.12.2024 For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Selectable fixed output current 1,100, 1,150, 1,200, 1,250, 1,300, 1,350 and 1,400 mA (pre-selected current 1,400 mA) Max. output power 75.6 W Up to 89 % efficiency Nominal lifetime up to 100,000 h

Read more less

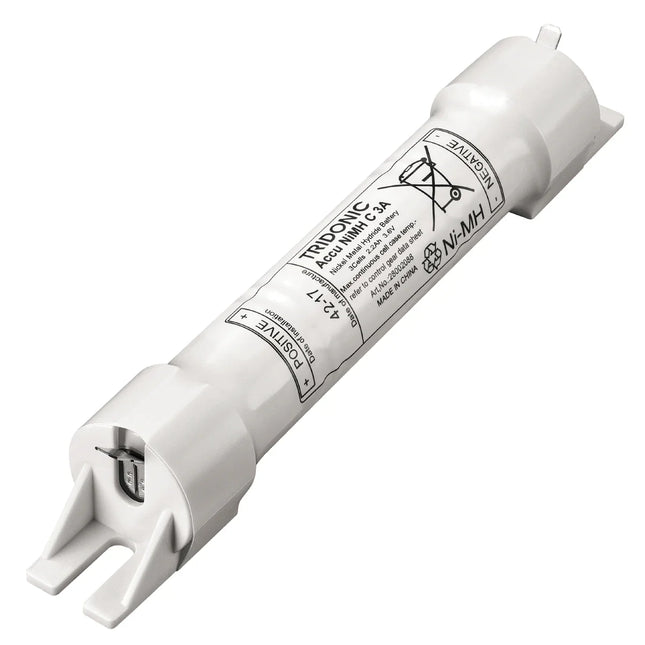

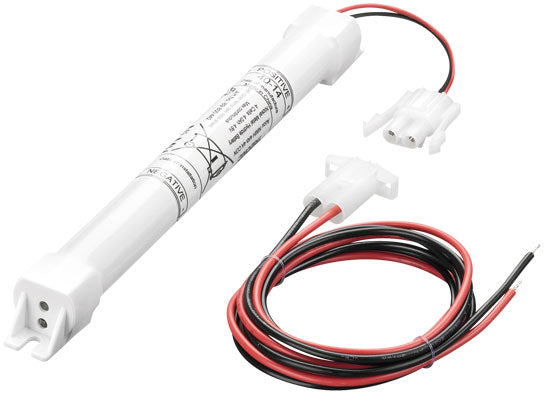

Product Details Nickel-Metal Hydride Battery with high--temperature NiMH cells for use with emergency lighting units. It has 4-year design life and it is cadmium free. Constant high-temperature operation – depending on the emergency lighting unit used. Good charging properties at high temperature. High energy maintenance of the charged battery. Simple connection with blade terminal. With polycarbonate fixing caps and connecting cable. Suitable for emergency lighting equipment as per IEC 60598-2-22. · 3 Cells · Stick formation · 2.2Ah capacity · 1 year guarantee from delivery date · 4 year design life · 1.2V per cell

Read more less

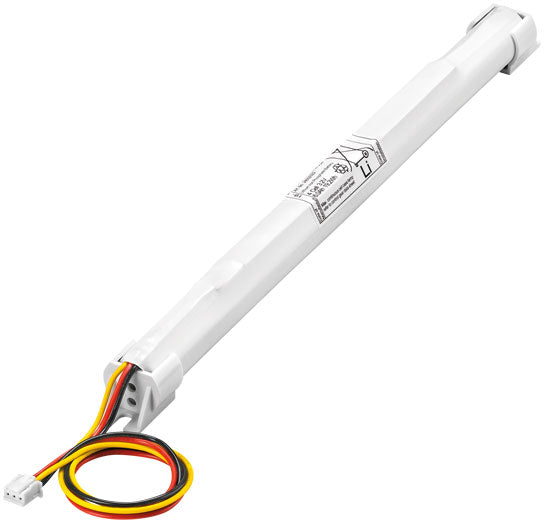

28002320  ACCU-LiFePO4 4.5Ah 3A CON EM batteries Product description_ High-temperature LiFePO4 cells only for use with Tridonicemergency lighting units_ Up to 8 year design life_ 5 years guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)Properties_ Environmental friendly technology_ High energy density_ Low profile cross-section with removable end caps_ Constant high-temperature operation_ Good charging properties at high temperature_ Electronic thermal battery management_ High energy maintenance of the charged battery_ Long shelf life_ Integrated electronics_ Safety features incorporated_ Certified quality manufacturer_ In various configurations_ Simple connection with plug-in system_ With polycarbonate fixing caps_ Suitable for emergency lighting equipment as per IEC 60598-2-22StickStick + Stick Side by sideWebsitehttp://www.tridonic.com/28002317

Read more less

Dimming range 1 to 100% Protection class IP20 5-year guarantee Flat metal housing with white cover Suitable for escape route lighting systems according to EN 50172 Switch-on fader with AC Nominal service life of up to 100,000 h Dimmable built-in constant current LED driver Up to 92% efficiency Power consumption in standby < 0.15 W Output current adjustable between 100 - 400 mA one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Connection terminals: 0° touch terminals Adjustable output current (DALI, ready2mains, I-select 2) Constant light output function ( CLO) Configurable via ready2mains service monitor for logging certain events Protective functions (overtemperature, short circuit, overload, no load, input voltage range, reduced surge amplification) Application-oriented operating window for maximum compatibility Best energy savings thanks to low standby losses and high efficiency Flexible configuration via DA LI, ready2mains and I-select 2 Reliability proven by a service life of up to 100,000 h and a 5-year guarantee For linear/area lighting in office applications Max. output power 75 W
