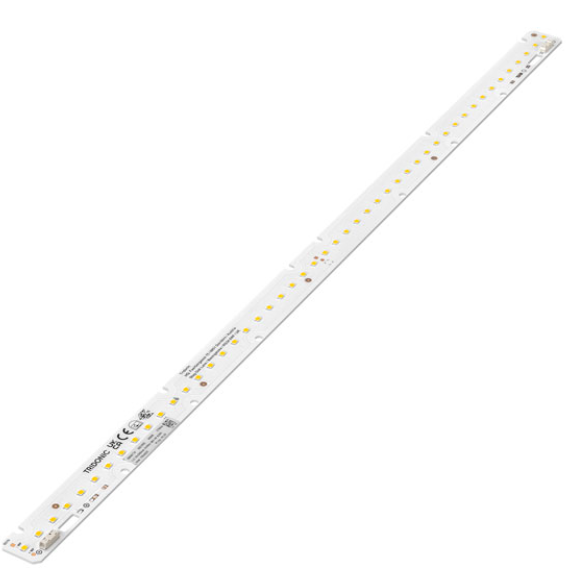

28004781 - LLE 24x560mm 2400lm 940 HV ADV6

Product description
_ Ideal for linear and panel lights
_ 2 terminals for serial wiring
_ Perfectly uniform light, even if several LED modules are used
together in a line
_ Push terminals for quick and simple wiring of LED module to LED
module
_ Broad portfolio from extruded lenses and covers available
_ HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output
_ Min. order quantity LLE 24x70mm QTY4: 36 pcs. The LLE
24x70mm QTY4 module contains 4 single 24x70mm modules
which have to be separated
_ Long lifetime up to 102,000 hours
_ 5 years guarantee (conditions at
https://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)
Optical properties
_ Colour temperatures 2,700, 3,000, 3,500 and 4,000 K
_ Efficacy of the LED module 172 lm/W at Irated and tp = 25 °C
_ High colour rendering index CRI > 90
_ High colour consistency (MacAdam 3) 1
_ Small luminous flux tolerances
Mechanical properties
_ Module dimension 24 x 70 mm, 24 x 140 mm, 24 x 280 mm and 24
x 560 mm (ZHAGA compliant)
_ Simple installation via clips or screws
