Description

Product description

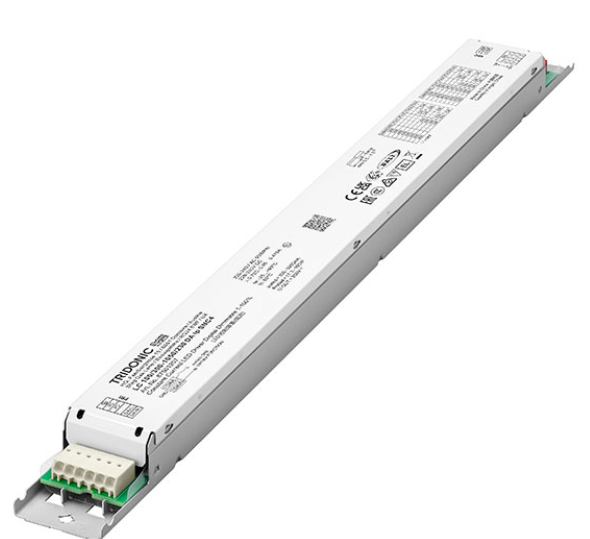

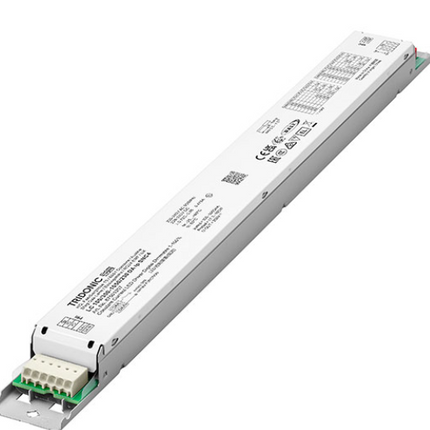

_ Dimmable built-in constant current LED driver
_ For luminaires of protection class I and protection class II
_ Temperature protection as per EN 61347-2-13 C5e
_ Adjustable output current via dip switch or DALI
_ Selectable fixed output current 300, 350, 400, 450, 500, 550, 600,
650, 700, 750, 800, 850, 900, 950, 1000 and 1050 mA (preselected current 300 mA)
_ Max. output power 100 W
_ Up to 93 % efficiency
_ Anti-glowing design
_ Nominal lifetime of 100,000 h
_ 5 years guarantee (conditions at
https://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)
Housing properties
_ Low profile metal casing with white cover
_ Type of protection IP20
Interfaces
_ one4all (DALI-2, switchDIM, corridorFUNCTION)
_ Terminal blocks: 0° push terminals
Functions
_ Adjustable output current in 1-mA-steps (DALI)
_ Constant light output function (CLO)
_ Protective features (overtemperature, short-circuit, overload, noload)
_ Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
_ Flexible configuration via companionSUITE (DALI)
_ Application-oriented operating window for maximum
compatibility
_ Best energy savings due to low stand-by losses and high
efficiency

87501207

Product form

SKU: 87501207
Barcode: 87501207

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£18.00 Excl. VAT

(inc. 20% VAT): £21.60

    • Contact us to confirm availability
      Downloads

    Product description_ Dimmable built-in constant current LED driver_ For luminaires of protection class I and protection class II_ Temperature protection... Read more
