Description
June 2026 release.
Product description

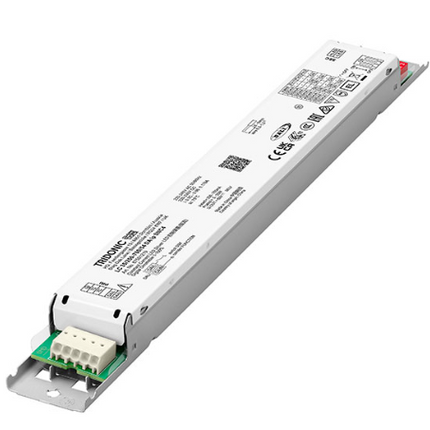

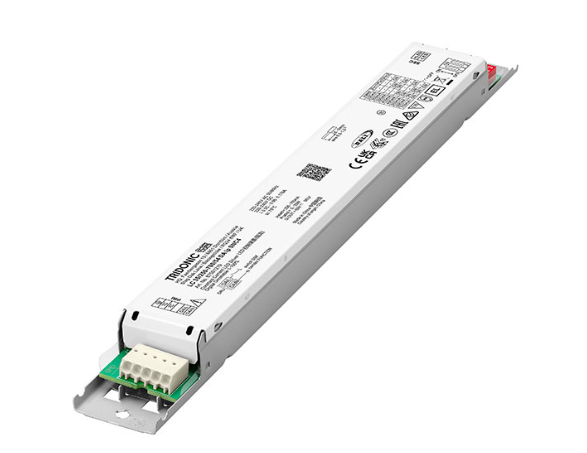

- Dimmable built-in constant current LED driver
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Adjustable output current via dip switch or DALI

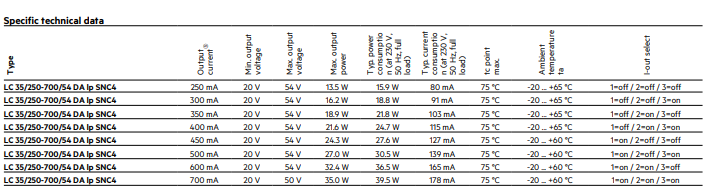

- Selectable fixed output current 250, 300, 350, 400, 450, 500, 600 and 700 mA (pre-selected current 250 mA)
- Max. output power 35 W
- Up to 88.5 % efficiency
- Nominal lifetime of 100,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)
Housing properties
- Low profile metal casing with white cover
- Type of protection IP20 Interfaces
- one4all (DALI-2, switchDIM, corridorFUNCTION)
- Terminal blocks: 0° push terminals
Functions
- Adjustable output current in 1-mA-steps (DALI)
- Constant light output function (CLO)
- Protective features (overtemperature, short-circuit, overload, noload)
- Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
- Flexible configuration via companionSUITE (DALI)
- Application-oriented operating window for maximum compatibility
- Best energy savings due to low stand-by losses and high efficiency
Typical applications
- For linear/area lighting
Website
http://www.tridonic.com/87501219
