Description
June 2026 release.
Product description

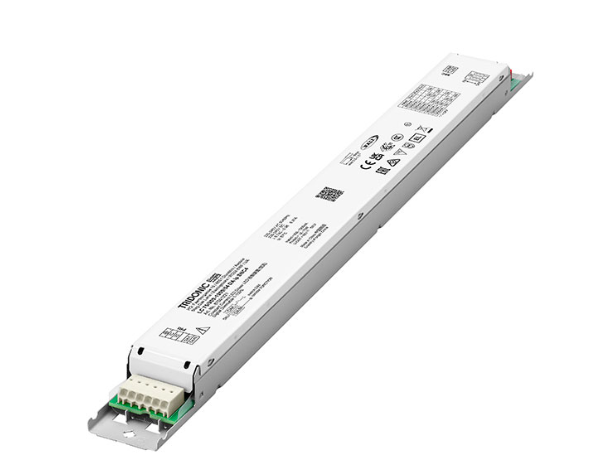

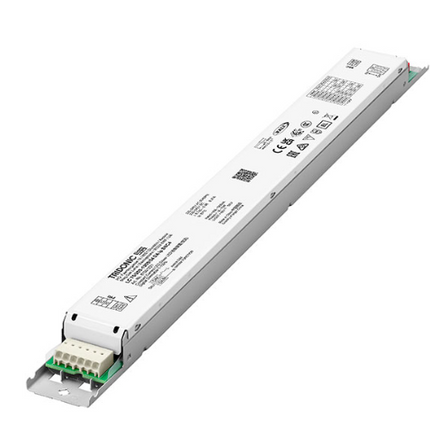

- Dimmable built-in constant current LED driver
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Adjustable output current via dip switch or DALI
- Selectable fixed output current 900, 1050, 1200, 1400, 1500, 1650, 1800 and 1900 mA (pre-selected current 900 mA)
- Max. output power 75 W
- Up to 90 % efficiency
- Nominal lifetime of 100,000 h
- 5 years guarantee (conditions at
https://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)
Housing properties
- Low profile metal casing with white cover
- Type of protection IP20
Interfaces
- one4all (DALI-2, switchDIM, corridorFUNCTION)
- Terminal blocks: 0° push terminals
Functions
- Adjustable output current in 1-mA-steps (DALI)
- Constant light output function (CLO)
- Protective features (overtemperature, short-circuit, overload, noload)
- Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
- Flexible configuration via companionSUITE (DALI)
- Application-oriented operating window for maximum compatibility
- Best energy savings due to low stand-by losses and high efficiency
Typical applications
- For linear/area lighting
Website
http://www.tridonic.com/87501221
