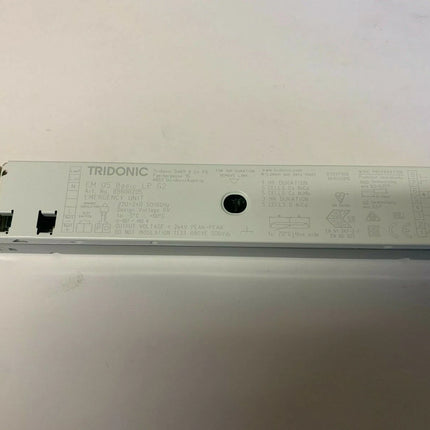

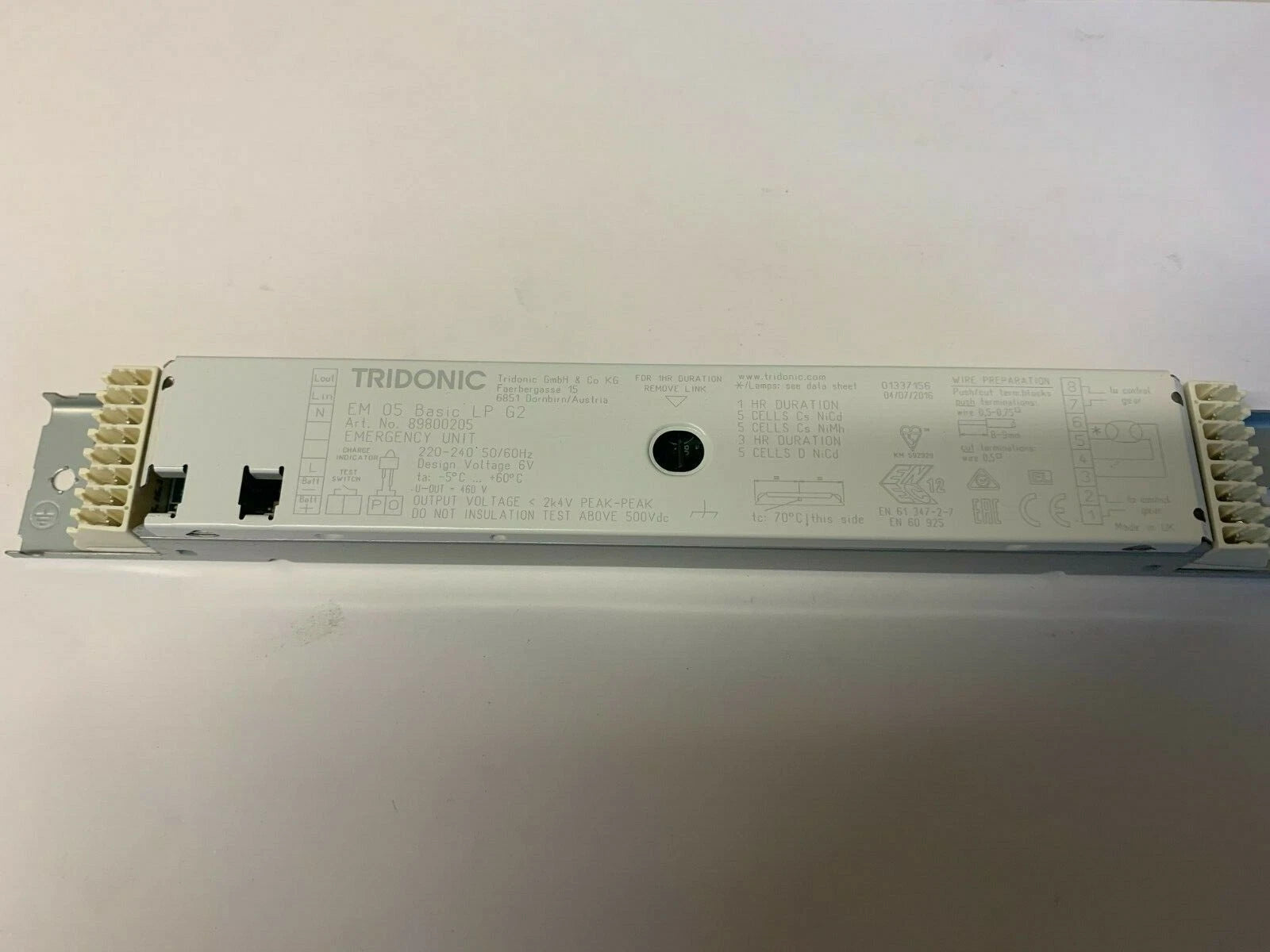

89800205 TRIDONIC EM 05 BASIC LP G2

 Emergency lighting supply unit for manual testing
• For linear and compact fluorescent lamps
• Low-profile casing (21 x 30 mm cross-section)
• 5-year guarantee
Properties
• Non maintained operation
• 1 or 3 h rated duration
• Operating time selectable with plug (duration link)
• Compatible with all electronic ballasts
(dimmable and non-dimmable)
• 5-pole technology: 4-pole lamp changeover
and delayed power switching for the ballast
• High-frequency ac operation of the lamp
• Gentle on the lamp thanks to preheated lamp start and permanent cathode heating in emergency mode
• 5.5 min. boost start for rapid heating of the lamp, more
light in the startup phase and optimum lamp life
• Power control technology ensures maximum emergency ballast
lumen factors (EBLF) for all lamps
• Green charge status display LED
• Electronic multi-level charge system
• „Rest mode“ function
• Deep discharge protection
• Very low energy consumption from the battery after activation of
the deep discharge protection
• Short-circuit-proof battery connection
• Polarity reversal protection for battery
Batteries
• High-temperature cells
• NiCd or NiMH batteries
• D- Cs- or LA cells
• 4-year design life
• 1-year guarantee
• For battery compatibility refer to chapter
„Ballast-Lumen-Factor (BLF)“
È
Standards, page 8
Wiring diagrams and installation examples, page 11
EM BASIC lp G2, 220 – 240 V 50/60 Hz
BASIC version TC-F TC-DD T5c
TC-L
TCDEL
TC-SEL
TC-TEL
T5 T8
PH
