89800312

Description

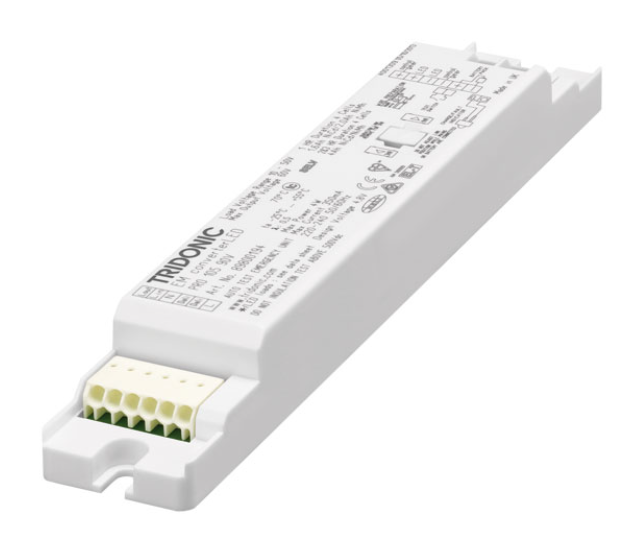

Product description_ Emergency lighting LED driver with DALI interface and automatic test function
_ For self-contained emergency lighting
_ For LED modules with a forward voltage of 50 – 200 V
_ Low profile casing (21 x 30 mm cross-section)
_ Nominal lifetime up to 50,000 h
_ 5 years guarantee (conditions at
https://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)
Properties
_ Non maintained operation
_ DALI interface for controlled testing and monitoring
_ 1, 2 or 3 h rated duration
_ Operating time selectable with plug (duration link)
_ For 2 h operation: first test 120 min, all other tests 90 min, rated
duration
_ Compatible with all dimmable and non-dimmable constant current
LED driver (see data sheet, LED driver compatibility)
_ 3-pole technology: 2-pole LED module changeover and delayed
power switching for the LED driver
_ Automatic shutdown of output if LED load is out of range
_ Constant power output
_ Maximum light output for all LED modules
_ Addressing function, patented (“EZ easy addressing”)
_ Two-colour status display LED
_ Electronic multi-level charge system
_ Intermittent charge for NiMH batteries (pulse charge)
_ “Rest mode” function
_ Deep discharge protection
_ Short-circuit-proof battery connection
_ Polarity reversal protection for battery
 Tests:
_ Status of the battery
_ Status of the LED
_ Charge condition
_ Function test
_ Duration test
Batteries
_ High-temperature cells
_ NiCd or NiMH batteries
_ D, Cs or LA cells
_ 4 year design life
_ 1 year guarantee (conditions at
https://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)
_ For battery compatibility refer to data sheet

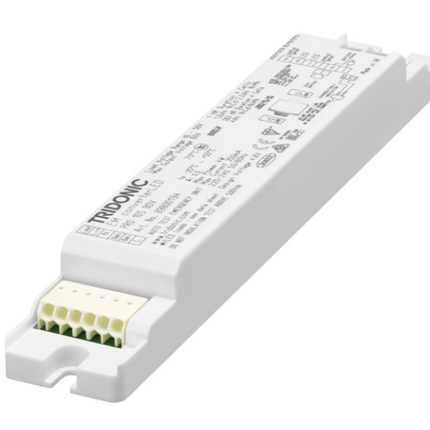

89800312

Product form

SKU: 89800312
Barcode: 89800312

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£65.00 Excl. VAT

(inc. 20% VAT): £78.00

    • Contact us to confirm availability
      Downloads

    Product description_ Emergency lighting LED driver with DALI interface and automatic test function_ For self-contained emergency lighting_ For LED modules with... Read more

    Description

    Product description_ Emergency lighting LED driver with DALI interface and automatic test function
    _ For self-contained emergency lighting
    _ For LED modules with a forward voltage of 50 – 200 V
    _ Low profile casing (21 x 30 mm cross-section)
    _ Nominal lifetime up to 50,000 h
    _ 5 years guarantee (conditions at
    https://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)
    Properties
    _ Non maintained operation
    _ DALI interface for controlled testing and monitoring
    _ 1, 2 or 3 h rated duration
    _ Operating time selectable with plug (duration link)
    _ For 2 h operation: first test 120 min, all other tests 90 min, rated
    duration
    _ Compatible with all dimmable and non-dimmable constant current
    LED driver (see data sheet, LED driver compatibility)
    _ 3-pole technology: 2-pole LED module changeover and delayed
    power switching for the LED driver
    _ Automatic shutdown of output if LED load is out of range
    _ Constant power output
    _ Maximum light output for all LED modules
    _ Addressing function, patented (“EZ easy addressing”)
    _ Two-colour status display LED
    _ Electronic multi-level charge system
    _ Intermittent charge for NiMH batteries (pulse charge)
    _ “Rest mode” function
    _ Deep discharge protection
    _ Short-circuit-proof battery connection
    _ Polarity reversal protection for battery
     Tests:
    _ Status of the battery
    _ Status of the LED
    _ Charge condition
    _ Function test
    _ Duration test
    Batteries
    _ High-temperature cells
    _ NiCd or NiMH batteries
    _ D, Cs or LA cells
    _ 4 year design life
    _ 1 year guarantee (conditions at
    https://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)
    _ For battery compatibility refer to data sheet
