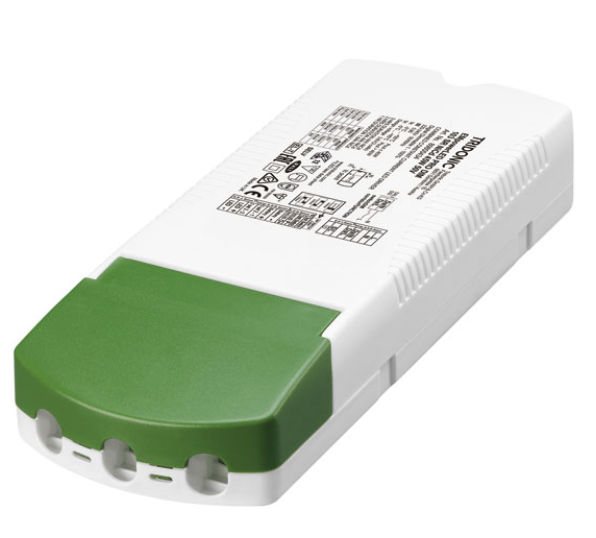

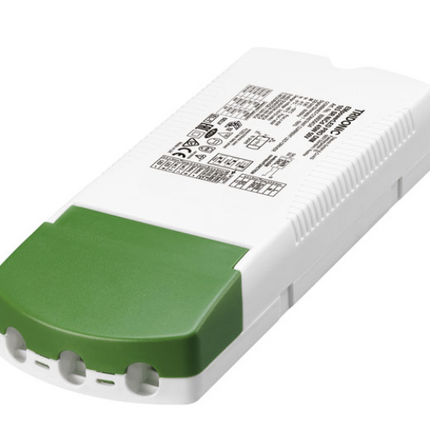

89800434 - DALI LED COMBO UNIT

Description

Product description

  • Independent dimmable LED driver
  • Emergency lighting LED driver with DALI interface and automatic test function
  • For self-contained emergency lighting
  • For LED modules with a forward voltage of 20 – 50 V
  • SELV for output voltage < 60 V DC
  • Compact plastic casing with strain relief
  • EM = Emergency

Properties

  • Output power 6 – 45 W
  • Constant current LED operation
  • 300 – 1,400 mA output current in mains operation, adjustable with I-SELECT 2 PLUG in steps of 25 mA or via DALI in steps of 1 mA
  • Integrated emergency lighting unit
  • 1, 2 or 3 h rated duration
  • Operating time selectable with dip switch (2-way)
  • Automatic shutdown of output if the forward voltage of the LED is out of range
  • Two-colour status display LED
  • Electronic multi-level charge system
  • Pulse current charging for NiMH batteries
  • Polarity reversal protection for battery
  • Power-up fading at AC
  • Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
  • Deep discharge protection
  • Short-circuit-proof battery connection
  • 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)

Interfaces

  • one4all (DALI DT 1 & 6, DSI, switchDIM, corridorFUNCTION)
  • Terminal blocks: 45° push terminals

Batteries

89800434 - DALI LED COMBO UNIT

Product form

SKU: 89800434
Barcode: 89800434

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£75.00 Excl. VAT

(inc. 20% VAT): £90.00

    • Contact us to confirm availability
      Downloads

    Product description Independent dimmable LED driver Emergency lighting LED driver with DALI interface and automatic test function For self-contained emergency... Read more

    Description

    Product description

    • Independent dimmable LED driver
    • Emergency lighting LED driver with DALI interface and automatic test function
    • For self-contained emergency lighting
    • For LED modules with a forward voltage of 20 – 50 V
    • SELV for output voltage < 60 V DC
    • Compact plastic casing with strain relief
    • EM = Emergency

    Properties

    • Output power 6 – 45 W
    • Constant current LED operation
    • 300 – 1,400 mA output current in mains operation, adjustable with I-SELECT 2 PLUG in steps of 25 mA or via DALI in steps of 1 mA
    • Integrated emergency lighting unit
    • 1, 2 or 3 h rated duration
    • Operating time selectable with dip switch (2-way)
    • Automatic shutdown of output if the forward voltage of the LED is out of range
    • Two-colour status display LED
    • Electronic multi-level charge system
    • Pulse current charging for NiMH batteries
    • Polarity reversal protection for battery
    • Power-up fading at AC
    • Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
    • Deep discharge protection
    • Short-circuit-proof battery connection
    • 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)

    Interfaces

    • one4all (DALI DT 1 & 6, DSI, switchDIM, corridorFUNCTION)
    • Terminal blocks: 45° push terminals

    Batteries
