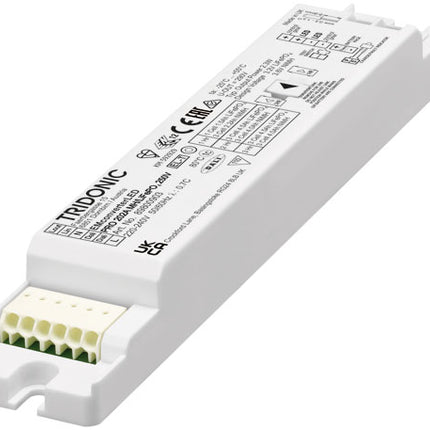

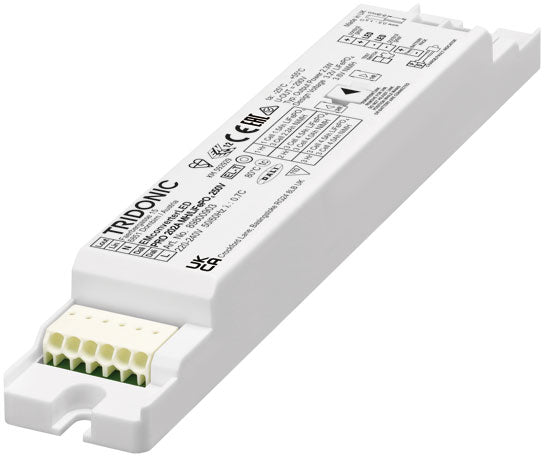

89800903 EMconverterLED PRO 202A MH/LiFePO4 250V

Description



Product description

  • Emergency lighting LED driver with DALI-2 interface and automatic test function
  • For self-contained emergency lighting
  • For LED modules with a forward voltage of 50 – 250 V
  • Low profile casing (21 x 30 mm cross-section)
  • For luminaire installation
  • EM = Emergency
  • Nominal lifetime up to 100,000 h
  • 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
  • Properties
    _ Non maintained operation
    _ DALI-2 interface for controlled testing and monitoring
    _ 1, 2 or 3 h rated duration
    _ Operating time selectable with plug (duration link)
    _ Compatible with most constant current LED drivers (see data
    sheet, LED driver compatibility)
    _ 3-pole technology: 2-pole LED module changeover and delayed
    power switching for the LED driver
    _ Automatic shutdown of output if LED load is out of range
    _ Constant power output
    _ Two-colour status display LED
    _ Electronic charge system
    _ Deep discharge protection
    _ Short-circuit-proof battery connection
    _ Polarity reversal protection for battery provided by 3-pole
    connector
    _ Automatic detection of the connected battery technology (NiMH
    or LiFePO4 batteries)
     Self-test:
    _ Status of the battery
    _ Status of the LED
    _ Function test
    _ Duration test
    Batteries
    _ High-temperature cells
    _ NiMH or LiFePO4 batteries
    _ LA or 18650 cells
    _ NiMH: 4 years design life / 2 years guarantee (conditions at
    https://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)
    _ LiFePO4: up to 12 years design life
    _ 8 years guarantee for LiFePO4 batteries (conditions at
    https://www.tridonic.com/en/int/services/manufacturerguarantee-conditions) 1
    _ LiFePO4 batteries with Tridonic LiFeGuard
    _ For battery compatibility refer to data sheet, battery selection
    1 28005859 - 5-year guarantee. 28006323 und 28006324 - 4-year guarantee

89800903 EMconverterLED PRO 202A MH/LiFePO4 250V

Product form

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£50.00 Excl. VAT

(inc. 20% VAT): £60.00

    • Contact us to confirm availability
      Downloads

      Product description Emergency lighting LED driver with DALI-2 interface and automatic test function For self-contained emergency lighting For LED... Read more

    Description



    Product description

    • Emergency lighting LED driver with DALI-2 interface and automatic test function
    • For self-contained emergency lighting
    • For LED modules with a forward voltage of 50 – 250 V
    • Low profile casing (21 x 30 mm cross-section)
    • For luminaire installation
    • EM = Emergency
    • Nominal lifetime up to 100,000 h
    • 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
    • Properties
      _ Non maintained operation
      _ DALI-2 interface for controlled testing and monitoring
      _ 1, 2 or 3 h rated duration
      _ Operating time selectable with plug (duration link)
      _ Compatible with most constant current LED drivers (see data
      sheet, LED driver compatibility)
      _ 3-pole technology: 2-pole LED module changeover and delayed
      power switching for the LED driver
      _ Automatic shutdown of output if LED load is out of range
      _ Constant power output
      _ Two-colour status display LED
      _ Electronic charge system
      _ Deep discharge protection
      _ Short-circuit-proof battery connection
      _ Polarity reversal protection for battery provided by 3-pole
      connector
      _ Automatic detection of the connected battery technology (NiMH
      or LiFePO4 batteries)
       Self-test:
      _ Status of the battery
      _ Status of the LED
      _ Function test
      _ Duration test
      Batteries
      _ High-temperature cells
      _ NiMH or LiFePO4 batteries
      _ LA or 18650 cells
      _ NiMH: 4 years design life / 2 years guarantee (conditions at
      https://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)
      _ LiFePO4: up to 12 years design life
      _ 8 years guarantee for LiFePO4 batteries (conditions at
      https://www.tridonic.com/en/int/services/manufacturerguarantee-conditions) 1
      _ LiFePO4 batteries with Tridonic LiFeGuard
      _ For battery compatibility refer to data sheet, battery selection
      1 28005859 - 5-year guarantee. 28006323 und 28006324 - 4-year guarantee
