Driver LC 35W 24V bDW SC PRE2 premium series 24 V – dimmable (IP20)

Description

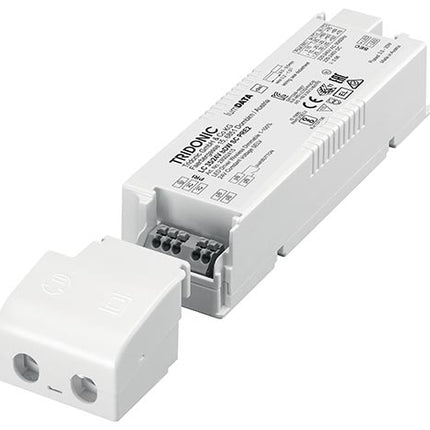

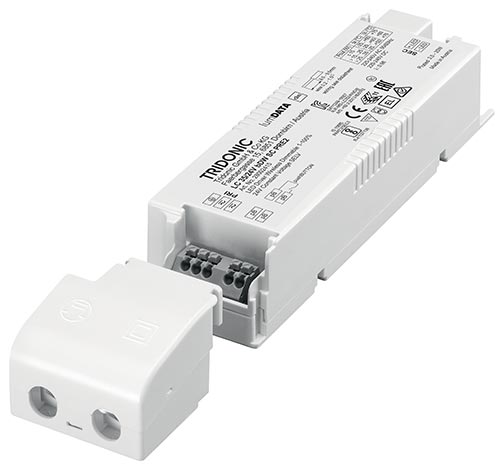

Driver LC 35W 24V bDW SC PRE2

premium series 24 V – dimmable (IP20)

  • With strain-relief

    With strain-relief

Product description

  • NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
  • Dimmable 24 V constant voltage LED driver for flexible constant voltage strips
  • Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
  • The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging.
  • basicDIM Wireless enables different dimming options
  • Forms automatically a wireless communication network with up to 250 nodes
  • Dimming range 1 to 100 %
  • No additional external dimmer is needed
  • Suitable for emergency escape lighting systems acc. to EN 50172
  • Nominal lifetime up to 50,000 h
  • 5 years guarantee

Typical applications

  • Cove lighting, facade accent lighting, ceiling integration

Technical details

  • 24 V, 35 W
  • Small design (195 x 43 x 30.2 mm) with stretched-compact strain relief
  • Small cross section
  • Push terminals for simple wiring
  • 1 output channel (+/–)

Interfaces

  • basicDIM Wireless
  • ready2mains (configuration via mains)
  • Terminal blocks: 45° push terminals

System solution

  • Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m
  • Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m
  • In connection with Flex accessories wire to PCB plug
  • Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly



Data sheet



Driver LC 35W 24V bDW SC PRE2 premium series 24 V – dimmable (IP20)

Product form

SKU: 28002415
Barcode: 28002415

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£77.73 Excl. VAT

(inc. 20% VAT): £93.28

    • Contact us to confirm availability
      Downloads

    Driver LC 35W 24V bDW SC PRE2 premium series 24 V – dimmable (IP20) With strain-relief Product description NEW: lumDATA... Read more

    Description

    Driver LC 35W 24V bDW SC PRE2

    premium series 24 V – dimmable (IP20)

    • With strain-relief

      With strain-relief

    Product description

    • NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
    • Dimmable 24 V constant voltage LED driver for flexible constant voltage strips
    • Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
    • The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging.
    • basicDIM Wireless enables different dimming options
    • Forms automatically a wireless communication network with up to 250 nodes
    • Dimming range 1 to 100 %
    • No additional external dimmer is needed
    • Suitable for emergency escape lighting systems acc. to EN 50172
    • Nominal lifetime up to 50,000 h
    • 5 years guarantee

    Typical applications

    • Cove lighting, facade accent lighting, ceiling integration

    Technical details

    • 24 V, 35 W
    • Small design (195 x 43 x 30.2 mm) with stretched-compact strain relief
    • Small cross section
    • Push terminals for simple wiring
    • 1 output channel (+/–)

    Interfaces

    • basicDIM Wireless
    • ready2mains (configuration via mains)
    • Terminal blocks: 45° push terminals

    System solution

    • Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m
    • Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m
    • In connection with Flex accessories wire to PCB plug
    • Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly



    Data sheet
