Visit the Ecopac Power range

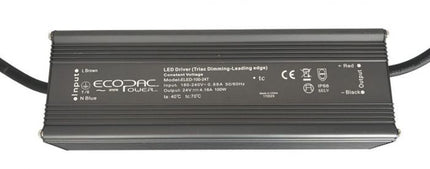

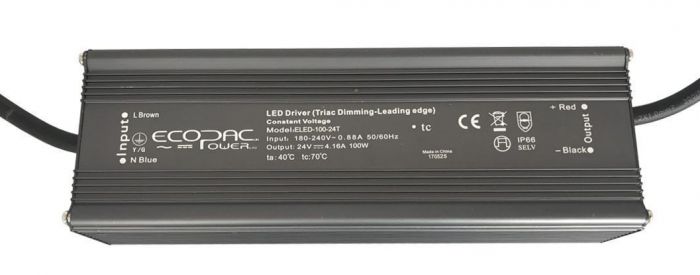

ELED-100P-TS - Ecopac Power ELED-100P-T Series Triac Dimmable LED Driver 100W 12-24V
£92.29
In stock / available to order
Constant Voltage Design 12V or 24V Output
Dimmable using leading edge & trailing edge Triac Dimmers
PWM Output
3 Years warranty
More Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage Choose Option Dimmable (Type) Triac Leading edge & Trailing edge Dimensions 230x70x46mm EMC Standards EMI according to EN55015, EMS according to EN61000-3-2; EN61000-3-3 Input Voltage 180-264VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-100P-T.pdf
More Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage Choose Option Dimmable (Type) Triac Leading edge & Trailing edge Dimensions 230x70x46mm EMC Standards EMI according to EN55015, EMS according to EN61000-3-2; EN61000-3-3 Input Voltage 180-264VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-100P-T.pdf
Need help confirming compatibility?
Send us the existing part number or a photo and our technical team can help identify a suitable replacement.
