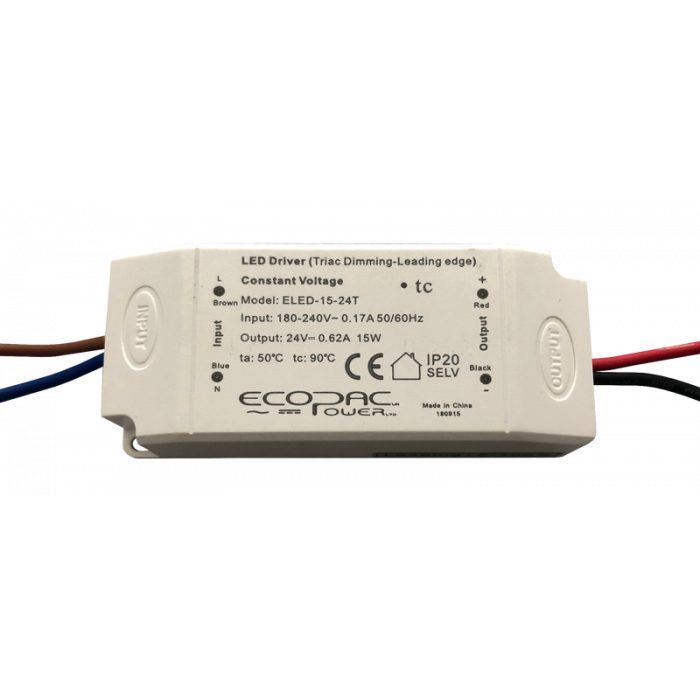

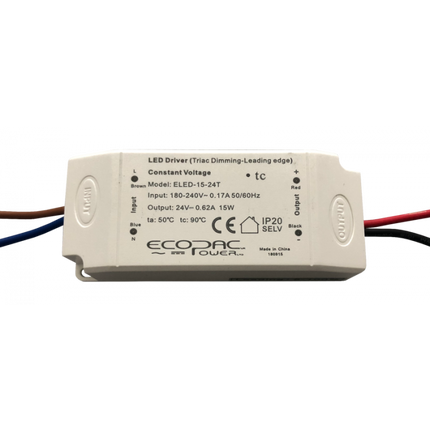

ELED-15-24T - Ecopac ELED-15-24T Triac Dimmable LED Driver 24V 15W

Description

The Ecopac ELED-15-24T is a compact, 15W triac dimmable LED driver with constant voltages output of 24V DC. The compact lightweight design make it ideally suited when space is at a premium.  Triac leading edge dimming makes for easy installation as dimming is controlled from the mains input. Works with many dimmer but is optimised to work with EcoDim triac dimming modules.  Features: Suitable for triac leading edge dimming Constant voltage High efficiency up to 80% Protections: Short circuit / Over loading / Over current Cooling by free air convention Lightweight plastic case
More Information Manufacturer Ecopac Power Output Wattage (W) 15 Output Voltage 24V Dimmable (Type) Leading edge, Triac DC Output Adjustment No Dimensions 370 x 230 x 160 mm EMC Standards EN61000-3-2,3 (>60%loading) Input Voltage 180-240 VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40°C - +70°C PDF Datasheet ELED-15-T.PDF

ELED-15-24T - Ecopac ELED-15-24T Triac Dimmable LED Driver 24V 15W

Product form

SKU: ELED-15-24T

Trade price available - contact us

£26.58 Excl. VAT

(inc. 20% VAT): £31.90

    • Contact us to confirm availability
      Downloads

    The Ecopac ELED-15-24T is a compact, 15W triac dimmable LED driver with constant voltages output of 24V DC. The compact... Read more

    Description

    The Ecopac ELED-15-24T is a compact, 15W triac dimmable LED driver with constant voltages output of 24V DC. The compact lightweight design make it ideally suited when space is at a premium.  Triac leading edge dimming makes for easy installation as dimming is controlled from the mains input. Works with many dimmer but is optimised to work with EcoDim triac dimming modules.  Features: Suitable for triac leading edge dimming Constant voltage High efficiency up to 80% Protections: Short circuit / Over loading / Over current Cooling by free air convention Lightweight plastic case
    More Information Manufacturer Ecopac Power Output Wattage (W) 15 Output Voltage 24V Dimmable (Type) Leading edge, Triac DC Output Adjustment No Dimensions 370 x 230 x 160 mm EMC Standards EN61000-3-2,3 (>60%loading) Input Voltage 180-240 VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40°C - +70°C PDF Datasheet ELED-15-T.PDF
