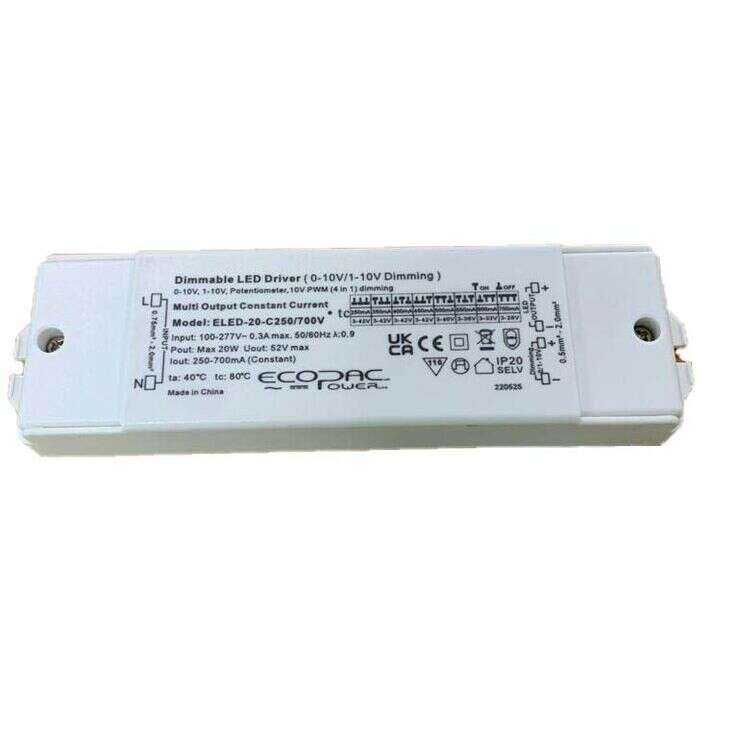

ELED-20-C250/700V 1-10V Dimmable

Description

ELED-20-C250/700V Series Features:

https://www.ecopacpower.co.uk/assets/pdf/ELED-20-C250-700V_2022-06-20-143631.pdf

Features:

• Constant Current mode output with multiple levels selectable by dip switch

• 0/1-10V Dimming Control

• AC input: 100-277VAC

• Built-in active PFC function

• Efficiency up to 81%

• Protections: Short circuit/ Over load/Over temperature

• Cooling by free air convection

Wattage 20.1 19.8 19.8 20 18.9 16.8 14.7 10.5
Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC
Output Current 700mA 600mA 550mA 500mA 450mA 400mA 350mA 250mA
Output Voltage Options 3~29 3~33 3~36 3~40 3~42 3~42 3~42 3~42
Dimensions 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm
Working Temperature -40~+80°C
Safety Standards EN61347-1, EN61347-2-13, UL8750
EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

ELED-20-C250/700V 1-10V Dimmable

Product form

SKU: ELED-20-C250700V

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£29.23 Excl. VAT

(inc. 20% VAT): £35.08

    • Contact us to confirm availability
      Downloads

    ELED-20-C250/700V Series Features: https://www.ecopacpower.co.uk/assets/pdf/ELED-20-C250-700V_2022-06-20-143631.pdf Features: • Constant Current mode output with multiple levels selectable by dip switch • 0/1-10V Dimming... Read more

    Description

    ELED-20-C250/700V Series Features:

    https://www.ecopacpower.co.uk/assets/pdf/ELED-20-C250-700V_2022-06-20-143631.pdf

    Features:

    • Constant Current mode output with multiple levels selectable by dip switch

    • 0/1-10V Dimming Control

    • AC input: 100-277VAC

    • Built-in active PFC function

    • Efficiency up to 81%

    • Protections: Short circuit/ Over load/Over temperature

    • Cooling by free air convection

    Wattage 20.1 19.8 19.8 20 18.9 16.8 14.7 10.5
    Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC
    Output Current 700mA 600mA 550mA 500mA 450mA 400mA 350mA 250mA
    Output Voltage Options 3~29 3~33 3~36 3~40 3~42 3~42 3~42 3~42
    Dimensions 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm
    Working Temperature -40~+80°C
    Safety Standards EN61347-1, EN61347-2-13, UL8750
    EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B
