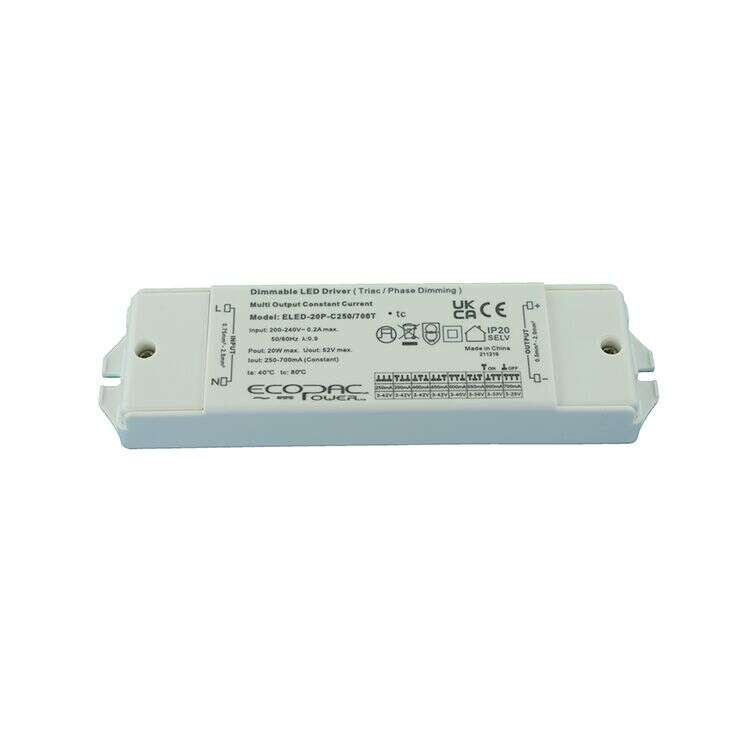

ELED-20P-C250-700T Constant Current LED Drivers 10.5–20.3W

Description

ELED-20P-C250-700T Series Features:

Features:

• Constant Current mode output with multiple levels selectable by dip switch

• Dimming function: Triac/phase cut dimming

• Work with leading or trailing edge Triac dimmer

• (ON key: leading edge; 1 key: trailing edge)

• AC input: 200-240VAC

• Built-in active PFC function

• Efficiency up to 78%

• IP20 design for indoor installation

• Full protection plastic housing easy installation

• Protections: Short circuit/ Over load

• Cooling by free air convection

• Suitable for LED lighting and moving sign applications

• Strong compatibility, flicker-free dimming

Wattage 20.3 19.8 19.8 20 18.9 16.8 14.7 10.5
Input Voltage 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC
Output Current 700 600 550 500 450 400 350 250
Output Voltage 3~29 3~33 3~36 3~40 3~42 3~42 3~42 3~42
Dimensions 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm
Working Temperature -40~60°C
Safety Standards EN61347-1, EN61347-2-13, UL8750
EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

ELED-20P-C250-700T Constant Current LED Drivers 10.5–20.3W

Product form

SKU: ELED-20PC250700T

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£26.62 Excl. VAT

(inc. 20% VAT): £31.94

    • Contact us to confirm availability
      Downloads

    ELED-20P-C250-700T Series Features: Features: • Constant Current mode output with multiple levels selectable by dip switch • Dimming function: Triac/phase... Read more

    Description

    ELED-20P-C250-700T Series Features:

    Features:

    • Constant Current mode output with multiple levels selectable by dip switch

    • Dimming function: Triac/phase cut dimming

    • Work with leading or trailing edge Triac dimmer

    • (ON key: leading edge; 1 key: trailing edge)

    • AC input: 200-240VAC

    • Built-in active PFC function

    • Efficiency up to 78%

    • IP20 design for indoor installation

    • Full protection plastic housing easy installation

    • Protections: Short circuit/ Over load

    • Cooling by free air convection

    • Suitable for LED lighting and moving sign applications

    • Strong compatibility, flicker-free dimming

    Wattage 20.3 19.8 19.8 20 18.9 16.8 14.7 10.5
    Input Voltage 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC
    Output Current 700 600 550 500 450 400 350 250
    Output Voltage 3~29 3~33 3~36 3~40 3~42 3~42 3~42 3~42
    Dimensions 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm 159 x 43x 20 mm
    Working Temperature -40~60°C
    Safety Standards EN61347-1, EN61347-2-13, UL8750
    EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B
