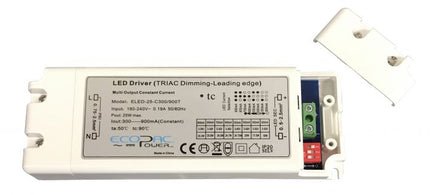

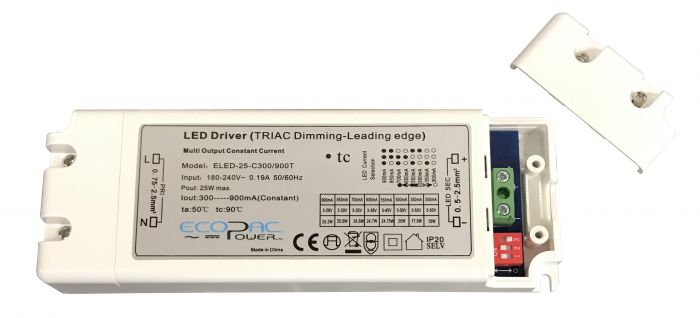

ELED-25-C300/900T - ECOPAC Constant Current LED Driver ELED-25-C300/900T

Description

Constant current mode output Multiple levels selectable by dip switch Protections: Short circuit/ Over load/ Over Current Other features: Full protection housing east installation IP20 design for indoor installation Cooling by free air convection Dimming function : Triac dimmable phase cut dimmable 3 years warranty
More Information Manufacturer Ecopac Power Output Wattage (W) 25 Output Current Choose Option Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment 300-900mA Dimensions 155x 54x 20 EMC Standards Compliance to EN61000-4,2,3,4,5,6,11, EN61547, A light industry level ( surge 4KV ) Input Voltage 180-240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature Tcase= -40~+60°C PDF Datasheet ELED-25-CT.pdf

ELED-25-C300/900T - ECOPAC Constant Current LED Driver ELED-25-C300/900T

Product form

SKU: ELED-25-C300/900T

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£35.88 Excl. VAT

(inc. 20% VAT): £43.06

    • Contact us to confirm availability
      Downloads

    Constant current mode output Multiple levels selectable by dip switch Protections: Short circuit/ Over load/ Over Current Other features: Full... Read more

    Description

    Constant current mode output Multiple levels selectable by dip switch Protections: Short circuit/ Over load/ Over Current Other features: Full protection housing east installation IP20 design for indoor installation Cooling by free air convection Dimming function : Triac dimmable phase cut dimmable 3 years warranty
    More Information Manufacturer Ecopac Power Output Wattage (W) 25 Output Current Choose Option Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment 300-900mA Dimensions 155x 54x 20 EMC Standards Compliance to EN61000-4,2,3,4,5,6,11, EN61547, A light industry level ( surge 4KV ) Input Voltage 180-240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature Tcase= -40~+60°C PDF Datasheet ELED-25-CT.pdf
