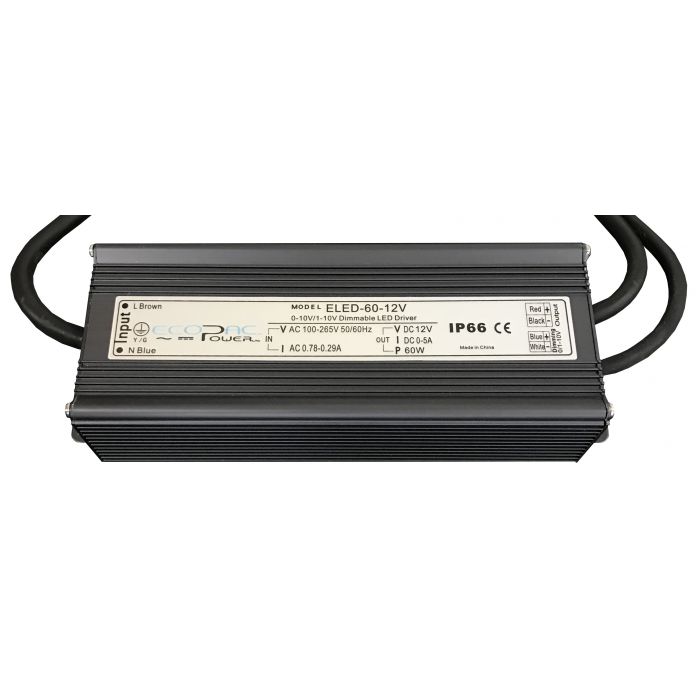

ELED-60-12V - 60W 12V 1-10V Dimmable

Description

Three in one dimming function (0/1-10Vdc or PWM signal or resistance) IP66 design for indoor or outdoor installation Protections: Short circuit/ Over Current/ Over Temperature / Over Loading Other features: Universal AC input/ Full range 100-265VAC Built-in active PFC function Dimming range: 0-100% 3 years warranty
More Information Manufacturer Ecopac Power Output Wattage (W) 60 Output Voltage 12V Dimmable (Type) 0-10V, PCW Signal & Resistance Dimensions 200x 70x 46 EMC Standards Compliance to EN55015, EN61000-3-2 (>60% load) Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry level (surge 4KV) Criteria A Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-60-V.pdf

ELED-60-12V - 60W 12V 1-10V Dimmable

Product form

SKU: ELED-60-12V

Trade price available - contact us

£59.85 Excl. VAT

(inc. 20% VAT): £71.82

    • Contact us to confirm availability
      Downloads

    Three in one dimming function (0/1-10Vdc or PWM signal or resistance) IP66 design for indoor or outdoor installation Protections: Short circuit/... Read more

    Description

    Three in one dimming function (0/1-10Vdc or PWM signal or resistance) IP66 design for indoor or outdoor installation Protections: Short circuit/ Over Current/ Over Temperature / Over Loading Other features: Universal AC input/ Full range 100-265VAC Built-in active PFC function Dimming range: 0-100% 3 years warranty
    More Information Manufacturer Ecopac Power Output Wattage (W) 60 Output Voltage 12V Dimmable (Type) 0-10V, PCW Signal & Resistance Dimensions 200x 70x 46 EMC Standards Compliance to EN55015, EN61000-3-2 (>60% load) Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry level (surge 4KV) Criteria A Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-60-V.pdf
