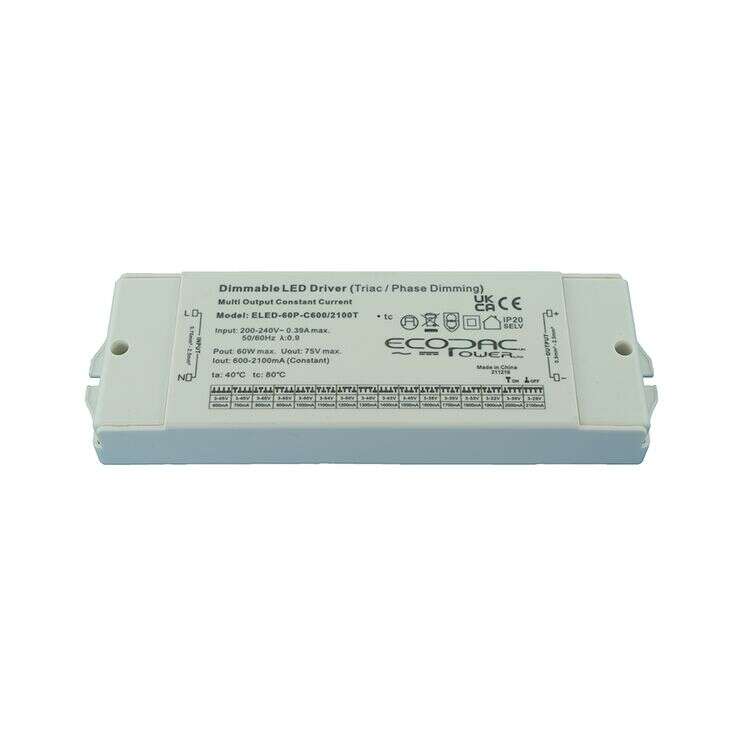

ELED-60P-C600/2100T 60W Triac (leading&Trailing) Dimming Dip-Switch Output Current LED Driver

Description

ELED-60P-C600-2100T Series Features:

Features:

• Constant Current mode output with multiple levels selectable by dip switch

• Dimming function: Triac/phase cut dimming

• Work with leading or trailing edge Triac dimmer

• (ON key: leading edge; 1 key: trailing edge)

• AC input: 200-240VAC

• Built-in active PFC function

• Efficiency up to 83%

• IP20 design for indoor installation

• Full protection plastic housing easy installation

• Protections: Short circuit/ Over load

• Cooling by free air convection

• Suitable for LED lighting and moving sign applications

• Strong compatibility, flicker-free dimming

Wattage 39 45.5 52 58.5 60 60 60 60 60 60 60 60 60 60 60 60
Input Voltage 200~240 200~240VAC 200~240VAC 200~240VAC 200~240 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC
Output Current 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100
Output Voltage 3~65 3~65 3~65 3~65 3~60 3~55 3~50 3~46 3~43 3~40 3~38 3~35 3~33 3~32 3~30 3~39
Dimensions 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm
Working Temperature -40~60°C
Safety Standards EN61347-1, EN61347-2-13, UL8750
EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B



ELED-60P-C600/2100T 60W Triac (leading&Trailing) Dimming Dip-Switch Output Current LED Driver

Product form

SKU: ELED-60pc600/21t

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£44.50 Excl. VAT

(inc. 20% VAT): £53.40

    • Contact us to confirm availability
      Downloads

    ELED-60P-C600-2100T Series Features: Features: • Constant Current mode output with multiple levels selectable by dip switch • Dimming function: Triac/phase... Read more

    Description

    ELED-60P-C600-2100T Series Features:

    Features:

    • Constant Current mode output with multiple levels selectable by dip switch

    • Dimming function: Triac/phase cut dimming

    • Work with leading or trailing edge Triac dimmer

    • (ON key: leading edge; 1 key: trailing edge)

    • AC input: 200-240VAC

    • Built-in active PFC function

    • Efficiency up to 83%

    • IP20 design for indoor installation

    • Full protection plastic housing easy installation

    • Protections: Short circuit/ Over load

    • Cooling by free air convection

    • Suitable for LED lighting and moving sign applications

    • Strong compatibility, flicker-free dimming

    Wattage 39 45.5 52 58.5 60 60 60 60 60 60 60 60 60 60 60 60
    Input Voltage 200~240 200~240VAC 200~240VAC 200~240VAC 200~240 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC
    Output Current 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100
    Output Voltage 3~65 3~65 3~65 3~65 3~60 3~55 3~50 3~46 3~43 3~40 3~38 3~35 3~33 3~32 3~30 3~39
    Dimensions 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm
    Working Temperature -40~60°C
    Safety Standards EN61347-1, EN61347-2-13, UL8750
    EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B
