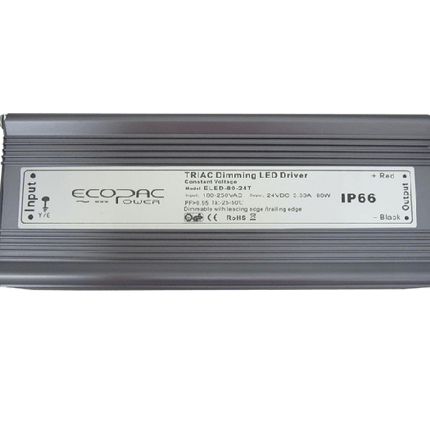

ELED-80-12T - Ecopac Constant Voltage LED Driver ELED-80-12T 80W 12V

Description

obsolete ,  please  order the below . Which is the 100W variant



https://www.easy-controlgear.com/products/eled-100-12t-ecopac-constant-voltage-led-driver-eled-100-12t-100w-12v?_pos=1&_sid=6421e0f7f&_ss=r



Constant voltage Triac/ Mains dimming Suitable for leading/ trailing edge Protections: Short circuit/ Over voltage   Other features: Built-in active PFC funtion (PF>0.95) Cooling by free air convection IP66 Rated Design Fully isolated, delivering up to 80W of power
More Information Manufacturer Ecopac Power Output Wattage (W) 80 Output Voltage 12V Dimmable (Type) Triac Leading edge & Trailing edge Dimensions 200x 68x 45 EMC Standards Compliance to EN55015, EN61000-3-2 (?50% load), EN55015, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, light industry level Input Voltage 175~265VAC Safety Standards EN-60950-1 Output Voltage Options Single Working Temperature -40°C ~ +60°C PDF Datasheet ELED-80-T.pdf

ELED-80-12T - Ecopac Constant Voltage LED Driver ELED-80-12T 80W 12V

Product form

SKU: ELED-80-12T

Trade price available - contact us

£110.75 Excl. VAT

(inc. 20% VAT): £132.90

    • Contact us to confirm availability
      Downloads

    obsolete ,  please  order the below . Which is the 100W variant     https://www.easy-controlgear.com/products/eled-100-12t-ecopac-constant-voltage-led-driver-eled-100-12t-100w-12v?_pos=1&_sid=6421e0f7f&_ss=r   Constant voltage Triac/ Mains dimming... Read more

    Description

    obsolete ,  please  order the below . Which is the 100W variant



    https://www.easy-controlgear.com/products/eled-100-12t-ecopac-constant-voltage-led-driver-eled-100-12t-100w-12v?_pos=1&_sid=6421e0f7f&_ss=r



    Constant voltage Triac/ Mains dimming Suitable for leading/ trailing edge Protections: Short circuit/ Over voltage   Other features: Built-in active PFC funtion (PF>0.95) Cooling by free air convection IP66 Rated Design Fully isolated, delivering up to 80W of power
    More Information Manufacturer Ecopac Power Output Wattage (W) 80 Output Voltage 12V Dimmable (Type) Triac Leading edge & Trailing edge Dimensions 200x 68x 45 EMC Standards Compliance to EN55015, EN61000-3-2 (?50% load), EN55015, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, light industry level Input Voltage 175~265VAC Safety Standards EN-60950-1 Output Voltage Options Single Working Temperature -40°C ~ +60°C PDF Datasheet ELED-80-T.pdf
