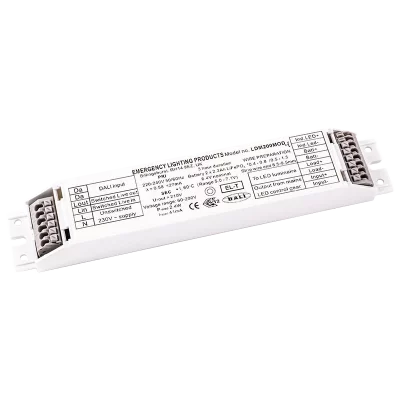

ELP LDM60MOD/K MEDIUM OUTPUT 6-55V DALI EMERGENCY KIT

Description



ELP LDM60MOD/K  MEDIUM OUTPUT 6-55V OUT DALI EMERGENCY KIT

The ELP LDM DALI-2 NFC range of emergency LED control gear allows maintained operation
of high-power LED modules, when used in conjunction with the standard mains voltage LED
control gear. The control gear also provides an integrated DALI power supply for connection to
other DALI devices, which can be optionally activated using a NFC program

The emergency control gear incorporates a module/charger and a
high temperature Lithium Iron Phosphate battery. In the event of a
mains failure an integral 2-pole relay disconnects the LED lighting
load from the mains control gear and then connects it to the
emergency control gear which operates the LED module at an optimum light output for the rated duration



Microprocessor enabled features
• The Near Field Communication (NFC) interface allows for the
optional activation of an integrated DALI power supply and also
the downloading of diagnostics to assist in any site issues.
• An App is available that can be downloaded onto a phone or
tablet which can read stored operating parameters including
information such operating hours, how many tests have been
performed, module thermals , etc. This is a unique feature that
highlights installation conditions and aids fault diagnostics.
• The LED current in emergency mode is automatically adjusted
for maximum light output and is constant for the entire rated
duration.
• Smart charging of the Lithium Iron Phosphate batteries which
have protection circuit fitted including thermal sensing. NB:
Lithium Iron Phosphate batteries offer long life (up to 8 years)
• The LDM range is available with fully interoperable DALI control
and reporting function and comes with an integrated DALI PSU.
Automatic Self-Test is enabled when no DALI bus is connected.

ELP LDM60MOD/K MEDIUM OUTPUT 6-55V DALI EMERGENCY KIT

Product form

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£60.00 Excl. VAT

(inc. 20% VAT): £72.00

    • Contact us to confirm availability
      Downloads

      ELP LDM60MOD/K  MEDIUM OUTPUT 6-55V OUT DALI EMERGENCY KIT The ELP LDM DALI-2 NFC range of emergency LED control... Read more

    Description



    ELP LDM60MOD/K  MEDIUM OUTPUT 6-55V OUT DALI EMERGENCY KIT

    The ELP LDM DALI-2 NFC range of emergency LED control gear allows maintained operation
    of high-power LED modules, when used in conjunction with the standard mains voltage LED
    control gear. The control gear also provides an integrated DALI power supply for connection to
    other DALI devices, which can be optionally activated using a NFC program

    The emergency control gear incorporates a module/charger and a
    high temperature Lithium Iron Phosphate battery. In the event of a
    mains failure an integral 2-pole relay disconnects the LED lighting
    load from the mains control gear and then connects it to the
    emergency control gear which operates the LED module at an optimum light output for the rated duration



    Microprocessor enabled features
    • The Near Field Communication (NFC) interface allows for the
    optional activation of an integrated DALI power supply and also
    the downloading of diagnostics to assist in any site issues.
    • An App is available that can be downloaded onto a phone or
    tablet which can read stored operating parameters including
    information such operating hours, how many tests have been
    performed, module thermals , etc. This is a unique feature that
    highlights installation conditions and aids fault diagnostics.
    • The LED current in emergency mode is automatically adjusted
    for maximum light output and is constant for the entire rated
    duration.
    • Smart charging of the Lithium Iron Phosphate batteries which
    have protection circuit fitted including thermal sensing. NB:
    Lithium Iron Phosphate batteries offer long life (up to 8 years)
    • The LDM range is available with fully interoperable DALI control
    and reporting function and comes with an integrated DALI PSU.
    Automatic Self-Test is enabled when no DALI bus is connected.
