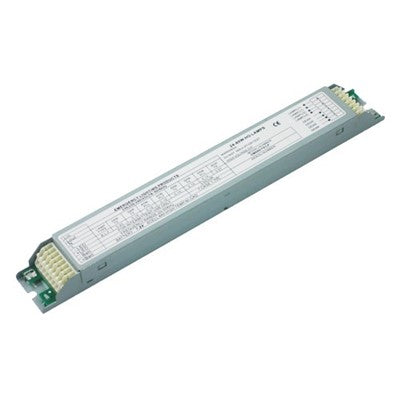

LP OM/680/LP 13-80W Emergency Module
LOW PROFILE OM/LP MODULES
The OM/LP Modules have been designed to suit all common T5 fluorescent luminaires. the OM680/LP covers all high output lamps from 13 to 80Watts and for specific operation of lamps up to 40Watts there is the OM635/LP. Ballast Lumen Factors and basic performance of the OM680LP module is identical to the standard OM680 module. the compact dimensions provide flexibility for internal component layout and the pushwire terminals simplify manual or robotic assembly. Case temperature (tc) rated at 70°C. the OM635/LP & OM680/LP low profile modules are fully compliant with en61347 and en60925.
Operates with a 6 Cell 7.2V 4Ah battery (sold separately) please link below selecting the 3+3

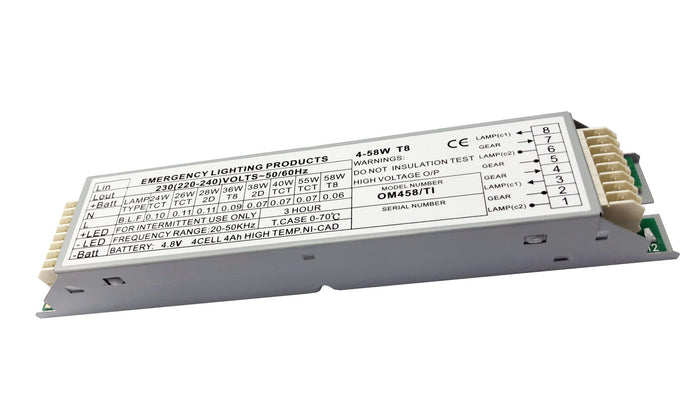

This is an Emergency Lighting Products (ELP) OM/458/TI emergency module to operate a range of lamps with wattages between 4 and 58w. This module should be used with a 4 cell emergency battery. This module has been designed to suit all emergency lighting applications that require an inverter and battery. It has compact dimensions and push-wire/IDC terminals to simplify assembly.
4Cell 13/18w TCT, 13w T5, 16/28/38w 2D Emergency Module - ELP - OM458
Data Sheet
http://www.elp.uk.com/wp-content/uploads/2016/07/ECKDS-04-16.pdf

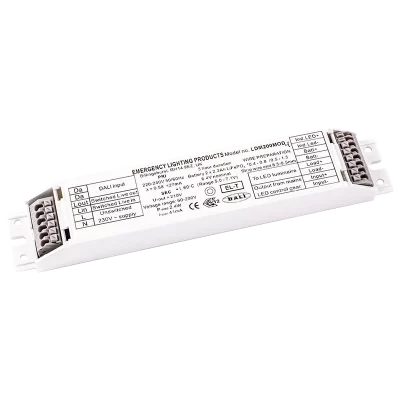

ELP LDM60MOD/K MEDIUM OUTPUT 6-55V OUT DALI EMERGENCY KIT
The ELP LDM DALI-2 NFC range of emergency LED control gear allows maintained operationof high-power LED modules, when used in conjunction with the standard mains voltage LEDcontrol gear. The control gear also provides an integrated DALI power supply for connection toother DALI devices, which can be optionally activated using a NFC program
The emergency control gear incorporates a module/charger and ahigh temperature Lithium Iron Phosphate battery. In the event of amains failure an integral 2-pole relay disconnects the LED lightingload from the mains control gear and then connects it to theemergency control gear which operates the LED module at an optimum light output for the rated duration
Microprocessor enabled features• The Near Field Communication (NFC) interface allows for theoptional activation of an integrated DALI power supply and alsothe downloading of diagnostics to assist in any site issues.• An App is available that can be downloaded onto a phone ortablet which can read stored operating parameters includinginformation such operating hours, how many tests have beenperformed, module thermals , etc. This is a unique feature thathighlights installation conditions and aids fault diagnostics.• The LED current in emergency mode is automatically adjustedfor maximum light output and is constant for the entire ratedduration.• Smart charging of the Lithium Iron Phosphate batteries whichhave protection circuit fitted including thermal sensing. NB:Lithium Iron Phosphate batteries offer long life (up to 8 years)• The LDM range is available with fully interoperable DALI controland reporting function and comes with an integrated DALI PSU.Automatic Self-Test is enabled when no DALI bus is connected.
ELP OM/680/LP 35-80W Emergency Module
LOW PROFILE OM/LP MODULES
The OM/LP Modules have been designed to suit all common T5 fluorescent luminaires. the OM680/LP covers all high output lamps from 40 to 80Watts and for specific operation of lamps up to 40Watts there is the OM635/LP. Ballast Lumen Factors and basic performance of the OM680LP module is identical to the standard OM680 module. the compact dimensions provide flexibility for internal component layout and the pushwire terminals simplify manual or robotic assembly. Case temperature (tc) rated at 70°C. the OM635/LP & OM680/LP low profile modules are fully compliant with en61347 and en60925.
Operates with a 6 Cell 7.2V 4Ah battery (sold separately) please link below selecting the 3+3
https://www.easy-controlgear.com/products/laht-ni-mh-4ah?variant=38169883967685
