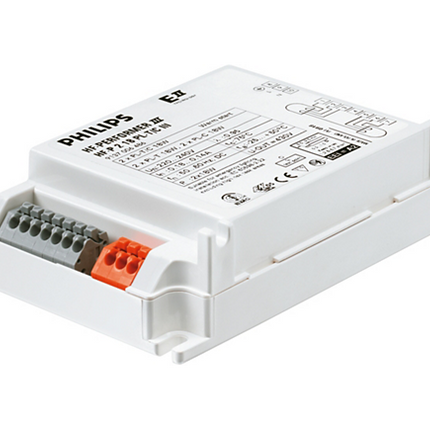

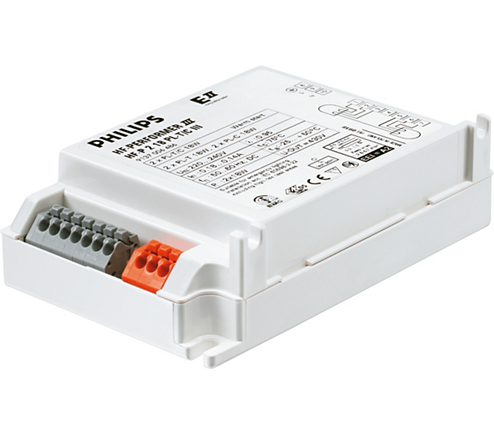

HF-P 1/2 18 PL-T/C III 220-240V Single or Twin 18W PLC/T

Description

View Datasheet

General Information
Application Code
III
Lamp Type
PL-T/C
Number of Lamps
2 piece/unit
Number of Products on MCB (16A Type B) (Nom)
28
Automatic Restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Max)
- kHz
Operating Frequency (Min)
42 kHz
Operating Frequency (Nom)
45 kHz
Ignition Method
Warm Start
Crestfactor (Max)
1.7
Power Factor 100% Load (Nom)
0.95
Ignition Time (Max)
0.40 s
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Earth Leakage Current (Nom)
0.5 mA
Inrush Current Width
0.250 ms
Constant Wattage Deviation
-2%/+2%
Ballast Factor (Nom)
1
Power Losses (Nom)
0.68-2.21 W
Inrush Current Peak (Max)
18 A
Efficiency at full load [%]
87.97 %

HF-P 1/2 18 PL-T/C III 220-240V Single or Twin 18W PLC/T

Product form

SKU: HFP1218PLTC-PH
Barcode: 8727900834178

Trade price available - contact us

£19.21 Excl. VAT

(inc. 20% VAT): £23.05

    • Contact us to confirm availability
      Downloads

    View Datasheet General Information Application Code III Lamp Type PL-T/C Number of Lamps 2 piece/unit Number of Products on MCB... Read more

    Description

    View Datasheet

    General Information
    Application Code
    III
    Lamp Type
    PL-T/C
    Number of Lamps
    2 piece/unit
    Number of Products on MCB (16A Type B) (Nom)
    28
    Automatic Restart
    Yes
    Operating and Electrical
    Input Voltage
    220 to 240 V
    Input Frequency
    50 to 60 Hz
    Operating Frequency (Max)
    - kHz
    Operating Frequency (Min)
    42 kHz
    Operating Frequency (Nom)
    45 kHz
    Ignition Method
    Warm Start
    Crestfactor (Max)
    1.7
    Power Factor 100% Load (Nom)
    0.95
    Ignition Time (Max)
    0.40 s
    Mains Voltage Performance (AC)
    -8%-+6%
    Mains Voltage Safety (AC)
    -10%-+10%
    Earth Leakage Current (Nom)
    0.5 mA
    Inrush Current Width
    0.250 ms
    Constant Wattage Deviation
    -2%/+2%
    Ballast Factor (Nom)
    1
    Power Losses (Nom)
    0.68-2.21 W
    Inrush Current Peak (Max)
    18 A
    Efficiency at full load [%]
    87.97 %
