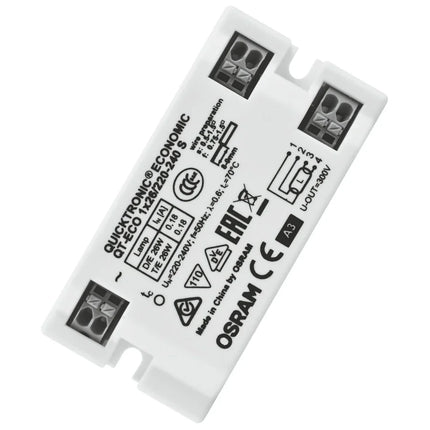

LEDVANCE/OSRAM - QTECO126-S-OS 1x26w DE/TE Electronic Ballast Square

Description

1x26w DE/TE Electronic Ballast Square - Osram - QTECO126-S

Product family benefits
  • Compact housing
  • Automatic restart after lamp replacement
  • Large input voltage range
Areas of application
  • Public buildings

Data sheet

Technical Data

Electrical data

Nominal voltage

220…240 V

Mains frequency

50 Hz

Input voltage DC

176…254 V

Maximum output power

16 W

Efficiency in full-load

84 %


Operating frequency

40 kHz


Max. ECG no. on circuit breaker 10 A (B)

68

Max. ECG no. on circuit breaker 16 A (B)

112

Inrush current

10 A

Light technical data

Starting time

1.0 s


Dimensions & weight

Length

80.0 mm

Width

40.0 mm

Height

22.0 mm

Mounting hole spacing, length

72.0…75.0 mm

Product weight

50.00 g

Temperatures & operating conditions

Ambient temperature range

-15…+50/-15…+50 °C

Permitted rel. humidity during operation

5…85 %


Lifespan

ECG lifetime

30000 h


Additional product data

Suitable for lamp power (1 lamp)

4…16 W

Capabilities

End of lamp life safety shutdown

EOL T.2

Suitable for fixtures with prot. class

I / II

Dimmable

No

Intended for no-load operation

No

Max. cable length to lamp/LED module

1.0 m / 0.5 m

Certificates & standards

Approval marks – approval

VDE

EEI – Energy Label

A2/A3


Standards

Acc. to EN 61347-2-3/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547

Type of protection

IP20

Protection class

I

Logistical data

Commodity code

85041080900

Environmental information


Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration

19-05-2023

Primary Article Identifier

4050300638584

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

f9c950dd-e265-43d3-990e-9e4c82497823

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight
4050300638584 UNV

1
4050300655260 VS

50 212mm x 172mm x 143mm 2684.00g

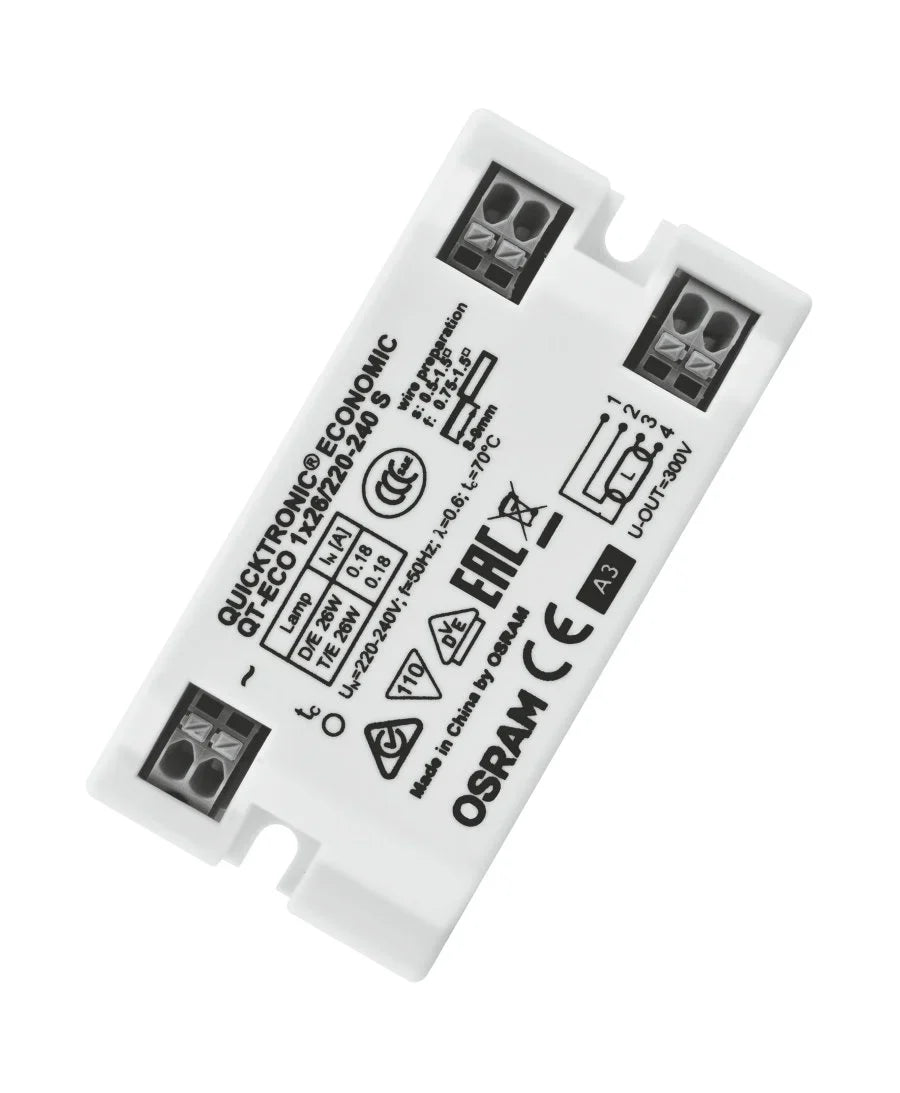

LEDVANCE/OSRAM - QTECO126-S-OS 1x26w DE/TE Electronic Ballast Square

Product form

SKU: QTECO126-S-OS
Barcode: 4008321065971

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£11.55 Excl. VAT

(inc. 20% VAT): £13.86

    • Contact us to confirm availability
