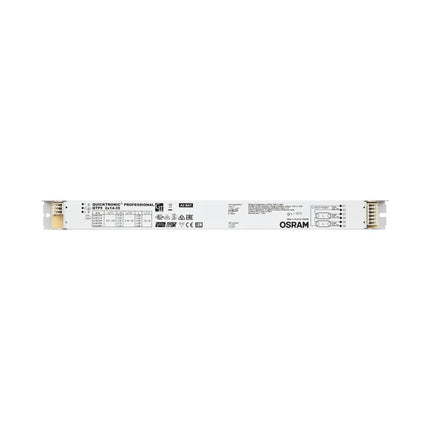

LEDVANCE/OSRAM - QTP521435-OS 2 x 14-35w T5 HF Ballast

Description

Osram QTP521435 - 2 x 14-35w T5 HF Ballast - 4008321329073

Product family benefits
  • Long lamp life
  • No adverse effect from frequent on/off switching
  • Perfect lamp start for applications with motion sensors
  • Automatic restart after lamp replacement
  • VDE/VDE EMC certified system
  • Very high energy efficiency due to cut-off technology
Areas of application
  • Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
  • Industry
  • Open-plan offices, corridors and storage rooms
  • Public buildings
  • Sports halls and factories
  • Strip lighting
  • Suitable for emergency lighting (DC operation)
  • Modernization of existing systems
  • Suitable for luminaires of protection classes I and II

Data sheet

Technical Data

Electrical data

Input voltage AC

198…264 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage DC

176…276 V

Maximum output power

2 x 35 W

Efficiency in full-load

93 %


Operating frequency

40…50 kHz

Max. ECG no. on circuit breaker 10 A (B)

12


Max. ECG no. on circuit breaker 16 A (B)

19


Inrush current

24 A

Light technical data

Starting time

1.0 s


Dimensions & weight

Length

360.0 mm

Width

30.0 mm

Height

21.0 mm

Mounting hole spacing, length

350.0 mm

Product weight

234.00 g

Temperatures & operating conditions

Ambient temperature range

-20…+50 °C

Permitted rel. humidity during operation

5…85 %


Lifespan

ECG lifetime

100000 h


Additional product data

Suitable for lamp power (2 lamps)

14…35 W

Capabilities

End of lamp life safety shutdown

EOL T.2

Suitable for emergency lighting

Yes

Suitable for fixtures with prot. class

I / II

Max. cable length to lamp/LED module

2.0 m / 1.0 m

Dimmable

No

Intended for no-load operation

No

Certificates & standards

Approval marks – approval

VDE / VDE-EMC / CE / ENEC 10

EEI – Energy Label

A2 BAT

Standards

Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547

Protection class

III

Type of protection

IP20

Logistical data

Commodity code

85041080900

Environmental information


Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration

19-05-2023

Primary Article Identifier

4008321329073

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

bee6eb97-8ef3-4993-a1a8-c8e8e247acea

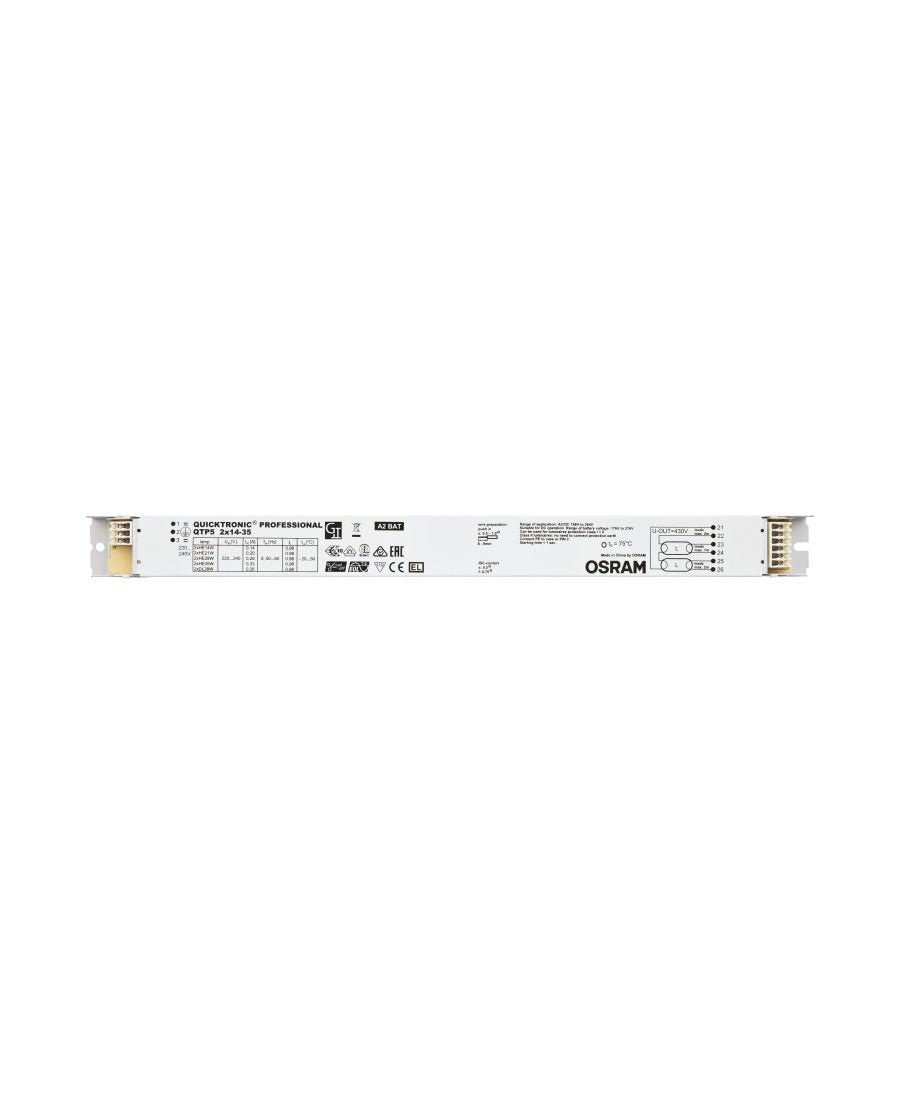

LEDVANCE/OSRAM - QTP521435-OS 2 x 14-35w T5 HF Ballast

Product form

SKU: QTP521435-OS
Barcode: 4008321329073

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£16.90 Excl. VAT

(inc. 20% VAT): £20.28
