Description

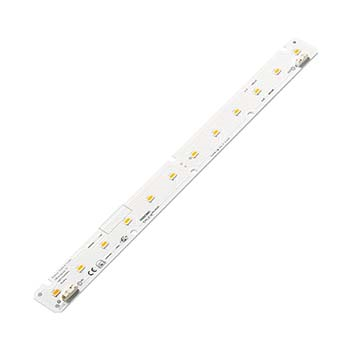

This LED module is designed for linear and panel lighting applications, featuring a SELV design with a forward voltage below 60 V. It offers two terminal options: 2 terminals for serial wiring and 4 terminals suitable for parallel, serial, or robotic wiring. Part of a high-efficiency LED system, it delivers up to 166 lm/W overall, with module efficacy reaching 187 lm/W. It provides high-quality light with a CRI above 80 and tight MacAdam 3 color tolerance. Available in multiple color temperatures from 2,700 K to 6,500 K, it ensures uniform illumination even when multiple modules are combined. Quick push terminals and a wide range of lenses and covers simplify installation. Rated for 50,000 hours (L80F10) with a 5-year warranty.
• Ideal for linear and panel lights
• SELV module – the single module has a forward voltage < 60 V
• Terminals – 2 variants:
2 terminals for serial wiring
4 termninals for parallel, serial or robot wiring
• LED system solution with outstanding system efficacy up to166 lm/W, consisting of linear LED modules and dimmable
LED Driver LCA 50W 100–400mA lp PRE
• Efficacy of the module up to 187 lm/W
• High colour rendering index CRI > 80
• Small colour tolerance MacAdam 31
• Small luminous flux tolerances
• Colour temperatures 2,700 K, 3,000 K, 3,500 K, 4,000 K, 5,000 K
and 6,500 K
• Perfectly uniform light, even if several LED modules are used
together in a line
• Push terminals for quick and simple wiring of LED module to
LED module
• Broad portfolio from extruded lenses and covers available
• Simple installation (e.g. clips or screws)
• Long life-time: 50,000 hours (L80F10)
• 5-year guarantee
