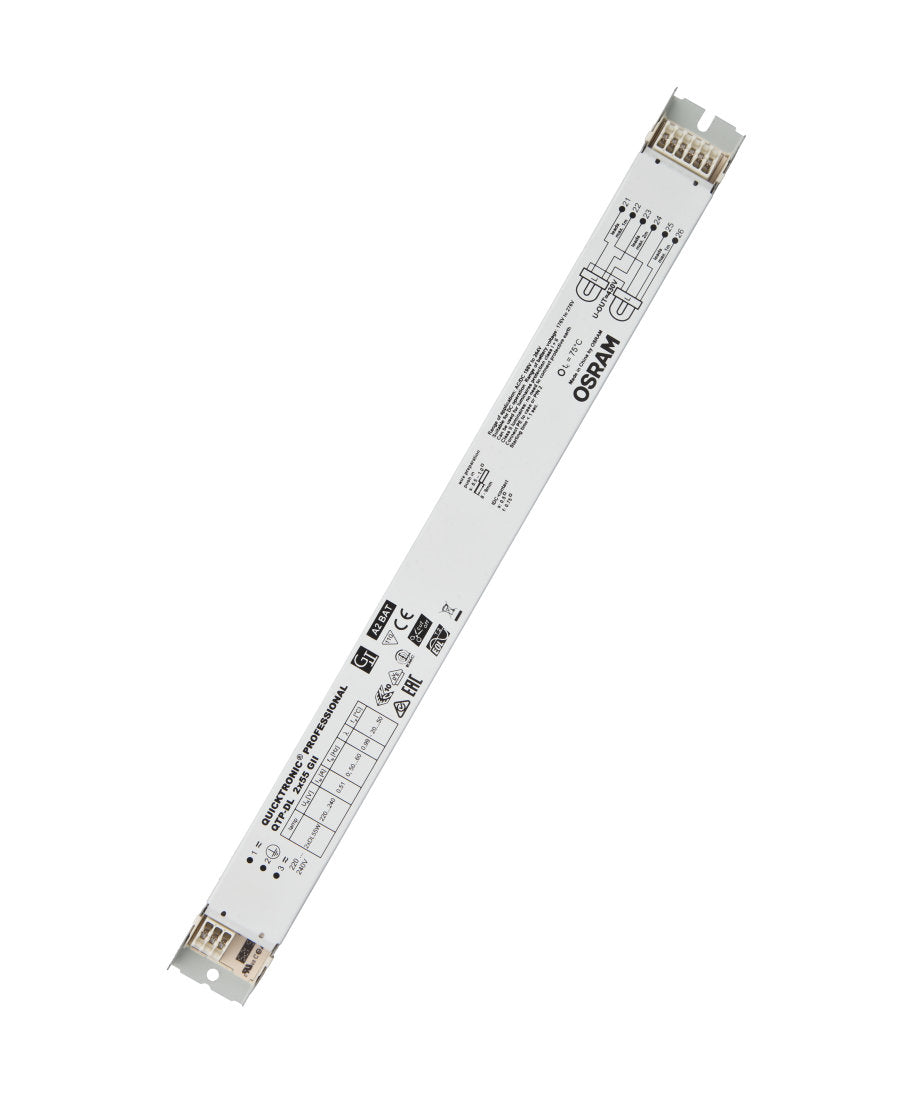

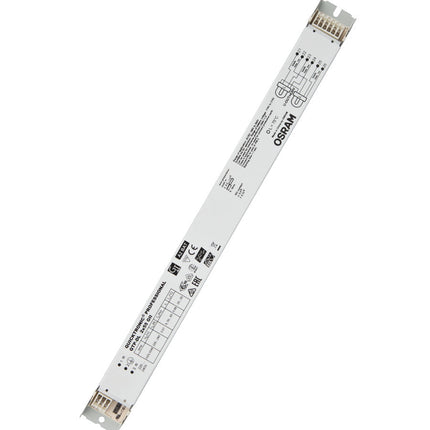

Osram QTP-DL 2x55/220-240

Description

The Osram QTP-DL 2x55/220-240 is a non dimmable high frequency ballast to run 2 x 55w Long single turn PL-L compact fluorescent lamp.

Product family benefits
  • Long lamp life
  • No adverse effect from frequent on/off switching
  • Automatic restart after lamp replacement
  • Perfect lamp start for applications with motion sensors
  • VDE/VDE EMC certified system
  • Very high energy efficiency due to cut-off technology
Areas of application
  • Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
  • Open-plan offices, corridors and storage rooms
  • Public buildings
  • Suitable for luminaires of protection classes I and II

Data sheet

More downloads

Technical Data

Electrical data

Input voltage AC

198…264 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage DC

176…276 V


Maximum output power

2 x 55 W

Efficiency in full-load

95 %


Operating frequency

40…50 kHz

Max. ECG no. on circuit breaker 10 A (B)

8


Max. ECG no. on circuit breaker 16 A (B)

13


Inrush current

28 A

Light technical data

Starting time

1.0 s


Dimensions & weight

Length

360.0 mm

Width

30.0 mm

Height

21.0 mm

Mounting hole spacing, length

350.0 mm

Product weight

265.00 g

Temperatures & operating conditions

Ambient temperature range

-20…+50 °C

Permitted rel. humidity during operation

5…85 %


Lifespan

ECG lifetime

50000 h


Additional product data

Suitable for lamp power (2 lamps)

55 W

Capabilities

Suitable for fixtures with prot. class

I / II

End of lamp life safety shutdown

EOL T.2

Intended for no-load operation

No

Max. cable length to lamp/LED module

2.0 m / 1.0 m

Dimmable

No

Certificates & standards

Approval marks – approval

VDE / VDE-EMC / ENEC 10 / GOST / RCM

EEI – Energy Label

A2 BAT

Standards

Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547

Type of protection

IP20

Protection class

III

Logistical data

Commodity code

850410809000

Environmental information


Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration

14-04-2022

Primary Article Identifier

4008321390172

Candidate List Substance 1

Orange lead (lead tetroxide)

CAS No. of substance 1

1314-41-6

Candidate List Substance 2

Lead

CAS No. of substance 2

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

65971722-45e8-4623-b17a-f93e23c6b0bd

Osram QTP-DL 2x55/220-240

Product form

SKU: QTP-DL 2x55/220-240
Barcode: 40083213390172

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£17.70 Incl. VAT

(inc. 20% VAT): £21.24

    • Contact us to confirm availability
