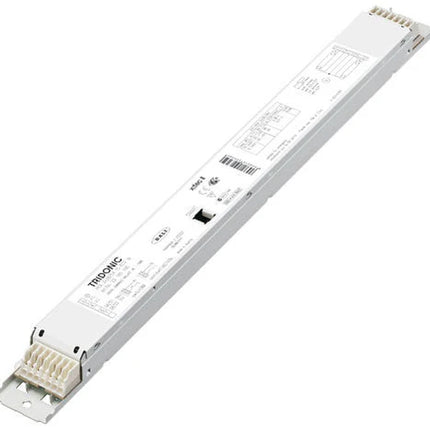

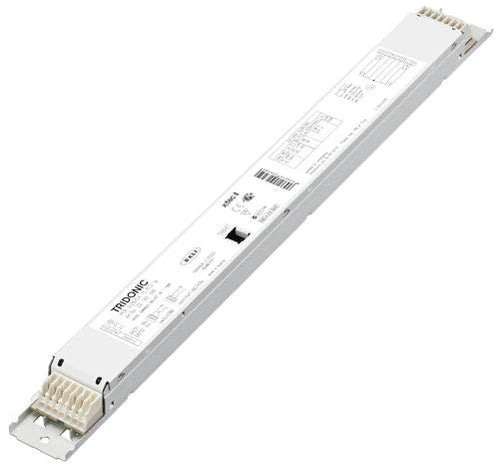

PCA 2x80 T5 ECO lp Y II 22185098

PCA 2x80 T5 ECO lp Y II 22185098

Product description
• Processor-controlled ballast with y II inside
• Highest possible energy class CELMA EEI = A1 BAT1
• Noise-free precise control via DALI or
DSI signal, switchDIM or corridorFUNCTION
• Nominal life up to 100,000 h (at ta 50 °C
with a failure rate max. 0.2 % per 1,000 h)
• Multi-lamp management
• OEM-specific reserved memory areas
• 5 years guarantee
Interfaces
• DALI
• DSI
• switchDIM (with memory function + selectable dimming rate)
• corridorFUNCTION (3 preprogrammed profiles)
• Integrated SMART interface for function with
SMART Sensor 5D 19f and corridorFUNCTION plugs
Functions
• Intelligent Temperature Guard (overtemperature protection)
• Intelligent Voltage Guard (overvoltage indication
and undervoltage shutdown)
• Optimum filament heating in any dimmer setting
• Disconnection of filament heating from a dimming level of approx.
90 % for maximum energy efficiency (SMART-Heating concept)
• corridorFUNCTION with ambient light control
• Automatically triggered emergency lighting value in DC mode, 15 %
• For emergency lighting systems as per EN 50172
• Automatic start after replacement of defective lamps
• Automatic shutdown if the lamp is faulty
È
Standards, page 3
Wiring diagrams and installation examples, page 8
PCA T5 ECO lp Y II, 14 – 80 W
ECO T5 T5 TC-L
6
Ø4,1
L
D
21 4,1
30
side fixing feature
Technical data
Mains voltage range 220 – 240 V
AC voltage range 198 – 264 V
DC voltage range 176 – 280 V (lamp start ≥ 198 V DC)
Mains frequency 0 / 50 / 60 Hz
Overvoltage protection 320 V AC, 1 h
Typ. power input on standby < 0.2 W
Protective hot restart 0.5 s for AC / 0.2 s for DC
Dimming range 1 – 100 %
Lamp start possible from 1 %
Operating frequency ~ 40 – 130 kHz
Type of protection IP20
Ordering data
Type Article number Packaging,
carton
Packaging,
pallet
Weight
per pc.
For luminaires with 1 lamp
PCA 1x14/24 ECO lp Y II 22185094 10 pc(s). 760 pc(s). 0.342 kg
PCA 1x21/39 T5 ECO lp Y II 22185101 10 pc(s). 760 pc(s). 0.233 kg
PCA 1x28/54 T5 ECO lp Y II 22185099 10 pc(s). 760 pc(s). 0.242 kg
PCA 1x35/49/80 T5 ECO lp Y II 22185096 10 pc(s). 760 pc(s). 0.243 kg
For luminaires with 2 lamps
PCA 2x14/24 ECO lp Y II 22185095 10 pc(s). 760 pc(s). 0.272 kg
PCA 2x21/39 T5 ECO lp Y II 22185102 10 pc(s). 760 pc(s). 0.270 kg
PCA 2x28/54 T5 ECO lp Y II 22185100 10 pc(s). 640 pc(s). 0.332 kg
PCA 2x35/49 T5 ECO lp Y II 22185097 10 pc(s). 760 pc(s). 0.260 kg
PCA 2x80 T5 ECO lp Y II 22185098 10 pc(s). 640 pc(s). 0.343 kg
