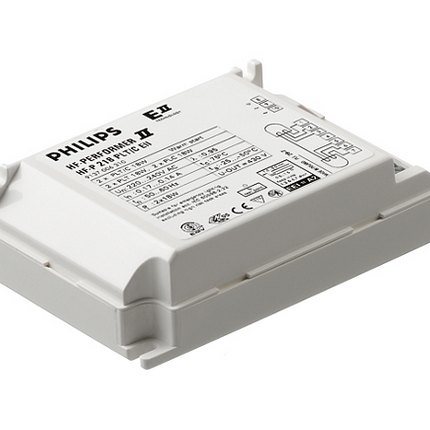

Philips HF-P 2 22-42 PL-T/C/L/TL5C EII 220-240V 91399930

Description

Specifications

General Information
Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Application code
EII
Type version
mk4
Lamp type
PL-T/C/L/TL5C
Number of lamps
2 piece/unit
Number of products on MCB (16 A type B) (nom.)
12
Automatic restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input frequency
50 to 60 Hz
Operating frequency (max.)
- kHz
Operating frequency (min.)
42 kHz
Operating frequency (nom.)
45 kHz
Ignition method
Warm Start
Crest factor (max.)
1.7
Power factor 100% load (nom.)
0.95
Ignition time (max.)
0.52 s
Mains voltage performance (AC)
-8%-+6%
Mains voltage safety (AC)
-10%-+10%
Earth leakage current (nom.)
0.5 mA
Inrush current width
0.35 ms
Constant wattage deviation
-2%/+2%
Ballast factor (nom.)
1
Power losses (nom.)
4.35-4.93 W
Inrush current peak (max.)
31 A
Wiring
Connector type input terminals
Insert
Cable capacity output wires mutual (nom.)
100 pF
Connector type output terminals
Insert
Cable length hot-wiring
0.75 m
Wire strip length
7.5-8.5 mm
Dual fixture master/slave
Not applicable  [ Master/Slave oper. not applicable]
Input terminal cross section
0.50-1.50 mm²
Output terminal cross section
0.50-1.50 mm²
Cable capacity output wires to earth (nom.)
100 pF
System characteristics
Rated ballast-lamp power
22-42 W
Rated lamp power on PL-T/C
22/42 W

Temperature
T-ambient (max.)
50 °C
T-ambient (min.)
-25 °C
T storage (max.)
80 °C
T storage (min.)
-40 °C
T-case lifetime (nom.)
75 °C
T-Case maximum (max.)
75 °C
T-Ignition (max.)
50 °C
T-Ignition (min.)
-25 °C
Emergency Operation
Battery voltage lamp ignition
198-254 V
Battery voltage lamp operation
176-254

Approval and Application
Energy efficiency index
A2
IP classification
IP 20  [ Ingress Protection 20]
EMI 9 kHz ... 30 MHz
EN55015
EMI 30 MHz ... 1,000 MHz
EN55022 level B
Safety standard
IEC 61347-2-3
Performance standard
IEC 60929
Quality standard
ISO 9000:2000
Environmental standard
ISO 14001
Harmonic current emission standard
IEC 61000-3-2
EMC immunity standard
IEC 61547
Vibration standard
IEC68-2-6 F c
Bumps standard
IEC 68-2-29 Eb
Humidity standard
EN 61347-2-3 clause 11
Approval marks

CE marking

ENEC certificate

VDE-EMV certificate
Temperature marking
Yes
Emergency standard
IEC 60598-2-22
Humming and noise level
Inaudible
Product Data
Full product code
871150091399930
Order product name
HF-P 2 22-42 PL-T/C/L/TL5C EII 220-240V
EAN/UPC – product
8711500913999
Order code
91399930
Local code
HFP22242PLT/C/L
Numerator – quantity per pack
1
SAP numerator – packs per outer box
12
Material no. (12 NC)
913700630866
Net Weight (Piece)
0.150 kg

Installation Diagrams


HF-P 2 22-42 PL-T/C/L/TL5C EII 220-240 V
HF-P 2 22-42 PL-T/C/L/TL5C EII 220-240 V

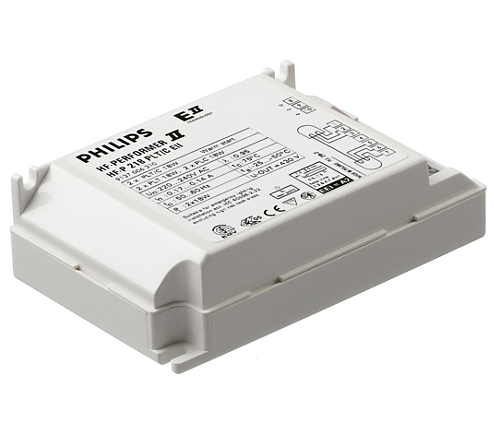

Philips HF-P 2 22-42 PL-T/C/L/TL5C EII 220-240V 91399930

Product form

SKU: HFP22242PLFC-PH
Barcode: 91399930

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£19.13 Excl. VAT

(inc. 20% VAT): £22.96

    • Contact us to confirm availability
