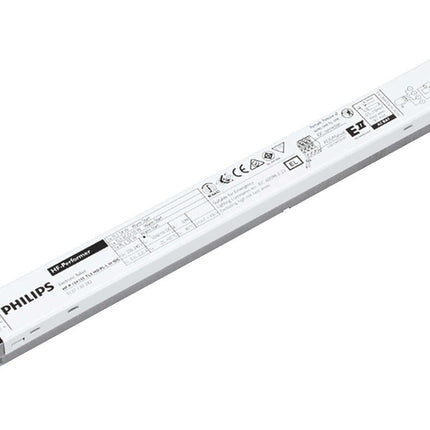

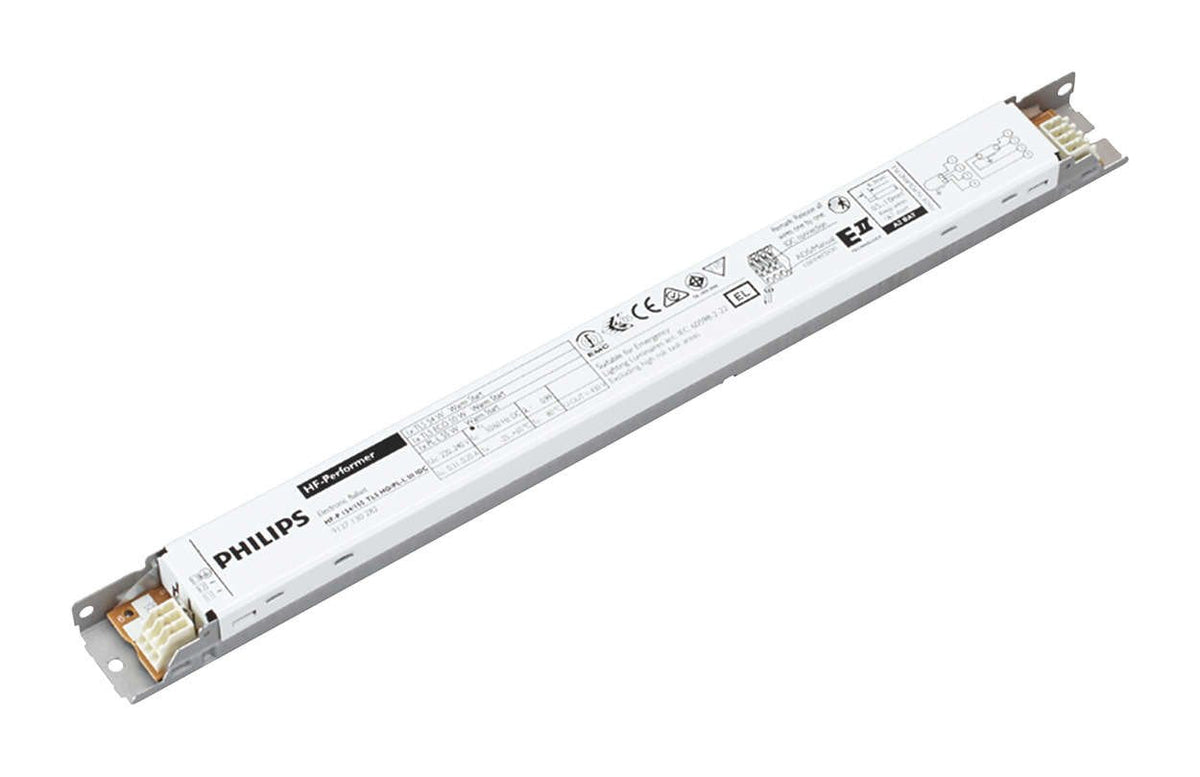

PHILIPS - HFP154/155-PH 1X 54/55w T5 HO/PLL III 220-240v IDC

Description

1X 54/55w T5 HO/PLL III 220-240v IDC - Philips - 913713028266 - HF-P 154/155 TL5 HO/PLL II 220-240v

Downloads

Spec Sheet
Size:203.6 kB

Specifications

Operating and Electrical
Input Voltage
220 to 240 V
Line Frequency
50 to 60 Hz
Inrush Current Width
0.25 ms
Input Frequency
50 to 60 Hz
Inrush Current Peak (Max)
24 A
Approval and Application
Ingress protection code
IP20  [Finger-protected]
Environmental Standard
ISO 14001
Energy Efficiency Index
A2 BAT
Approval Marks

CE marking

ENEC certificate

VDE-EMV certificate
Safety Standard
IEC 61347-2-3
Product Data
Numerator - Quantity Per Pack
1
Order code
913713028266
Order product name
HF-P 154/155 TL5 HO/PLL III 220-240V IDC
Full product code
872790086348200
Net weight
0.252 kg
Full product name
HF-P 154/155 TL5 HO/PLL III 220-240V IDC
EAN/UPC - Case
8727900863482
Numerator - Packs per outer box
12
Material number (12NC)
913713028266
Mechanical and Housing
Housing
L360x30x22

General Information
Number of Lamps
1 piece/unit
Number of Products on MCB (16A Type B) (Nom)
28
Brand
Philips
Wiring
Connector Type Input Terminals
WAGO 251 universal connector  [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Connector Type Output Terminals
WAGO 251 universal connector  [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Temperature
T-Case Maximum (Max)
80 °C
Ambient temperature range
-25 °C to 60 °C
T-Case Lifetime (Nom)
80 °C

Installation diagrams

HF-P 154/155 TL5 HO/PLL III 220-240V IDC
HF-P 154/155 TL5 HO/PLL III 220-240V IDC
Wiring Diagram - HF-P 154/155 TL5 HO/PLL III 220-240V IDC
Wiring Diagram - HF-P 154/155 TL5 HO/PLL III 220-240V IDC

PHILIPS - HFP154/155-PH 1X 54/55w T5 HO/PLL III 220-240v IDC

Product form

SKU: HFP154/155-PH
Barcode: 913713028266

Trade price available - contact us

£17.07 Excl. VAT

(inc. 20% VAT): £20.48

    • Contact us to confirm availability
