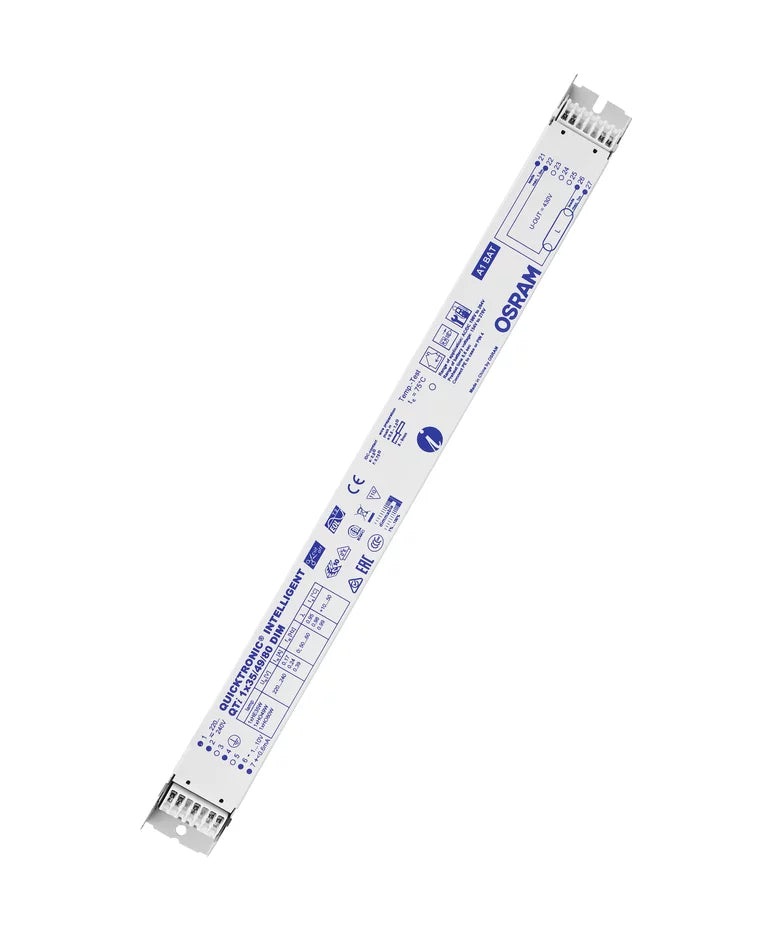

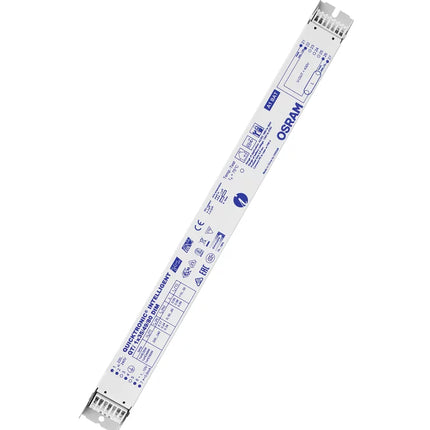

QTi 1x35 49 80W 220V DIM Quicktronic intelligent

Description

Osram QTi 1x35/49/80w Ballast Dimmable - Osram - QTI135DIM - 4050300870540

QUICKTRONIC INTELLIGENT DIM T5 Dimmable 1-10V. ECG for compact fluorescent lamps and T5 fluorescent lamps.

Nominal voltage 220 - 240 V
Mains frequency 50 Hz/60 Hz
DC voltage 154…276 V
Operating frequency 44…120 kHz
Starting time 0.6 s
Length 360 mm
Width 30 mm
Height 21 mm
Mounting hole spacing, length 350 mm
Wire preparation length, input side 8.0…9 mm
Wire preparation length, output side 8.0…9 mm
Ambient temperature range –10…+50 °C
Dimming interface 1…10 V
Dimming range 1…100%
Dimmable Yes
Suitable for fixtures with prot. class I
End of lamp life safety shutdown EOL T.2
Approval marks - approval VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC
EEI - Energy Label A1 BAT
Standards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to EN 61000 - 3-2/acc. to EN 61547

QTi 1x35 49 80W 220V DIM Quicktronic intelligent

Product form

SKU: QTI135-80D-OS
Barcode: 4050300870540

Trade price available - contact us

£52.38 Excl. VAT

(inc. 20% VAT): £62.86

    • Contact us to confirm availability
      Downloads

    Osram QTi 1x35/49/80w Ballast Dimmable - Osram - QTI135DIM - 4050300870540 QUICKTRONIC INTELLIGENT DIM T5 Dimmable 1-10V. ECG for compact fluorescent... Read more

    Description

    Osram QTi 1x35/49/80w Ballast Dimmable - Osram - QTI135DIM - 4050300870540

    QUICKTRONIC INTELLIGENT DIM T5 Dimmable 1-10V. ECG for compact fluorescent lamps and T5 fluorescent lamps.

    Nominal voltage 220 - 240 V
    Mains frequency 50 Hz/60 Hz
    DC voltage 154…276 V
    Operating frequency 44…120 kHz
    Starting time 0.6 s
    Length 360 mm
    Width 30 mm
    Height 21 mm
    Mounting hole spacing, length 350 mm
    Wire preparation length, input side 8.0…9 mm
    Wire preparation length, output side 8.0…9 mm
    Ambient temperature range –10…+50 °C
    Dimming interface 1…10 V
    Dimming range 1…100%
    Dimmable Yes
    Suitable for fixtures with prot. class I
    End of lamp life safety shutdown EOL T.2
    Approval marks - approval VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC
    EEI - Energy Label A1 BAT
    Standards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to EN 61000 - 3-2/acc. to EN 61547
