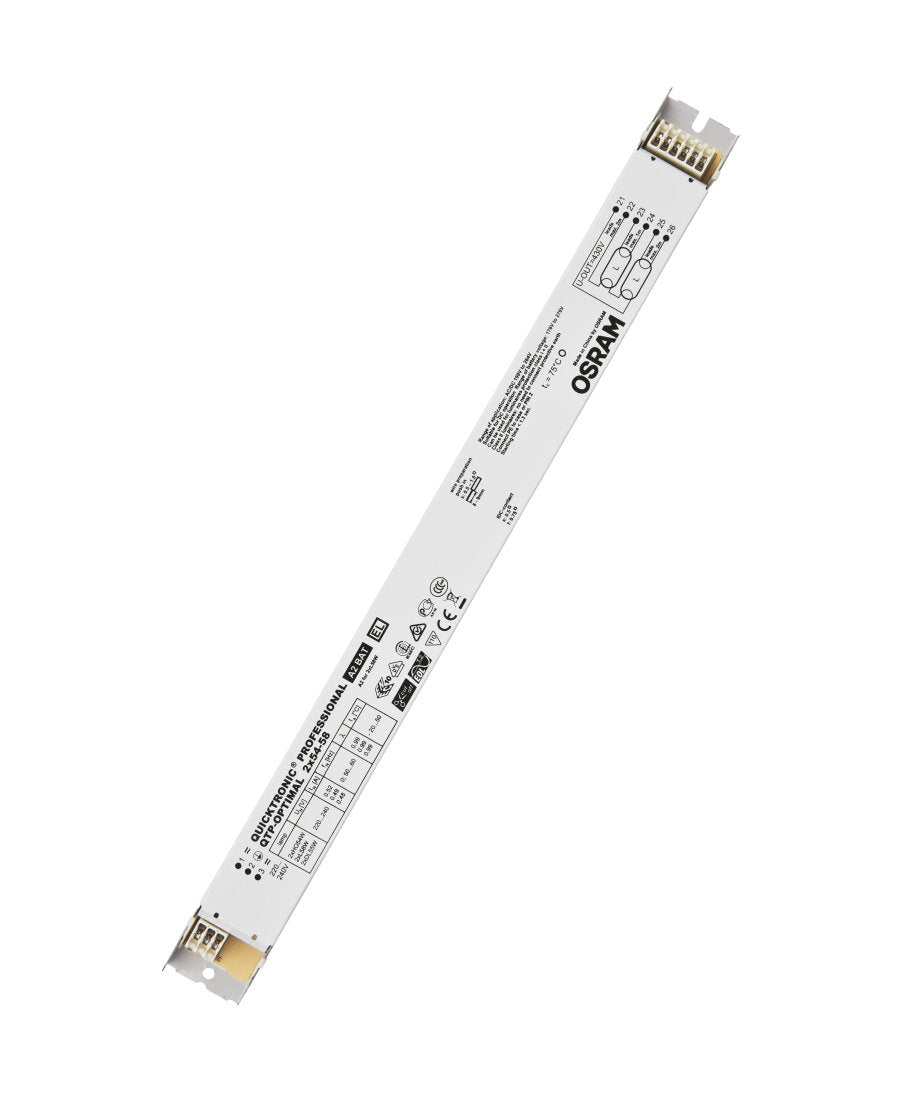

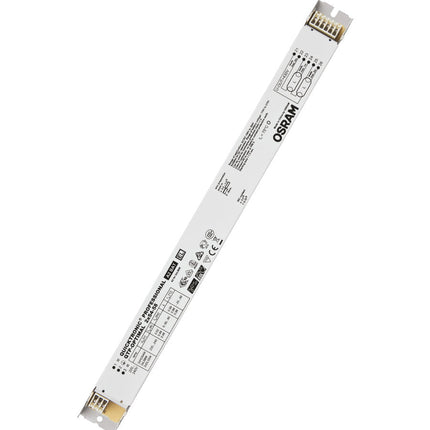

Name: QTP-OPTIMAL 2X54…58
Brand: LEDVANCE/OSRAM
SKU: qtp25458-os
Price: 25.46 GBP

QTP-OPTIMAL 2X54…58

LEDVANCE/OSRAM
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Product family benefits

Long lamp life
No adverse effect from frequent on/off switching
Automatic restart after lamp replacement
Perfect lamp start for applications with motion sensors
VDE/VDE EMC certified system
Very high energy efficiency due to cut-off technology

Areas of application

Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
Industry
Open-plan offices, corridors and storage rooms
Public buildings
Sports halls and factories
Strip lighting
Suitable for emergency lighting (DC operation)
Modernization of existing systems
Suitable for luminaires of protection classes I and II

Data sheet

Technical Data

Electrical data

Input voltage AC

198…264 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage DC

176…276 V

Maximum output power

2 x 58 W

Efficiency in full-load

95 %

Operating frequency

40…50 kHz

Max. ECG no. on circuit breaker 10 A (B)

8

Max. ECG no. on circuit breaker 16 A (B)

13

Inrush current

57 A

Light technical data

Starting time

1.5 s

Dimensions & weight

Length

360.0 mm

Width

30.0 mm

Height

21.0 mm

Mounting hole spacing, length

350.0 mm

Product weight

239.90 g

Temperatures & operating conditions

Ambient temperature range

-20…+50 °C

Permitted rel. humidity during operation

5…85 %

Lifespan

ECG lifetime

100000 h

Additional product data

Suitable for lamp power (2 lamps)

54…58 W

Capabilities

End of lamp life safety shutdown

EOL T.2

Suitable for emergency lighting

Yes

Suitable for fixtures with prot. class

I / II

Max. cable length to lamp/LED module

2.0 m / 1.0 m

Dimmable

No

Intended for no-load operation

No

Certificates & standards

Approval marks – approval

EL / VDE / ENEC 10 / VDE-EMC

EEI – Energy Label

A2 BAT

Standards

Acc. to IEC 61347-2-3 / App. J/Acc. to EN 55015:2006 + A1:2007 + A2:2009/Acc. to EN 61000-3-2/Acc. to EN 61547

Protection class

I

Type of protection

IP20

Logistical data

Commodity code

850410809000

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration

09-05-2023

Primary Article Identifier

4008321880253

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

468ab4ad-3f05-4ad7-82c1-f1d295e95904

Packaging information

EAN	Unit	Piece	Dimension l x w x h	Weight
4008321880253	UNV	1		253.00g
4008321880260	VS	20	385mm x 160mm x 100mm	5016.00g

Downloads

Data sheets

Family data sheet

Data sheet

QUICKTRONIC QTP OPTIMAL

User instruction

Size: 2.3 MB

502689_Frequent switching Quicktronic

Addon Technical Information

Size: 60.4 kB

502688_ECG lifetime - QUICKTRONIC non DIM

Product Datasheet

Size: 232.6 kB

592319_EAC certificate for Quicktronics QT

Certificates

Size: 2.2 MB

349650_QTP-OPTIMAL VDE Certificate

Certificates

Size: 657.4 kB

346505_ENEC QTP-Optimal

Certificates

Size: 678.1 kB

346506_EMC QTP-Optimal

Certificates

Size: 634.1 kB

346512_CE QTP-Optimal

Certificates

Size: 285.9 kB

QUICKTRONIC CE 3364256 190821

Declarations of conformity

Size: 1.6 MB

QUICKTRONIC UK DoC 4314635 200821

Mandatory Publications

Size: 116.3 kB

QTP-OPTIMAL 2X54…58

LEDVANCE/OSRAM
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

SKU: qtp25458-os
Barcode: 4008321880253

Trade price available - contact us

£25.46 Excl. VAT

(inc. 20% VAT): £30.55

Contact us to confirm availability
