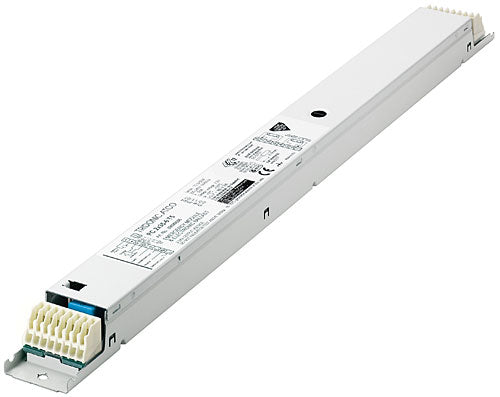

TRIDONIC - PC135-6T5COMB-TR 1X 35w T5 6 Cell Combo Ballast 89899885

Description

1X 35w T5 6 Cell Combo Ballast - Tridonic - 89899885

Rated supply voltage 220 – 240 V
Mains frequency 50 / 60 Hz
Mains voltage changeover threshold According to EN 60598-2-22
Starting time ~ 1.6 s
tc point max. 70 °C
tc point (PC 2x54-6 T5 COMBO lp) 75 °C
Ambient temperature ta 0 ... 55 °C
Operating frequency (normal operation) 40 – 50 kHz
Operating frequency (emergency mode) 20 – 30 kHz
Overvoltage protection 320 V (for 1 h)
Battery charging time 24 h
Charge current 1 h 105 mA
Charge current 3 h 210 mA
Leakage current (PE) < 0.5 mA
Min. lamp starting temperature (normal operation) -15 °C
Min. lamp starting temperature (emergency mode) 0 °C
Type of protection IP20
Dimensions L x W x H 425 x 30 x 21 mm

TRIDONIC - PC135-6T5COMB-TR 1X 35w T5 6 Cell Combo Ballast 89899885

Product form

SKU: PC135-6T5COMB-TR
Barcode: 89899885

Trade price available - contact us

£106.84 Excl. VAT

(inc. 20% VAT): £128.21

    • Contact us to confirm availability
      Downloads

    1X 35w T5 6 Cell Combo Ballast - Tridonic - 89899885 Rated supply voltage 220 – 240 VMains frequency 50... Read more

    Description

    1X 35w T5 6 Cell Combo Ballast - Tridonic - 89899885

    Rated supply voltage 220 – 240 V
    Mains frequency 50 / 60 Hz
    Mains voltage changeover threshold According to EN 60598-2-22
    Starting time ~ 1.6 s
    tc point max. 70 °C
    tc point (PC 2x54-6 T5 COMBO lp) 75 °C
    Ambient temperature ta 0 ... 55 °C
    Operating frequency (normal operation) 40 – 50 kHz
    Operating frequency (emergency mode) 20 – 30 kHz
    Overvoltage protection 320 V (for 1 h)
    Battery charging time 24 h
    Charge current 1 h 105 mA
    Charge current 3 h 210 mA
    Leakage current (PE) < 0.5 mA
    Min. lamp starting temperature (normal operation) -15 °C
    Min. lamp starting temperature (emergency mode) 0 °C
    Type of protection IP20
    Dimensions L x W x H 425 x 30 x 21 mm
