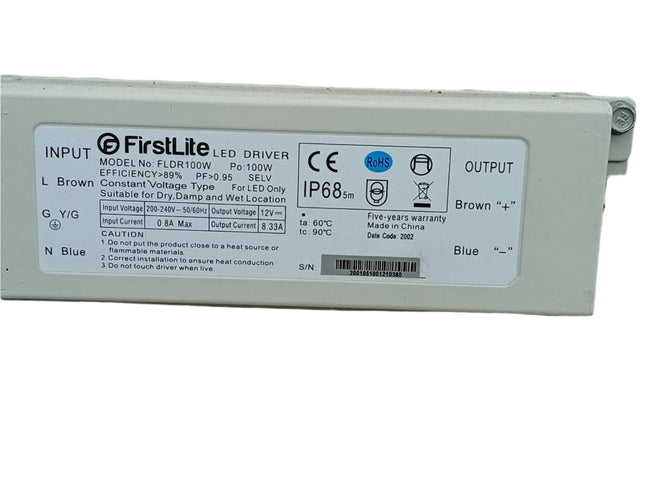

Firstlite fldr100w Constant Voltage 100w 12v IP68 LED driver

Read more less

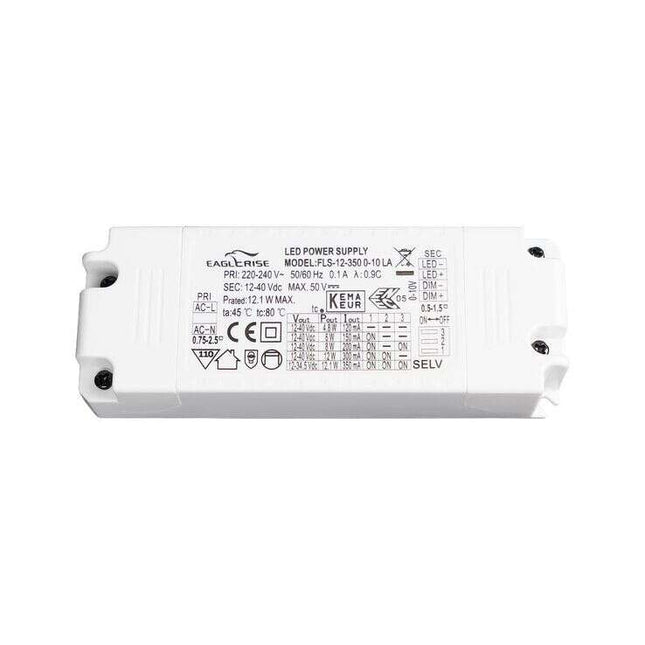

This item is no longer available please call for alternatives   FLS-12-350 0-10 LA Features: Constant current design Input Voltage 220-240VAC Other features: Protections: short circuit/over load/over voltage IP20 Ingress protection Power Factor b %0.9 Efficiency b %80% Class II, SELV 0-10V dimmable Current ADJ. by dip-switch 5 years warranty ■Specification Input Rated input voltage 220-240VAC Range of input voltage 176-264VAC DC voltage range 176-280V Frequency(Hz) 0/50/60 Hz Power Factor 0.9C@220-240VAC, full load Input Current max 0.1A MAX. @Full Load,176VAC Start-up time ＜0.5S Unload Power Consumption ≤0.5W Inrush Current 10A Max. THD 10% Typ. Leakage Current ＜0.5mA(240VAC) Output Constant Current Max. 350mA Unload voltage Max. 50 VDC Voltage Range(VDC) 12-40VDC Rated power 12.1W Max. Current Accuracy ±5% (±8% for Io≤200mA) Voltage Regulation ±5% @Full Load Load Regulation ≤5% Hold-up Time 1s max.@Full Load Ripple& Noise *Note.2 ≤21mAp-p@Full Load,240VAC Efficiency(Typ.) ≥80% Dimming Dimmable YES Dimming mode 0-10V Dimming current range 5%~100% Protection Over Load Protection 103-120% Protection type: Auto Resume Over Voltage Protection ＞50VDC Protection type: Auto Resume Short circuit Protection Protection type: Auto Resume Environment Operating Temperature -20℃…+45℃ tc 80℃ Storage Temperature -25℃…+60℃ Life time ＞30,000h@45℃ Humidity 20%-95%RH Others Dimension 125X45X27.5(LXWXH)mm Weight 0.1kg/PC Safety & EMC Safety standards EN 61347-1; EN61347-2-13; EN62384 Withstand voltage Input-Output：3750V/5mA/1min Isolation resistance Input-Output：≥4MΩ@500VDC EMI EN55015; EN61000-3-2 Class C; EN61000-3-3 EMS EN 61547; EN 61000-4-2; EN 61000-4-5 —1000V;

Read more less

FLS-21-500 LDConstant Current LED Drivers Constant Current LED Drivers Download Datasheet FLS-21-500 LD Features: FLS-21-500 LD is a 21W constant current LED driver with 150 to 500mA output current and a forward voltage range from 10 to 42Vdc. The output current is selectable by DIP Switch. Features Class II, SELV, built-in/independent Input Voltage 220-240VAC Protections: SCP/OLP/OVP Power Factor ＞0.95 Efficiency ≥85% 5 years warranty

Read more less

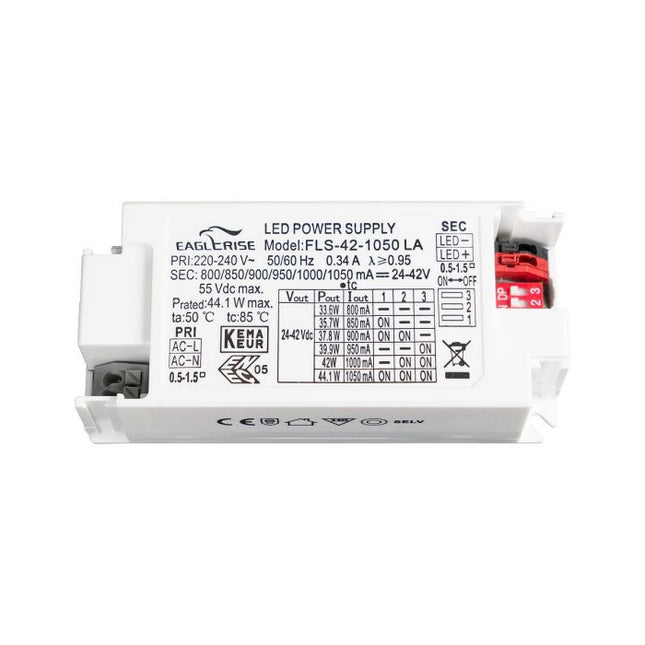

The Eaglerise FLS-42-1050 Selectable Constant Current LED Driver features selectable output current via dip switches between 800mA ~ 1050mA. Suplied with 5year warranty.  Features Protections: short circuit/over load/over voltage IP20 Rated Flicker Free Power Factor ?0.95 Efficiency ?86% Class II, SELV Current adjustment by Dip switch 5 years warrantyMore Information Manufacturer Eaglerise Output Wattage (W) 40 Output Current Selectable Dimmable (Type) No Output Voltage Range (V) 24-42VDC DC Output Adjustment No Dimensions 97 x 43 x 30 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -20 ~ +50C PDF Datasheet FLS-42-1050.pdf

Read more less

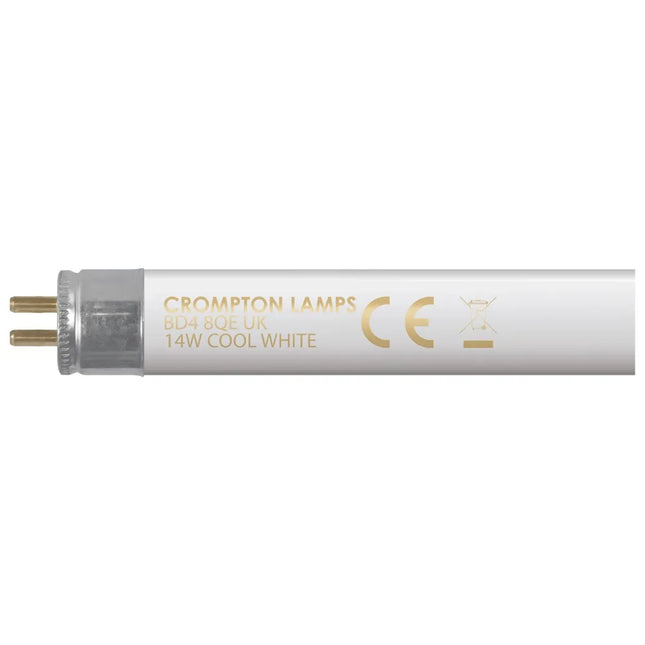

Fluorescent T5 Triphosphor (HE) 2ft • 14W • 4000K • G5   Energy Labelling Guide High efficiency T5 linear fluorescent tube with 2' length and 16mm diameter. This tube is designed for maximum energy efficiency and features Spectra-Plus Triphosphor for high colour rendering (group 85/1b) and high lumen maintenance. Suitable for use with high frequency ballasts. Ideal for use in slim luminaires and fixtures. High efficiency T5 linear fluorescent tube with 2' length and 16mm diameter. This tube is designed for maximum energy efficiency and features Spectra-Plus Triphosphor for high colour rendering (group 85/1b) and high lumen maintenance. Suitable for use with high frequency ballasts. Ideal for use in slim luminaires and fixtures. 20,000 hour life G5 cap 4000K cool white colour temperature Colour rendering index ≥84 Not suitable for dimming Recommended for indoor use only Instant full light   Stock Code: FTT514SPCW

Read more less

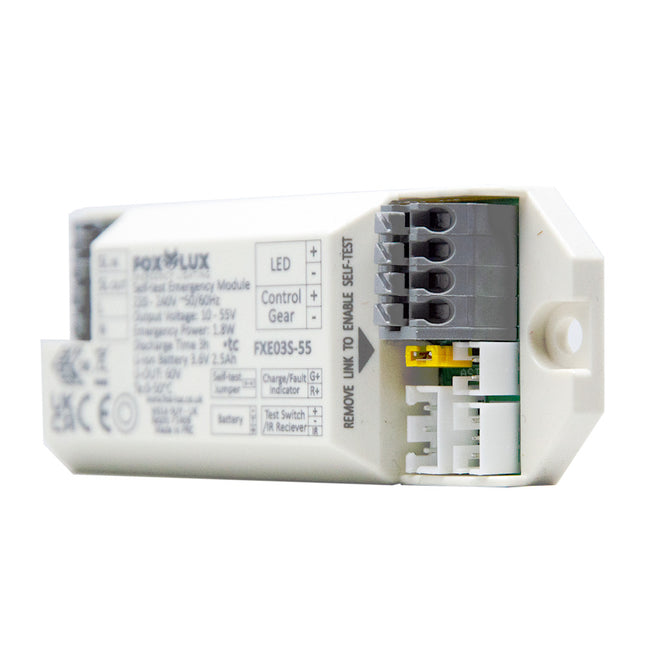

Fox Lux FXE03S-55 10-55V SELF TEST EMERGENCY MODULE

Read more less

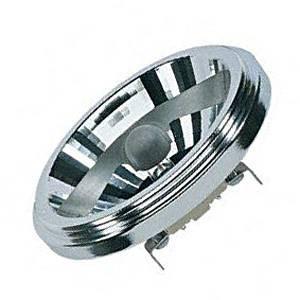

12v 50w G53 AR111 24° Same as the Osram  41835FL / 4050300011769

Read more less

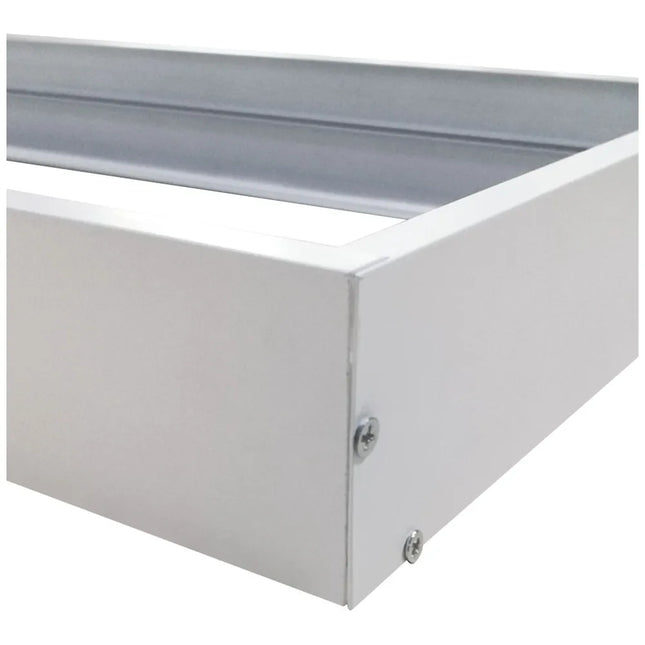

Surface mounting kit for 1200x300 Galanos Arteson. For use with Galanos Arteson 1200x600 panel model 14504 only.

Read more less

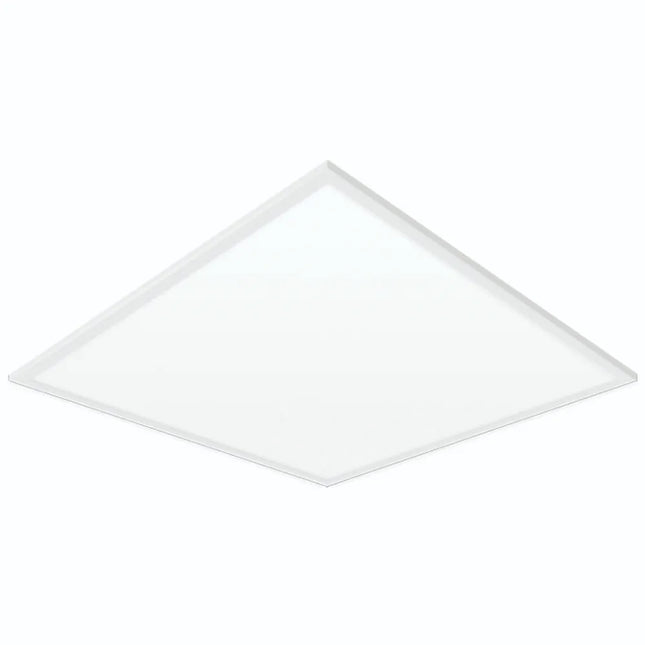

Integrated LED panel featuring backlit LED technology and efficiency 121lm/W. Standard size 600mm x 600mm integrated LED panel with long life 50,000 hour maintenance free operation. Constructed from an aluminium frame and housing with a TP(a) rated polycarbonate diffuser. Utilising backlit LED technology for low degredation and a high efficacy 121lm/W. Recommended for Domestic and Commercial use only Integrated LED panel featuring backlit LED technology and efficiency 121lm/W. Standard size 600mm x 600mm integrated LED panel with long life 50,000 hour maintenance free operation. Constructed from an aluminium frame and housing with a TP(a) rated polycarbonate diffuser. Utilising backlit LED technology for low degredation and a high efficacy 121lm/W. 50,000 hour life 25,000 switching cycles 110° beam angle 4000K cool white colour temperature UGR <19 Colour rendering index ≥80 Not suitable for dimming For indoor use only Instant full light 5 year warranty Recommended for Domestic and Commercial use only Stock Code: 15265

Read more less

Integrated LED panel featuring backlit LED technology and efficiency 121lm/W. Standard size 600mm x 600mm integrated LED panel with long life 50,000 hour maintenance free operation. Constructed from an aluminium frame and housing with a TP(a) rated polycarbonate diffuser. Utilising backlit LED technology for low degredation and a high efficacy 121lm/W. Recommended for Domestic and Commercial use only Integrated LED panel featuring backlit LED technology and efficiency 121lm/W. Standard size 600mm x 600mm integrated LED panel with long life 50,000 hour maintenance free operation. Constructed from an aluminium frame and housing with a TP(a) rated polycarbonate diffuser. Utilising backlit LED technology for low degredation and a high efficacy 121lm/W. 50,000 hour life 25,000 switching cycles 110° beam angle 6000K daylight colour temperature UGR <19 Colour rendering index ≥80 Not suitable for dimming For indoor use only Instant full light 5 year warranty   Stock Code: 15272

Read more less

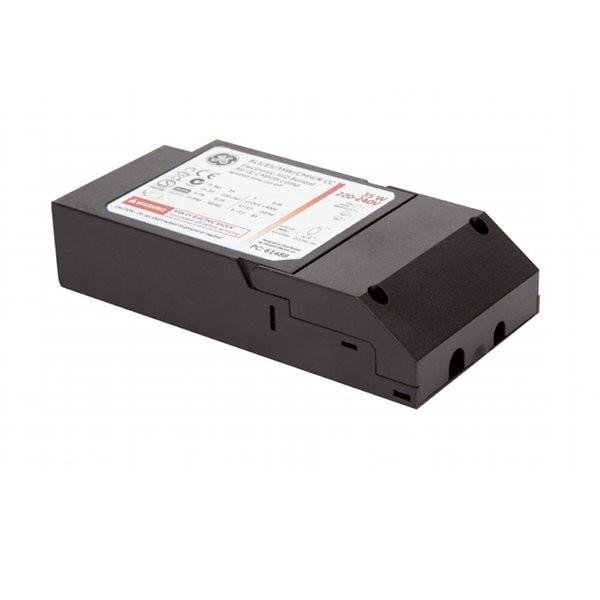

GE OT BLS/E/35W/CMH/R CC 220-240V 12PK - GE CODE 61488
