25w 350-1050Ma flexC Sr EXC LED Driver - Tridonic - 28000700   Driver LC 25W 350–1050mA flexC SR EXC excite series Product description Independent constant current LED Driver Adjustable output current between 350 and 1,050 mA via ready2mains Programmer or I-SELECT 2 plugs Max. output power 25 W Up to 86 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces ready2mains (configuration via mains) Terminal blocks: 0° / 45° push terminals (input / output) Functions Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2) Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Application-oriented operating window for maximum compatibility Best energy savings due to high efficiency Flexible configuration via ready2mains and I-SELECT 2 No tools required for installation Typical applications For downlight, spotlight and decorative applications

Read more less

42 W constant current LED driver 300 mA – 1050 mA adjustable current output Lifetime up to (h): 100000 Product number: 5 902 000

Read more less

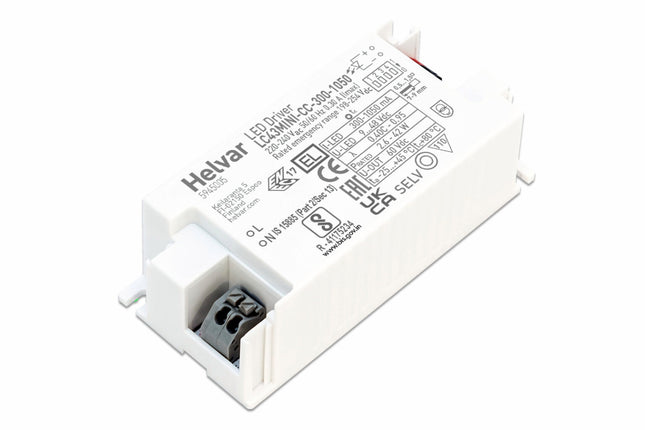

  LC43MINI-CC-300-1050 42 W SELV constant current LED driver • SELV output protection for safety and flexibility in luminaires • Low current ripple, complying with IEEE 1789 recommendation • Suitable for use in emergency light applications • Wide output voltage and current range for wide variety of luminaire setups • Extremely compact dimensions for flexible usage • Ideal solution for Class I and Class II luminaires Product code:  5945xxx (see last page) 42 W  220 – 240 V 50 – 60 Hz • For driving Class III (SELV) luminaires, optional strain relief for independent use outside of luminaire (LC-SR-MINI, LC-SR-MINI-B or LC-SR-MINI-LOOP)* *See also last page. Functional Description • Adjustable constant current output: 300 mA to 1050MAH

Read more less

5921005 Technical Specifications Control Gear Type LED Driver Wattage 44.1 W Manufacturer Helvar Dimming? Dimmable Input Voltage 220-240 V Length 131 mm Type Control Gear IP Rating IP20 Current Output 700-1050mA Warranty 5 Years Frequency Range 50/60 Width 43 mm AC Current 196-264mA Selectable Current 700mA, 750mA, 800mA, 850mA, 900mA, 950mA, 1000mA, 1050mA (Factory Setting) DC Voltage 176-280mA Mains Frequency 50/60 Hz Control Gear Technology LED

Read more less

LC60DS-DA-700-1400   60 W DALI-2 dimmable LED driver 700 mA – 1400 mA adjustable current output Lifetime up to (h): 50000 Dimming range: 1% – 100% Product number: 5 934 005 More information: DALI, AMPLITUDE, PanelReady Datasheet

Read more less

Product description Dimmable constant current LED driver (SELV) Independent LED driver with cable clamps Dimmable via leading edge and trailing edge phase dimmers Dimming range 5 to 100 % (depending on dimmer) For luminaires of protection class I and protection class II For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 Temperature protection as per EN 61347-2-13 C5e Selectable output current between 700 and 1,050 mA Max. output power 44 W Up to 87 % efficiency Nominal lifetime up to 50,000 h 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)

Read more less

Driver LCA 45W 500–1400mA one4all SR PRE premium series Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Independent dimmable constant current LED Driver with strain-relief Dimmable via DALI / DALI-2 Dimming range 1 – 100 % (whole operating window) Output current adjustable between 500 – 1,400 mA Max. output power 45 W Up to 90 % efficiency Power input on stand-by < 0.15 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° / 45° push terminals (input / output) Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the Driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 No tools required for installation Typical applications For downlight, spotlight and decorative applications

Read more less

Driver LCA 45W 500–1400mA one4all SR PRE premium series Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Independent dimmable constant current LED Driver with strain-relief Dimmable via DALI / DALI-2 Dimming range 1 – 100 % (whole operating window) Output current adjustable between 500 – 1,400 mA Max. output power 45 W Up to 90 % efficiency Power input on stand-by < 0.15 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° / 45° push terminals (input / output) Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the Driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 No tools required for installation Typical applications For downlight, spotlight and decorative applications

Read more less

https://resources.tridonic.com/PDB/Ressource/Web_TR/Archive_PDF/LED_Drivers/Linear_dimming/DS_TALEXXconverter_LCAI_70W_300mA_one4all_en.pdf   obsolete limited stock still available

Read more less

Obsolete , replaced by :- https://www.easy-controlgear.com/products/driver-lc-15w-350ma-fixc-pc-sr-snc2-essence-series Driver LCBI 15W 350MA BASIC phase-cut SR ADV advanced series Product description Dimmable via leading edge and trailing edge phase dimmers Output dimmed analogue (current amplitude) Dimming range typ. 5 to 100 % (depending on dimmer) Potted style Type of protection IP20 Screw terminal Connecting cable, wire cross-section 0.5 – 2.5 mm² SELV 350, 500 or 700 mA output current Output power 14/15 W Nominal lifetime of 60,000 h (at max ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) 5 years guarantee Properties Casing: polycarbonate, white Compact dimensions Overload protection Short-circuit protection

Read more less

Built-in 0~10Vdc and PWM signal dimming function Output current level selectable by DIP switchProtections: Short circuit / Over voltage / Over temperature Other features: 180~295VAC input only Built-in active PFC function Protections: Short circuit / Over voltage / Over temperature Cooling by free air convection Fully isolated plastic case No load power consumption <0.5W Class II power unit, no F.G. Logarithm or linear dimming curve selectable (meet IEC62386-207) Built-in 0~10Vdc and PWM signal dimming function Power supplies synchronization function up to 10 units Suitable for indoor LED lighting applications 3 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 25 Output Voltage Choose Option Dimmable (Type) 0~10Vdc & PWM signal Dimensions 105x 68x 23 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 180~295VAC, 254~417VDC Safety Standards UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet LCM-25-SPEC.PDF

Read more less

Built-in 0~10Vdc or PWM signal dimming function Output current level selectable by DIP S.W. Built-in active PFC function Protections: Short circuit / Over voltage / Over temperature  Other features: 180~295VAC input only Cooling by free air convection Temperature compensation function by external NTC No load power consumption <1.2W@AC always on Fully isolated plastic case Class power unit, no FG Built-in 12V/50mA auxiliary output Suitable for LED lighting applications Power supplies synchronization function up to 10 units 3 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 60 Output Voltage Choose Option Dimmable (Type) 0~10Vdc & PWM signal Dimensions 123.5x 81.5x 23 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547 light industry level (surge 2KV), criteria A Input Voltage 180~295VAC 254~417VDC Safety Standards UL8750, ENEC EN61347-1, EN61347-2-13,EN62384 independent approved Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet LCM-60-spec_2.pdf
