LDM Range
The ELP ENEC marked LDM emergency LED control gear allows emergency lighting operation of high-power LED modules when used in conjunction with the standard mains voltage LED control gear.
The emergency control gear incorporates a module/charger and a high temperature Nickel Cadmium or Lithium Iron Phosphate (LiFePO4) battery. In the event of a mains failure an integral 2-pole relay disconnects the LED lighting load from the mains control gear and then connects it to the emergency control gear which operates the LED module at an optimum light output for the rated duration.
LDM
LED Array Emergency Control Gear
LDM Range
The ELP ENEC marked LDM emergency LED control gear allows emergency lighting operation of high-power LED modules when used in conjunction with the standard mains voltage LED control gear.
The emergency control gear incorporates a module/charger and a high temperature Nickel Cadmium or Lithium Iron Phosphate (LiFePO4) battery. In the event of a mains failure an integral 2-pole relay disconnects the LED lighting load from the mains control gear and then connects it to the emergency control gear which operates the LED module at an optimum light output for the rated duration.
Datasheet
CE Declaration of Conformity
UKCA Declaration of Conformity
To ensure the correct operation of each type of LED module the correct LDM equipment should be selected.
The total forward operating voltages of the LED module/arrays connected should be used to determine the appropriate LDM control gear. For the appropriate battery, indicator LED etc., see Order Codes.
Note: All LDM modules can be equipped with SurePath BLE Bluetooth addressable Gateway modules.
Microprocessor Enabled Features
The LED current in emergency mode is automatically adjusted for maximum light output and is constant for the entire rated duration.
Smart charging of both Nickel Cadmium and Lithium Iron Phosphate batteries. NB: Lithium Iron Phosphate batteries offer long life (up to 10 years).
Details are logged of any mains failures to assist in the diagnostics of any site issues.
The LDM range is available with fully interoperable DALI control and reporting function. These DALI versions indicated by the suffix D, also provide automatic Self-Test when no DALI bus is connected.
It is important to note that some LED mains control gear should not be operated with an open circuit load, to overcome this problem the LDM range features a live in/ live out relay which ensures the load is in place before the mains driver is powered up.
In Self-test mode the function and duration tests will take place at randomised times. If required, testing can be programmed to occur at a designated time by turning the unswitched supply off and on 3 times in 10 seconds at the required time. Note: The function test will occur weekly at the same time.

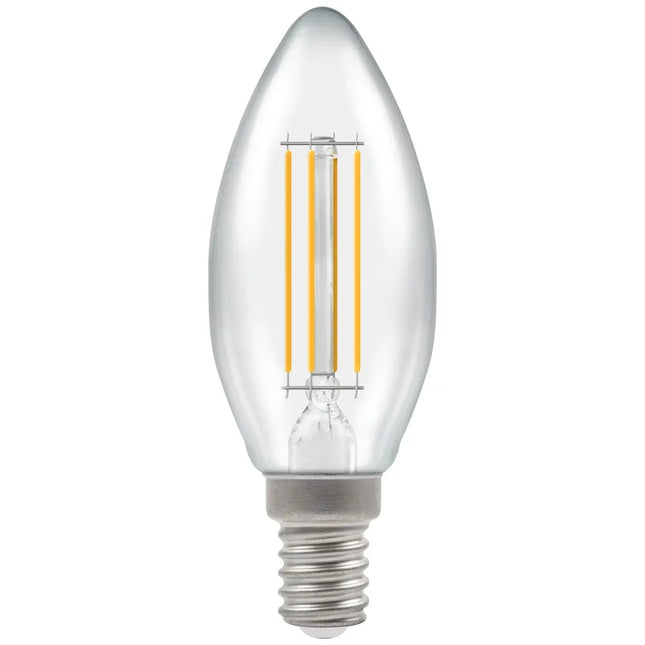

Dimmable LED filament 35mm candle lamp with clear finish.
Part Code 7161
Energy saving LED 2700K warm white replacement lamp featuring LED filament technology.
LEDs are arranged in a series filament arrangement, allowing true omni-directional light output.
Designed to closely resemble the look and feel of a traditional incandescent lamp.

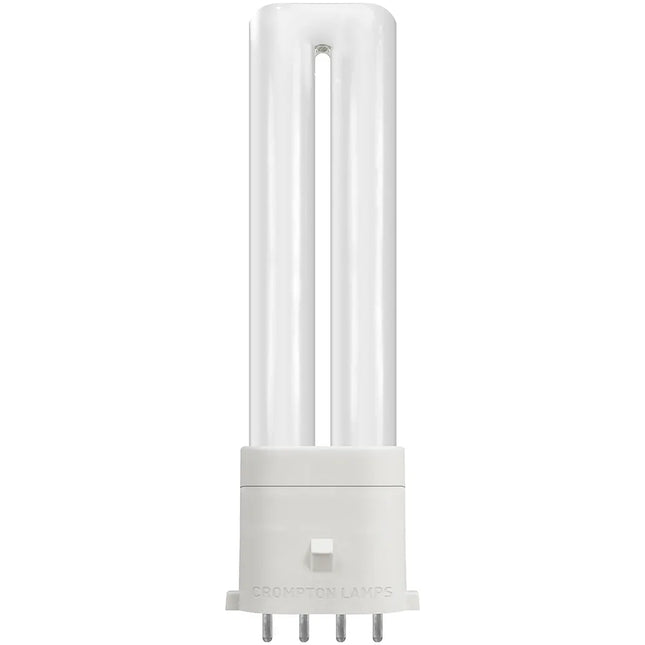

LED ~ To A PL-S 7W 4 Pin
LED PLC direct to mains lamp, no ballast required
Commonly used in commercial and domestic luminaires. Ideal for use in downlights, bulkheads and many other suitable applications.
No mercury or hazardous materials.
Instant start with no warm-up time.
Not Suitable for dimming or use in emergency luminaires.
Ballast/control gear bypass required.
LED CFL DIRECT TO MAINS ONLY. For indoor use only.
Ballast/control gear bypass required.
30,000 hour life
15,000 switching cycles
2G7 cap
4000K cool white colour temperature
Colour rendering index ≥80
Not suitable for dimming
Recommended for indoor use only
2 year warranty

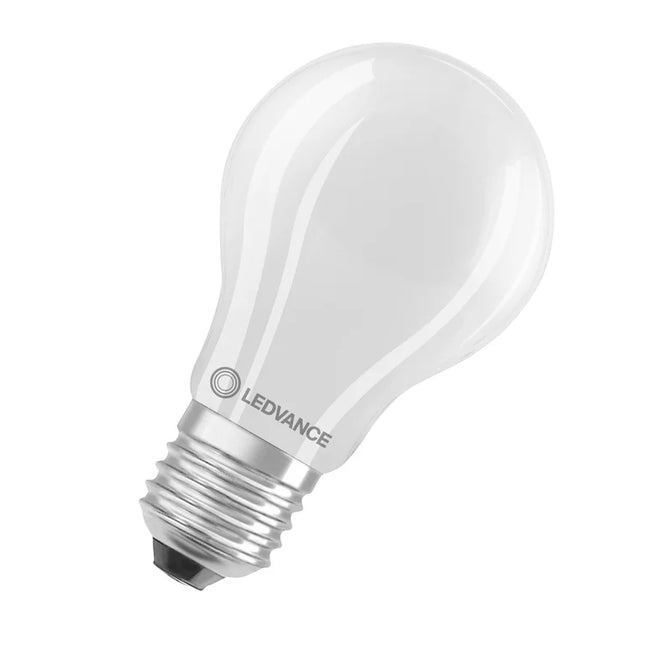

LED Classic A 40 Filament DIM P 4.8W 827 Frosted E27
Product benefits
Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Lower energy consumption than incandescent or halogen lamps
Robust against vibrations
No UV and near-IR radiation in the light beam
Instant 100 % light, no warm-up time
Can be easily fitted instead of ordinary light bulbs
This item is now obsolete, please click the below for the alternative set to 350Ma
Alternative
186519
Illuminate your space with precision using the Electronic LED Driver Ledline ECXe 350.192 9W 350mA. Designed for constant current driven LED modules, it offers a power factor of 0.6, 50,000-hour service life, and multiple safety features. Versatile and efficient, this driver guarantees exceptional lighting for any environment.
Introducing the Electronic LED Driver Ledline ECXe 350.192 9W 350mA: Illuminate Your World with Precision
Illuminate your space with unparalleled precision and efficiency using the Electronic LED Driver Ledline ECXe 350.192 9W 350mA. Designed to be the ultimate companion for constant current driven LED modules, this cutting-edge electronic LED driver is engineered to bring you the perfect lighting experience. Dive into the details and discover why this LED driver is a game-changer for your lighting needs.
Description: Precision Meets Performance
Our Ledline ECXe 350.192 9W 350mA electronic LED driver is the epitome of precision and performance. Crafted to cater to the specific requirements of constant current driven LED modules, this driver guarantees exceptional results with every installation.
Features: Masterful Engineering at a Glance
Electrical Characteristics:
No secondary side switching of LED modules allowed, ensuring consistent performance.
Power factor of 0.6 for optimal energy efficiency.
Remarkable service life of 50,000 hours, offering long-lasting illumination.
Connection Details:
Mains voltage range of 220 - 240 V ±10% for versatility in installation.
Mains frequency of 0 Hz, 50 - 60 Hz, ensuring compatibility with various setups.
Screw terminals with 2.5 mm² capacity for secure and reliable connections.
Integrated cord grip (except 186180) for added convenience.
Safety Features:
Electronic short-circuit protection for peace of mind.
Overload protection to safeguard your LED modules.
Protection against no-load operation, enhancing durability.
Degree of protection: IP20, shielding against dust and moisture.
Protection class II and SELV equivalent for safety compliance.
Max output of 9 W, providing ample power for your lighting needs.
Output Specifications:
Mains voltage: 0 Hz, 176 - 264 V, 60 - 40 mA.
Mains voltage: 50 - 60 Hz, 220 - 240 V, 91 - 88 mA.
Current output DC: 350 mA, ensuring stable performance.
Voltage output DC: 2 - 24 V for versatile applications.
Max. voltage without load DC: 25 V for added flexibility.
Efficiency at full load (230 V): > 78% for energy efficiency.
Operating temperature range of -20…50 °C.
Casing temperature can reach up to 80 °C, assuring durability.
Additional Safety Features:
Protection against transient main peaks.
Electronic short-circuit protection for extra security.
Overload protection to preserve your LED modules.
Overtemperature protection for long-lasting performance.
Protection against "no load" operation for added reliability.
Degree of protection: IP20, shielding against dust and moisture.
Protection class I for built-in setups and protection class II for independent use.
SELV (Safety Extra Low Voltage) for peace of mind.
Applications: Illuminate Your Imagination
The Electronic LED Driver Ledline ECXe 350.192 9W 350mA is a versatile powerhouse, perfect for a wide range of applications. Whether you're lighting up your home, office, retail space, or any other environment, this LED driver ensures consistent and efficient performance. It's compatible with constant current driven LED modules, making it the ideal choice for various lighting setups. Say goodbye to flickering lights and uneven illumination – with the Ledline ECXe 350.192, you can create the perfect lighting atmosphere for any space.
Conclusion: Shine Bright with Confidence
In the world of LED drivers, the Electronic LED Driver Ledline ECXe 350.192 9W 350mA stands out as a beacon of excellence. With its precision engineering, robust safety features, and versatile applications, it's the ultimate choice for anyone seeking impeccable lighting solutions. Illuminate your world with confidence and make the Ledline ECXe 350.192 your trusted companion for all your lighting needs.

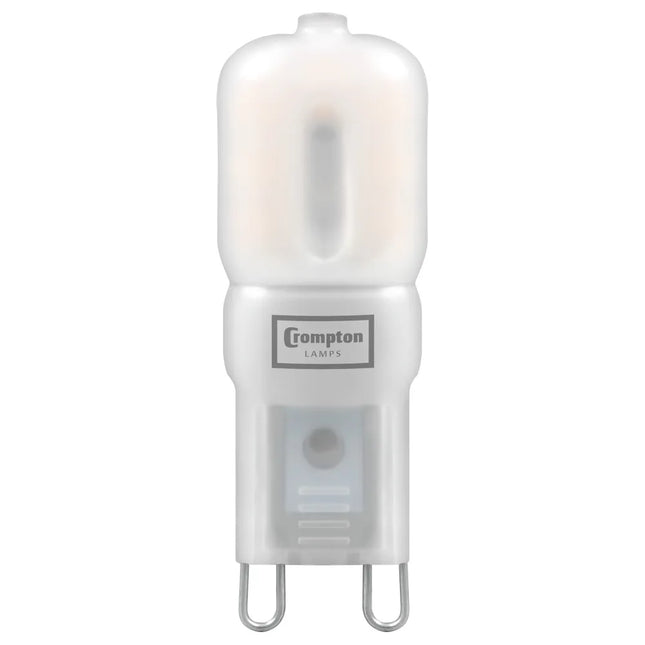

LED G9 2.5W capsule lamp.
High efficiency LED G9 capsule lamp for display and accent light fixtures.
Features a miniature design that closely resembles the shape and size of a halogen G9, making the lamp ideal for direct retrofit into existing fittings.
Features a miniature design that closely resembles the shape and size of a halogen G9, making the lamp ideal for direct retrofit into existing fittings.
6,000 hour life
12,000 switching cycles
G9 cap
2700K warm white colour temperature
Colour rendering index ≥80
Not suitable for dimming
Recommended for indoor use only
Instant full light
1 year warranty

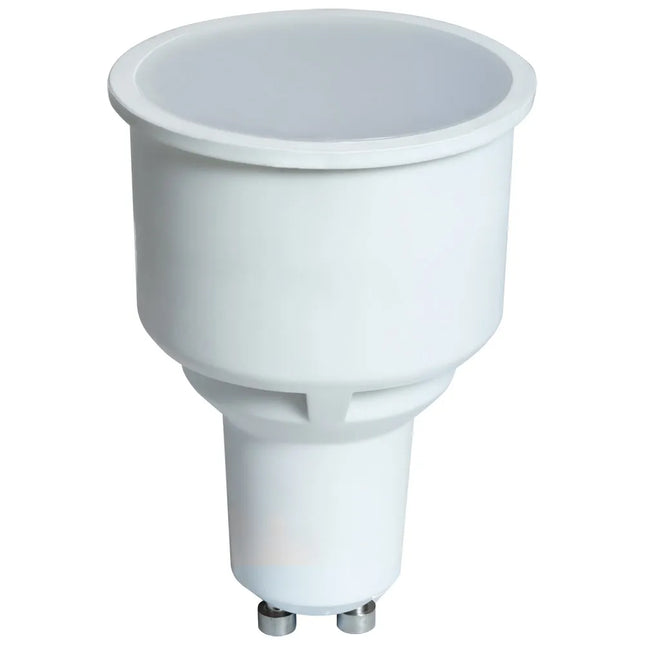

Energy efficient LED retrofit GU10 lamp with long barrelled body.
LED retrofit lamp featuring a long barrelled body which is designed to fit extra-deep L1/GU10 fittings.
Approximately equivalent to a 50W Halogen GU10 lamp.
Suitable for use in fire rated downlights.
Features DuoDim™ Technology: Compatible with both leading and trailing edge dimmers.
Stock Code: 14893
Energy efficient LED retrofit GU10 lamp with long barrelled body.
LED retrofit lamp featuring a long barrelled body which is designed to fit extra-deep L1/GU10 fittings.
Approximately equivalent to a 50W Halogen GU10 lamp.
Suitable for use in fire rated downlights.
25,000 hour life
12,500 switching cycles
GU10 cap
100° beam angle
2700K warm white colour temperature
Colour rendering index ≥80
Suitable for dimming
Recommended for indoor use only
Instant full light
2 year warranty
Features DuoDim™ Technology: Compatible with both leading and trailing edge dimmers.
