ELP 11-42w HE T5 Ballast - ELP - OM535/T5/TI The OM range of inverter modules which are referred to as 'Total Isolation' or 5-pole control units (featuring full 4pole change-over of the lamp/gear connections plus a timed fifth pole to make & break the ballast live supply). This inverter is ideal for use with 14W to 35W T5 tubes and 13 to 42W PL-C/T type lamps. A 5 cell battery 4Ah Ni-Cad battery is required for operation of this inverter, as is a status indicator, both these items are not supplied. The modules fully comply to EN61347 and EN60925. 14 - 35 Watt T5 tubes, 13 - 42 Watt PL-C/T 4 pin lamps Maintained/Non maintained wiring Push type IDC terminals 5 D cell 4Ah Ni-Cad battery required Dims: Height 28mm, W 40mm, D 210mm. Fixing centres 202mm

Read more less

ELP 24-49w HE T5 Ballast - ELP - OM52449/T5/TI

Read more less

Please note, this item is obsolete. You will be sent an Philips/Tridonic/Osram alternative     Vossloh Schwabe Electronic ballast to run 4 x 18w T8 lamps - 188318

Read more less

Single 35w CDM Ballast - PCI003550B011 This item is obsolete , you will be sent an OSram PTI35/S,please note the Osram variant is slightly bigger  https://www.easy-controlgear.com/products/ledvance-osram-pti35s-os-35w-powertronic-ballast-without-clamp?_pos=2&_sid=324c02fcb&_ss=r

Read more less

 Data sheet Item details Manufacturer: OSRAM Item No.: 25476 GTIN: 4050300870670 Voltage (V): 220-240 Life Time (h): 100000 Dimmable: yes

Read more less

Obsolete, If using with water treatment lamps please consider the below as a viable alternative.  Possible Alternative   Linear Electronic ballast T8, 2 x 15/18W, 110-260v

Read more less

Tridonic PC149T5PRO Electronic HF low profile Ballast to run 1 x 49w T5 Tubes - PC 1/49 T5 PRO low

Read more less

90w SOX Ballast BSX90L32 LX90CI LX90H RSL090245 SZ090K245   Product Code: SZ090K245 Magnetic Ballast Electrical Data Lamp Watts (W) 90 Lamp Current (A) 0.94 Input Voltage at 50Hz 240 Circuit Watts (W) 104 Running Current (A) 0.48 Delta T (°C) 65 tw (°C) 140 Capacitor Value (µf) 8 Capacitor Voltage (V) 250 Energy Efficiency Index (EEI) A3 Physical Data Dimensions (LxWxH mm) 118x66x46 Fixings (mm) 52x75-86 Weight (kg) 1.3 Ballast Diagram Revision: 10-06-2013 **See page 2 for product notes** Venture Lighting Europe Ltd., Trinity Court, Batchworth Island, Church Street, Rickmansworth, WD3 1RT, United Kingdom Tel: +44 (0) 845 230 2222, Fax: +44 (0) 845 230 2077, www.venturelightingeurope.com Product Code: SZ090K245 Notes: Venture Lighting Europe Ltd., Trinity Court, Batchworth Island, Church Street, Rickmansworth, WD3 1RT, United Kingdom Tel: +44 (0) 845 230 2222, Fax: +44 (0) 845 230 2077, www.venturelightingeurope.com

Read more less

35-55w SOX Ballast Integral Ignitor - Venture - RSD355245

Read more less

2 x 32/42w Digital Dimming Ballast HF242DD PCA2/32/42TCTTECO

Read more less

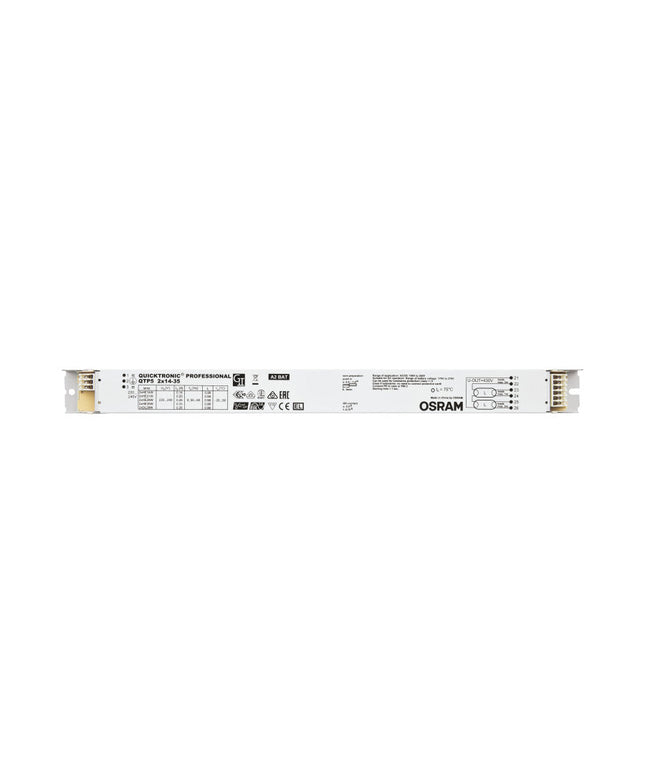

Osram QTP521435 - 2 x 14-35w T5 HF Ballast - 4008321329073 Product family benefits Long lamp life No adverse effect from frequent on/off switching Perfect lamp start for applications with motion sensors Automatic restart after lamp replacement VDE/VDE EMC certified system Very high energy efficiency due to cut-off technology Areas of application Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100 Industry Open-plan offices, corridors and storage rooms Public buildings Sports halls and factories Strip lighting Suitable for emergency lighting (DC operation) Modernization of existing systems Suitable for luminaires of protection classes I and II Data sheet Technical Data Electrical data Input voltage AC 198…264 V Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage DC 176…276 V Maximum output power 2 x 35 W Efficiency in full-load 93 % Operating frequency 40…50 kHz Max. ECG no. on circuit breaker 10 A (B) 12 Max. ECG no. on circuit breaker 16 A (B) 19 Inrush current 24 A Light technical data Starting time 1.0 s Dimensions & weight Length 360.0 mm Width 30.0 mm Height 21.0 mm Mounting hole spacing, length 350.0 mm Product weight 234.00 g Temperatures & operating conditions Ambient temperature range -20…+50 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 100000 h Additional product data Suitable for lamp power (2 lamps) 14…35 W Capabilities End of lamp life safety shutdown EOL T.2 Suitable for emergency lighting Yes Suitable for fixtures with prot. class I / II Max. cable length to lamp/LED module 2.0 m / 1.0 m Dimmable No Intended for no-load operation No Certificates & standards Approval marks – approval VDE / VDE-EMC / CE / ENEC 10 EEI – Energy Label A2 BAT Standards Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547 Protection class III Type of protection IP20 Logistical data Commodity code 85041080900 Environmental information Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh) Date of Declaration 19-05-2023 Primary Article Identifier 4008321329073 Candidate List Substance 1 Lead CAS No. of substance 1 7439-92-1 Safe Use Instruction The identification of the Candidate List substance is sufficient to allow safe use of the article. Declaration No. in SCIP database bee6eb97-8ef3-4993-a1a8-c8e8e247acea

Read more less

EL1x39sc Controllable (1-10 V) electronic ballast Ballasts catalogue Lifetime up to (h): 50000 Dimming range: 1 % – 100 % Input voltage: 220 V – 240 V Lamp type: T5 (39 W), TC-L (40 W), T5c (40 W) Start options: Warm start Specifications Technical Length (mm) 360 Height (mm) 21 Width (mm) 30 Dimming 1-10 V Energy efficiency class A1 Fixing length 350

Read more less
