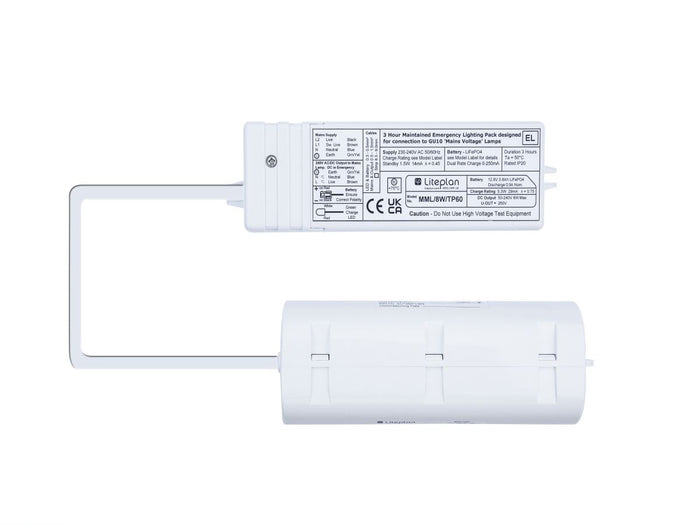

A split pack designed to fit through up to a 60mm aperture of a mains voltage downlight. The unit has been designed to provide full output in emergency mode and will power all loads up to 8W, capable of accepting 230Vdc. All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery.
Liteplan no longer make this item , however we have a supplier whom can still supply them to the same spec but wont have a Liteplan label on them
https://www.liteplan.com/images/products/Batteries/NiCd/3-CD45-PT-AS.pdf
Liteplan NLP/1/SP85-R Remote LED Emergency Conversion Kit 10-55V
Replaces Liteplan NED/3/SP98
The NLP/1/SP85-R is supplied as a remote conversion kit designed to be mounted adjacent to the luminaire, where room inside the fitting is limited. A 3 hour emergency lighting conversion kit which operates with Long Life LiFePO4 batteries. The unit is designed to suit an extremely wide range of LED types and circuits. The NLP/1/SP85-R automatically adjusts the output LED current to provide the best match between the battery and the load,providing maximum illumination whilst ensuring full battery duration. The batteries used with this unit not only provide double the life of traditional emergency lighting batteries, but consume far less power during their operational life.
Single Piece Remote Enclosure
Deep Discharge Protection
Low Power Consumption
Long Life LiFePO4 Batteries
Average Emergency Power - 2.1W
3rd Party Tested and Certified by TÜV
Mains Supply 230-240V AC 50/60 Hz
Max Ta and Tc Ta - 50 °C - Tc - 70 °C
Power Rating (charging)* 3.8W 23mA λ = 0.69
Max Battery Temperature 55 °C
Power Rating (standby)* 1.3W 13mA λ = 0.43
Duration 3-Hours
Battery Discharge Current 900mA nominal
Charge Current 225mA Nominal
Recharge Period 24-Hours
Discharge Voltage Limit 5.0 Volts

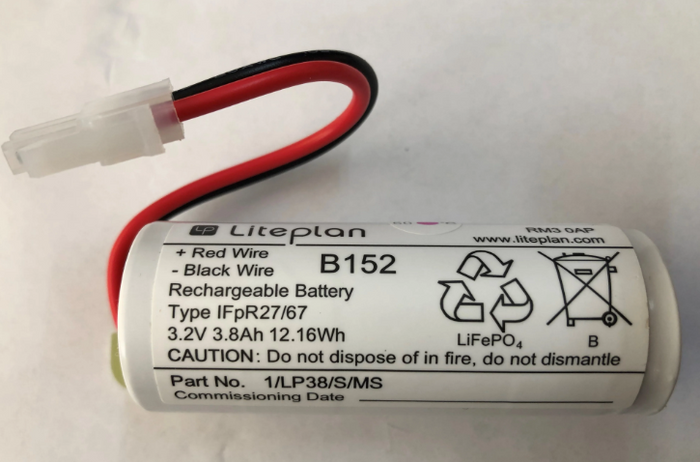

Battery Size & Type 3.2V 3.8Ah LiFePO4 Cell
Ingress Protection IP20
Terminal - Push Wire 0.5mm2 - 1.5 mm2
Weight 0.1Kg
Module Dimensions (LxWxH) 320mm x 75mm x 31mm

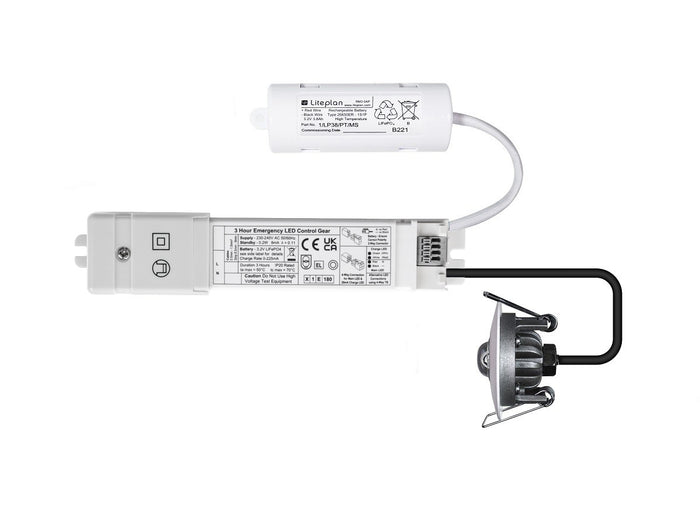

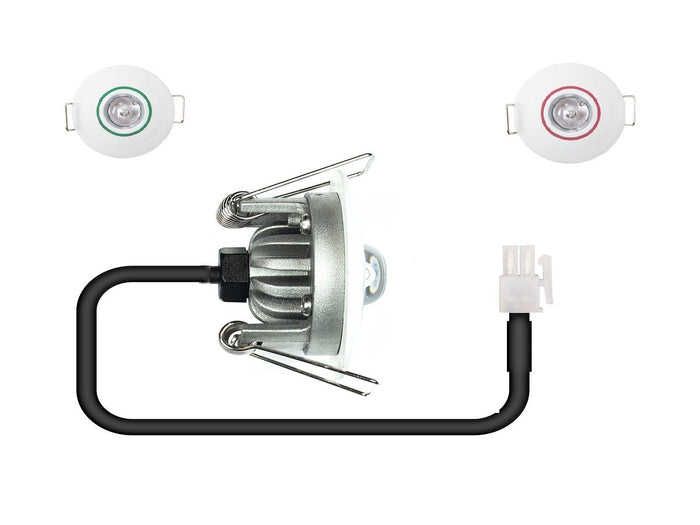

LED/43/OA Open Area Optic
A constant current 135° wide beam angle device which can be driven up to 700mA. The face incorporates the design protected, Halo effect, bi-colour LED for green charge healthy and red self-test fault indication.
The LED/43/OA is a discrete emergency LED which is designed for ceiling recess applications. The bezel has a diameter of 50mm and the cut out required is 40mm to 43mm. The main LED can be driven up to 700mA and provides up to 268 lumen. The body also features our Design Protected, Halo effect bicolour LED; green for charge healthy and red for fault indication of self-test functionality. Order Code LED/43/OA/W White (RAL9016) Emergency Device
• • • • • • • 135 ° Beam Angle Standard, Self-Test and DALI Options Available High Output - Up to 268 Delivered Lumen Supplied With Plugs and Leads Requires a 40mm to 43mm Cut-Out Features Halo Effect Bi-Colour Charge LED IP54 Ingress Protection as Standard

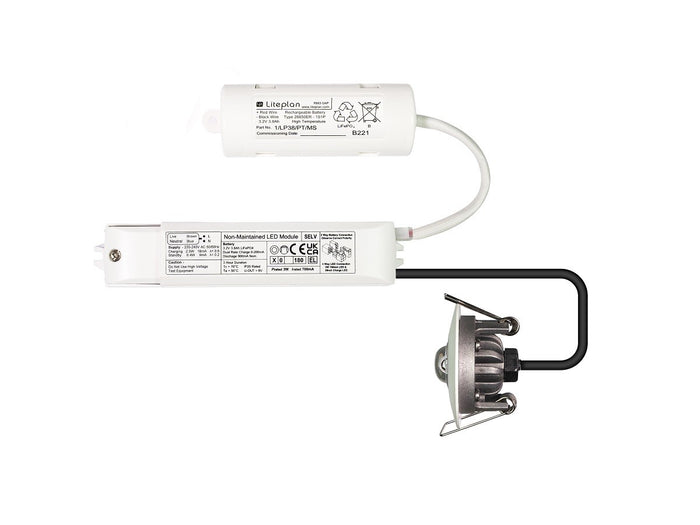

The S-ALP/1 range is supplied with a choice of LED emitters andis designed for ceiling recess applications. The non-maintainedemergency driver is supplied with strain relief cables and passesthrough a 40mm to 43mm aperture.
