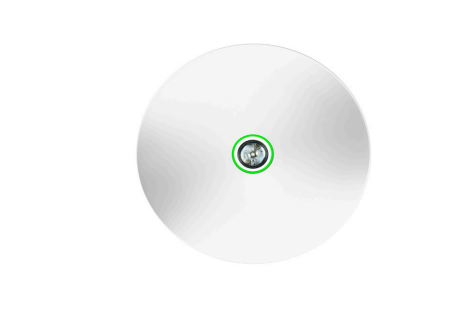

LED/43/OA Open Area Optic
A constant current 135° wide beam angle device which can be driven up to 700mA. The face incorporates the design protected, Halo effect, bi-colour LED for green charge healthy and red self-test fault indication.
The LED/43/OA is a discrete emergency LED which is designed for ceiling recess applications. The bezel has a diameter of 50mm and the cut out required is 40mm to 43mm. The main LED can be driven up to 700mA and provides up to 268 lumen. The body also features our Design Protected, Halo effect bicolour LED; green for charge healthy and red for fault indication of self-test functionality. Order Code LED/43/OA/W White (RAL9016) Emergency Device
• • • • • • • 135 ° Beam Angle Standard, Self-Test and DALI Options Available High Output - Up to 268 Delivered Lumen Supplied With Plugs and Leads Requires a 40mm to 43mm Cut-Out Features Halo Effect Bi-Colour Charge LED IP54 Ingress Protection as Standard
The S-ALP/1 range is supplied with a choice of LED emitters andis designed for ceiling recess applications. The non-maintainedemergency driver is supplied with strain relief cables and passesthrough a 40mm to 43mm aperture.

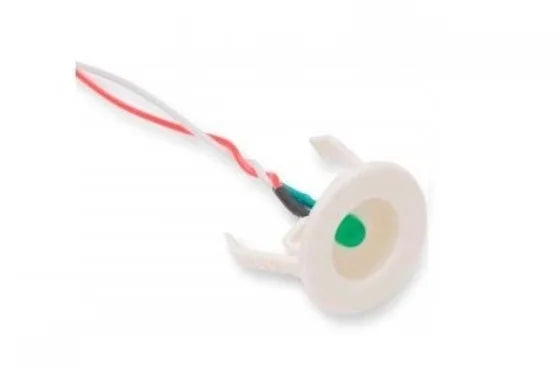

LitePlan CRL/5 LED Holder for Accessories Series from Lite-Plan
Model: CRL/5 LED HOLDER
Technical Specifications
Accessory Type
Lamp Holder
Technology
LED
Manufacturer
Lite Plan
Diameter
6.35 mm
Finish
White
Length
25 mm
Type
Accessory
Downlight Cut Out (mm)
20 mm
Control Gear Technology
LED

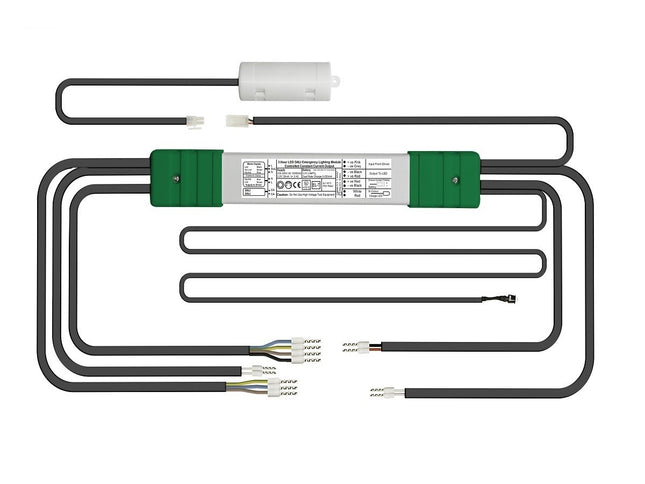

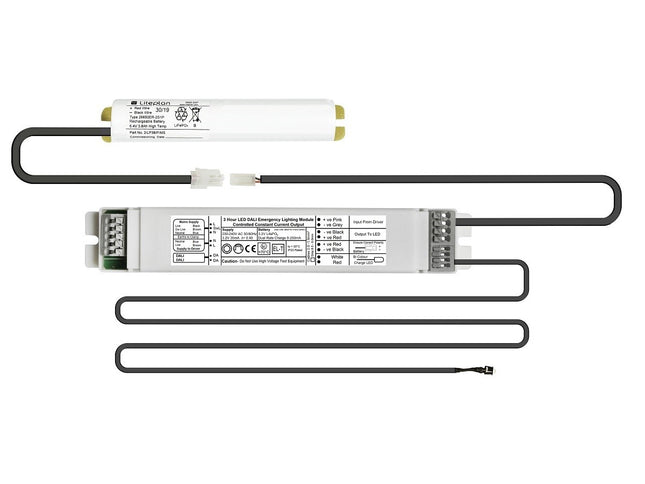

A 3 hour 700mA DALI self-test emergency driver designed for constant current LED devices, supplied complete with the latest extra long life LiFePO4 battery packs. This product has plug and play capability with strain relief on the cables making it suitable for recessing into the ceiling void. In keeping with the DALI standard, this unit will revert to standalone self-test if not connected to a DALI operating system. For a full list of our compatible devices, please see our LED Device range. This product can operate with the LiteMesh wireless system.
DALI 2 Emergency Downlight
3W 6000K, LiFePo4 Battery, IP65, 220-240V
Product supplied maintained - can be wired non-maintained
3 hour emergency duration
Compatible with all DALI 1-1 Systems
43mm Cutout
3-year guarantee
same as E/DLDA/3/OA

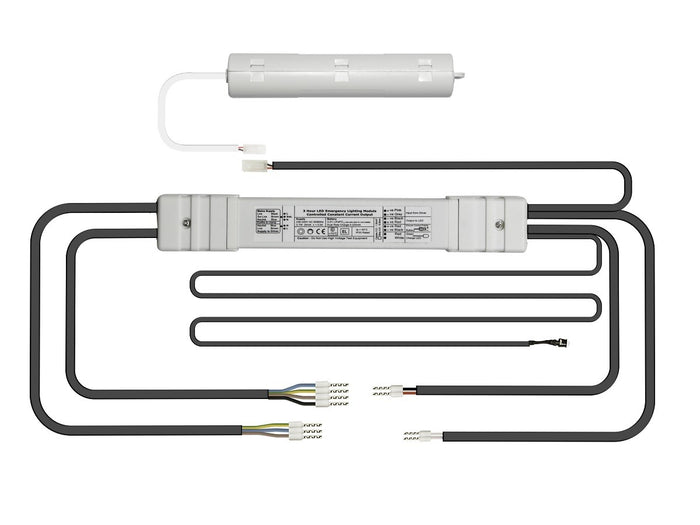

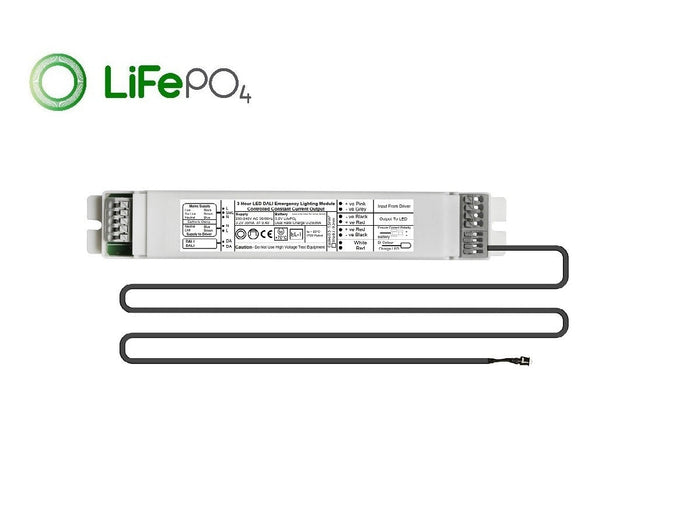

he NLP range, is a high quality 3 hour switchable emergency lighting module designed to suit a wide range of LED types, circuits, and applications.
Liteplan tested and verify full compatibility with Ledison T8, T5 tube lights, GU10 spots and GLS LED bulbs.
KEY ELECTRICAL CHARACTERISTICS
Module, Single Cell Battery and Charge LED Indicator for 6-55 Volt LED Loads
Suitable for Mounting Inside the Luminaire
Slim Module Suitable for Linear Applications
Long Life LiFePO4 Batteries
Strain Relief Module with Fitted Cables
Suitable for a Wide Range of LED Loads
TECHNICAL SPECIFICATIONS
A 3 hour emergency lighting conversion kit which operates with Long Life LiFePO4 batteries. The unit is designed to suit an extremely wide range of LED types and circuits. The NLP/1 automatically adjusts the output LED current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The batteries used with this unit not only provide double the life of traditional emergency lighting batteries, but consume far less power during their operational life.
Mains Supply Voltage
230-240V AC 50/60Hz
Emergency Duration
3 Hours
Recharge Period
24 Hours
LED Current Limit
320mA
Battery Current Limit
1100mA
Cut off Voltage
2.5V
Please note Liteplan no longer make these batteries , an alternative will be sent with the same connector and 4Ah
LitePlan 3.6V 4.5Ah NiCd Battery in Stick Formation
Model: 3-CD45/S/AS
Technical Specifications
Accessory Type
Battery
Manufacturer
Lite Plan
Length
220 mm
Type
Accessory
Batteries
NiCd
Voltage
3.6 Volt
Charging Time
15 Hours
Width
37 mm
