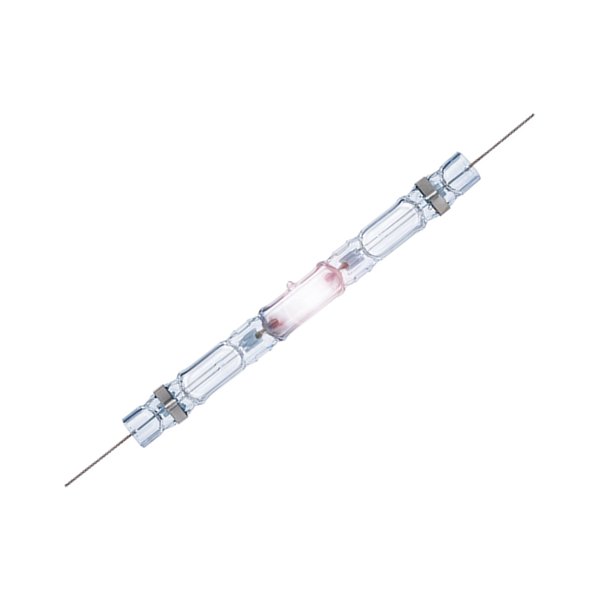

Philips MHN-FC 1000W/ 2000W 928070405130 928075705130

Description

Product Description MASTER MHN-FC Compact quartz metal halide lamps with double pinch Benefits • Allows compact luminaire systems with precision optics for minimal light spill • Good color rendering creates a pleasant ambience with high visual comfort for players and spectators • Continuous spectral distribution offers options for semi-professional stadiums and area lighting Features • Double-pinch concept results in long lifetime • Choice of 1000 W and 2000 W types • Natural white color appearance • Compact light source allows small luminaire design Application • Recreational sports and area floodlighting Warnings and Safety • Use only in totally enclosed luminaire, even during testing (IEC61167, IEC 62035, IEC60598) • The luminaire must be able to contain hot lamp parts if the lamp ruptures • A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner. Product family leaet, 2021, April 26 data subject to change Lighting Lighting Versions MHN-FC 2000 W, 2200 W MHN-FC, 1000W Dimensional drawing D L O A C X Product D (max) D O X L A C (max) MASTER MHN-FC 2000W/740 400V XW 33 mm 25.5 mm 108 mm 58 mm 177 mm 290 mm 357 mm MASTER MHN-FC 1000W/740 230V XW 33 mm 25.5 mm 42.5 mm 58 mm 144 mm 226 mm 290 mm MASTER MHN-FC 2200W/640 400V XW 33 mm 25.5 mm 108 mm 58 mm 177 mm 290 mm 476 mm Approval and Application Energy Efficiency Label (EEL) A+ Controls and Dimming Dimmable No General Information Cap-Base DOUBLEENDED Operating Position P5 Luminaire Design Requirements Bulb Temperature (Max) 950 °C Light Technical Color Designation White (WH) Lumen Maintenance 1000 h (Nom) 90 % Lumen Maintenance 10000 h (Nom) 70 % Lumen Maintenance 2000 h (Nom) 85 % Lumen Maintenance 5000 h (Nom) 75 % Mechanical and Housing Bulb Finish Clear Approval and Application Order Code Full Product Name Energy Consumption kWh/ 1000 h Mercury (Hg) Content (Nom) 928070405130 MASTER MHN-FC 2000W/740 400V XW 2235 kWh 105 mg 928079805130 MASTER MHN-FC 2200W/640 400V XW 2464 kWh 103.5 mg 928075705130 MASTER MHN-FC 1000W/740 230V XW 1144 kWh 85 mg Operating and Electrical (1/2) MASTER MHN-FC Product family leaet, 2021, April 26 2 data subject to change Order Code Full Product Name Lamp Current (EM) (Nom) Voltage (Max) Voltage (Min) Voltage (Nom) 928070405130 MASTER MHN-FC 2000W/740 400V XW 10.11 A 235 V 205 V 222 V 928079805130 MASTER MHN-FC 2200W/640 400V XW 11.00 A 242 V 213 V 230 V Order Code Full Product Name Lamp Current (EM) (Nom) Voltage (Max) Voltage (Min) Voltage (Nom) 928075705130 MASTER MHN-FC 1000W/740 230V XW 8.9 A 145 V 115 V 130 V Operating and Electrical (2/2) Order Code Full Product Name Power (Rated) (Nom) 928070405130 MASTER MHN-FC 2000W/740 400V XW 2032.0 W 928079805130 MASTER MHN-FC 2200W/640 400V XW 2240.0 W Order Code Full Product Name Power (Rated) (Nom) 928075705130 MASTER MHN-FC 1000W/740 230V XW 1040.0 W General Information Order Code Full Product Name Life To 10% Failures (Nom) Life To 20% Failures (Nom) Life To 50% Failures (Nom) Life To 5% Failures (Nom) 928070405130 MASTER MHNFC 2000W/740 400V XW 8000 h 9500 h 12000 h 7000 h 928079805130 MASTER MHNFC 2200W/640 400V XW 5200 h 6500 h 9300 h 4140 h Order Code Full Product Name Life To 10% Failures (Nom) Life To 20% Failures (Nom) Life To 50% Failures (Nom) Life To 5% Failures (Nom) 928075705130 MASTER MHNFC 1000W/740 230V XW 8000 h 9500 h 12000 h 7000 h Light Technical (1/2) Order Code Full Product Name Chromaticity Coordinate X (Nom) Chromaticity Coordinate Y (Nom) Color Code Correlated Color Temperature (Nom) 928070405130 MASTER MHN-FC 2000W/740 400V XW 380 419 740 4200 K 928079805130 MASTER MHN-FC 382 400 640 4100 K Order Code Full Product Name Chromaticity Coordinate X (Nom) Chromaticity Coordinate Y (Nom) Color Code Correlated Color Temperature (Nom) 2200W/640 400V XW 928075705130 MASTER MHN-FC 1000W/740 230V XW 374 366 740 4100 K Light Technical (2/2) Order Code Full Product Name Color Rendering Index (Min) Color Rendering Index (Nom) Luminous Efficacy (rated) (Nom) Luminous Flux (Rated) (Min) Luminous Flux (Rated) (Nom) 928070405130 MASTER MHN-FC 2000W/7 40 400V XW - 60 102 lm/W 190000 lm 210000 lm Order Code Full Product Name Color Rendering Index (Min) Color Rendering Index (Nom) Luminous Efficacy (rated) (Nom) Luminous Flux (Rated) (Min) Luminous Flux (Rated) (Nom) 928079805130 MASTER MHN-FC 2200W/6 40 400V XW 56 60 105 lm/W 208800 lm 232000 lm MASTER MHN-FC Product family leaet, 2021, April 26 3 data subject to change Order Code Full Product Name Color Rendering Index (Min) Color Rendering Index (Nom) Luminous Efficacy (rated) (Nom) Luminous Flux (Rated) (Min) Luminous Flux (Rated) (Nom) 928075705130 MASTER MHN-FC 1000W/7 62 65 91 lm/W 88000 lm 93000 lm Order Code Full Product Name Color Rendering Index (Min) Color Rendering Index (Nom) Luminous Efficacy (rated) (Nom) Luminous Flux (Rated) (Min) Luminous Flux (Rated) (Nom) 40 230V XW MASTER MHN-FC © 2021 Signify Holding All rights reserved. Signify does not give any representation or warranty as to the accuracy or completeness of the information included herein and shall not be liable for any action in reliance thereon. The information presented in this document is not intended as any commercial o„er and does not form part of any quotation or contract, unless otherwise agreed by Signify. All trademarks are owned by Signify Holding or their respective owners. www.lighting.philips.com 2021, April 26 - data subject to change

Philips MHN-FC 1000W/ 2000W 928070405130 928075705130

Product form

SKU: MHNFC1000-PH
Barcode: 21424900

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£191.93 Excl. VAT

(inc. 20% VAT): £230.32

    • Contact us to confirm availability
      Downloads

    Product Description MASTER MHN-FC Compact quartz metal halide lamps with double pinch Benefits • Allows compact luminaire systems with precision... Read more

    Description

    Product Description MASTER MHN-FC Compact quartz metal halide lamps with double pinch Benefits • Allows compact luminaire systems with precision optics for minimal light spill • Good color rendering creates a pleasant ambience with high visual comfort for players and spectators • Continuous spectral distribution offers options for semi-professional stadiums and area lighting Features • Double-pinch concept results in long lifetime • Choice of 1000 W and 2000 W types • Natural white color appearance • Compact light source allows small luminaire design Application • Recreational sports and area floodlighting Warnings and Safety • Use only in totally enclosed luminaire, even during testing (IEC61167, IEC 62035, IEC60598) • The luminaire must be able to contain hot lamp parts if the lamp ruptures • A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner. Product family leaet, 2021, April 26 data subject to change Lighting Lighting Versions MHN-FC 2000 W, 2200 W MHN-FC, 1000W Dimensional drawing D L O A C X Product D (max) D O X L A C (max) MASTER MHN-FC 2000W/740 400V XW 33 mm 25.5 mm 108 mm 58 mm 177 mm 290 mm 357 mm MASTER MHN-FC 1000W/740 230V XW 33 mm 25.5 mm 42.5 mm 58 mm 144 mm 226 mm 290 mm MASTER MHN-FC 2200W/640 400V XW 33 mm 25.5 mm 108 mm 58 mm 177 mm 290 mm 476 mm Approval and Application Energy Efficiency Label (EEL) A+ Controls and Dimming Dimmable No General Information Cap-Base DOUBLEENDED Operating Position P5 Luminaire Design Requirements Bulb Temperature (Max) 950 °C Light Technical Color Designation White (WH) Lumen Maintenance 1000 h (Nom) 90 % Lumen Maintenance 10000 h (Nom) 70 % Lumen Maintenance 2000 h (Nom) 85 % Lumen Maintenance 5000 h (Nom) 75 % Mechanical and Housing Bulb Finish Clear Approval and Application Order Code Full Product Name Energy Consumption kWh/ 1000 h Mercury (Hg) Content (Nom) 928070405130 MASTER MHN-FC 2000W/740 400V XW 2235 kWh 105 mg 928079805130 MASTER MHN-FC 2200W/640 400V XW 2464 kWh 103.5 mg 928075705130 MASTER MHN-FC 1000W/740 230V XW 1144 kWh 85 mg Operating and Electrical (1/2) MASTER MHN-FC Product family leaet, 2021, April 26 2 data subject to change Order Code Full Product Name Lamp Current (EM) (Nom) Voltage (Max) Voltage (Min) Voltage (Nom) 928070405130 MASTER MHN-FC 2000W/740 400V XW 10.11 A 235 V 205 V 222 V 928079805130 MASTER MHN-FC 2200W/640 400V XW 11.00 A 242 V 213 V 230 V Order Code Full Product Name Lamp Current (EM) (Nom) Voltage (Max) Voltage (Min) Voltage (Nom) 928075705130 MASTER MHN-FC 1000W/740 230V XW 8.9 A 145 V 115 V 130 V Operating and Electrical (2/2) Order Code Full Product Name Power (Rated) (Nom) 928070405130 MASTER MHN-FC 2000W/740 400V XW 2032.0 W 928079805130 MASTER MHN-FC 2200W/640 400V XW 2240.0 W Order Code Full Product Name Power (Rated) (Nom) 928075705130 MASTER MHN-FC 1000W/740 230V XW 1040.0 W General Information Order Code Full Product Name Life To 10% Failures (Nom) Life To 20% Failures (Nom) Life To 50% Failures (Nom) Life To 5% Failures (Nom) 928070405130 MASTER MHNFC 2000W/740 400V XW 8000 h 9500 h 12000 h 7000 h 928079805130 MASTER MHNFC 2200W/640 400V XW 5200 h 6500 h 9300 h 4140 h Order Code Full Product Name Life To 10% Failures (Nom) Life To 20% Failures (Nom) Life To 50% Failures (Nom) Life To 5% Failures (Nom) 928075705130 MASTER MHNFC 1000W/740 230V XW 8000 h 9500 h 12000 h 7000 h Light Technical (1/2) Order Code Full Product Name Chromaticity Coordinate X (Nom) Chromaticity Coordinate Y (Nom) Color Code Correlated Color Temperature (Nom) 928070405130 MASTER MHN-FC 2000W/740 400V XW 380 419 740 4200 K 928079805130 MASTER MHN-FC 382 400 640 4100 K Order Code Full Product Name Chromaticity Coordinate X (Nom) Chromaticity Coordinate Y (Nom) Color Code Correlated Color Temperature (Nom) 2200W/640 400V XW 928075705130 MASTER MHN-FC 1000W/740 230V XW 374 366 740 4100 K Light Technical (2/2) Order Code Full Product Name Color Rendering Index (Min) Color Rendering Index (Nom) Luminous Efficacy (rated) (Nom) Luminous Flux (Rated) (Min) Luminous Flux (Rated) (Nom) 928070405130 MASTER MHN-FC 2000W/7 40 400V XW - 60 102 lm/W 190000 lm 210000 lm Order Code Full Product Name Color Rendering Index (Min) Color Rendering Index (Nom) Luminous Efficacy (rated) (Nom) Luminous Flux (Rated) (Min) Luminous Flux (Rated) (Nom) 928079805130 MASTER MHN-FC 2200W/6 40 400V XW 56 60 105 lm/W 208800 lm 232000 lm MASTER MHN-FC Product family leaet, 2021, April 26 3 data subject to change Order Code Full Product Name Color Rendering Index (Min) Color Rendering Index (Nom) Luminous Efficacy (rated) (Nom) Luminous Flux (Rated) (Min) Luminous Flux (Rated) (Nom) 928075705130 MASTER MHN-FC 1000W/7 62 65 91 lm/W 88000 lm 93000 lm Order Code Full Product Name Color Rendering Index (Min) Color Rendering Index (Nom) Luminous Efficacy (rated) (Nom) Luminous Flux (Rated) (Min) Luminous Flux (Rated) (Nom) 40 230V XW MASTER MHN-FC © 2021 Signify Holding All rights reserved. Signify does not give any representation or warranty as to the accuracy or completeness of the information included herein and shall not be liable for any action in reliance thereon. The information presented in this document is not intended as any commercial o„er and does not form part of any quotation or contract, unless otherwise agreed by Signify. All trademarks are owned by Signify Holding or their respective owners. www.lighting.philips.com 2021, April 26 - data subject to change
