LDM – LED Array Emergency Control Gear
LDM Range
The ELP ENEC marked LDM emergency LED control gear allows emergency lighting operation of high-power LED modules when used in conjunction with the standard mains voltage LED control gear.
The emergency control gear incorporates a module/charger and a high temperature Nickel Cadmium or Lithium Iron Phosphate (LiFePO4) battery. In the event of a mains failure an integral 2-pole relay disconnects the LED lighting load from the mains control gear and then connects it to the emergency control gear which operates the LED module at an optimum light output for the rated duration.
The LED current in emergency mode is automatically adjusted for maximum light output and is constant for the entire rated duration.
Smart charging of both Nickel Cadmium and Lithium Iron Phosphate batteries. NB: Lithium Iron Phosphate batteries offer long life (up to 10 years).
Details are logged of any mains failures to assist in the diagnostics of any site issues.
The LDM range is available with fully interoperable DALI control and reporting function. These DALI versions indicated by the suffix D, also provide automatic Self-Test when no DALI bus is connected.
It is important to note that some LED mains control gear should not be operated with an open circuit load, to overcome this problem the LDM range features a live in/ live out relay which ensures the load is in place before the mains driver is powered up.
In Self-test mode the function and duration tests will take place at randomised times. If required, testing can be programmed to occur at a designated time by turning the unswitched supply off and on 3 times in 10 seconds at the required time. Note: The function test will occur weekly at the same time.
SECTION
SUBJECT
PLASTIC HOUSED MODULE
Environmental
Protection against electric shock
Secondary outputs - SELV for output voltage < 100V
Ingress protection
IP20
Module rated operating ambient temperature
-20°C to 50°C
Battery rated operating ambient temperature
0°C to 55°C
Maximum case temperature
65°C
Mains Operation
Rated voltage supply
220/240V AC
Mains frequency
50/60Hz
Mains supply current
<18mA
Mains supply power
4 watts
Power factor
0.53C
Mains overvoltage protection
320 volts for 1 hour
Indicator LED
2 wire green colour - standard LDM2 wire red/green - DALI LDM
Maximum power that can be switched via relay contacts
150 watts
Maximum current that can be switched via relay contacts
3 amps
Maximum voltage that can be switched via relay contacts
250V AC/220V DC
Emergency Operation
Emergency duration
1 or 3 hours
Battery chemistry type
NiCd or LiFePO4
Number and type of high temperature cellsLDM90 and LDM90D
4 x NiCd 1.8Ah sub-C cells
LDM200 and LDM200D
5 x NiCd 1.8Ah sub-C cells
LDM90MO, LDM200MO, LDM90MOD and LDM200MOD
2 x LiFePO4 2.1Ah 22650 cells
LDM90HO, LDM200HO, LDM90HOD and LDM200HOD
2 x LiFePO4 3Ah 26650 cells
Battery recharge period
<24 hours
Time to full illuminance
<0.5 seconds
Short-circuit-proof battery connection, polarity reversal and deep discharge protection
Battery charge currentNiCd 1.8Ah sub-C cells 2 stage charge - boost/trickleLiFePO4 2.1Ah and 3Ah cells - voltage dependent, constant current
100mA/70mA ±10%0 - 150mA
Battery discharge current range (at nominal battery voltage)NiCd 1.8Ah sub-C cellsLiFePO4 2.1Ah 26650 cellsLiFePO4 3Ah 26650 cells
360mA to 560mA (450mA)475mA to 735mA (550mA)650mA to 1000mA (750mA)
Module operating current - see separate graphs.LDM90 and LDM90D
134mA to 19mA ±10%
LDM90MO and LDM90MOD
200mA to 30mA ±10%
LDM90HO and LDM90HOD
258mA to 41mA ±10%
LDM200 and LDM200D
33mA to 10mA ±10%
LDM200MO and LDM200MOD
40mA to 12mA ±10%
LDM200HO and LDM200HOD
57mA to 18mA ±10%
Module output voltage range (nominal power)LDM90 and LDM90D
12V to 90V (1.6W)
LDM90MO and LDM90MOD
12V to 90V (2.6W)
LDM90HO and LDM90HOD
12V to 90V (3.5W)
LDM200 and LDM200D
60V to 200V (2.0W)
LDM200MO and LDM200MOD
60V to 200V (2.4W)
LDM200HO and LDM200HOD
60V to 200V (3.5W)
EOFI - dependant on LED module type
0.12 to 0.25
A record is kept of the number and length of emergency and mains operations - this information can be downloaded via the internal programming connector
Mechanical
Module outside dimensions
178mm (L) x 30mm (W) x 21mm (H)
Fixing centres
174mm
Electrical connections
Push wire terminals
Standards Compliance
EN61347-1, EN61347-2-7, EN61347-2-13 and EN62384
Yes
EN62034*, EN62386-101*, EN62386-102* and EN62386-202*
Yes
EN55015
Yes
EN61547
Yes
Marks CE
Yes
This is an Emergency Lighting Products (ELP) OM/421/T5/TI emergency module to operate a range of lamps with wattages between 11 and 24w. This module should be used with a 4 cell emergency battery. This module has been designed to suit all emergency lighting applications that require an inverter and battery. It has compact dimensions and push-wire/IDC terminals to simplify assembly.
This is an Emergency Lighting Products (ELP) OM/535/T5/TI emergency module to operate a range of lamps with wattages between 11 and 42w. This module should be used with a 5 cell emergency battery. This module has been designed to suit all emergency lighting applications that require an inverter and battery. It has compact dimensions and push-wire/IDC terminals to simplify assembly.
This Emergency Lighting Products (ELP) OM/539-54/T5/TI emergency module supports lamp wattages from 39 to 80W and is compatible with a 5-cell emergency battery. Designed for various emergency lighting setups requiring both an inverter and battery, it features a compact design and push-wire/IDC terminals for easy installation.

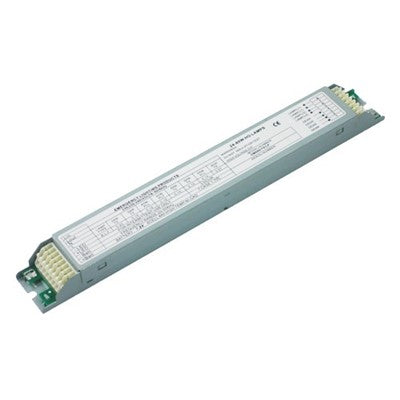

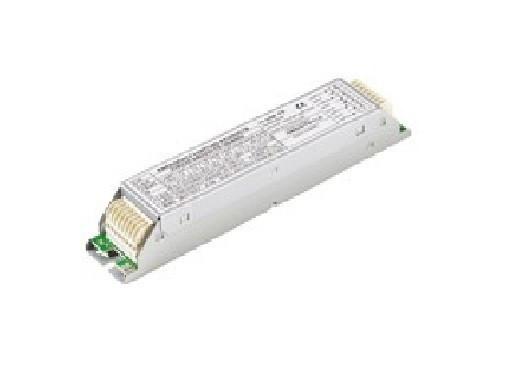

This is an Emergency Lighting Products (ELP) OM/680/LP emergency module to operate a range of lamps with wattages between 24 and 80w. This module should be used with a 6 cell emergency battery. This module has been designed to suit all emergency lighting applications that require an inverter and battery. It has compact dimensions and push-wire/IDC terminals to simplify assembly.
LP OM/680/LP 13-80W Emergency Module
LOW PROFILE OM/LP MODULES
The OM/LP Modules have been designed to suit all common T5 fluorescent luminaires. the OM680/LP covers all high output lamps from 13 to 80Watts and for specific operation of lamps up to 40Watts there is the OM635/LP. Ballast Lumen Factors and basic performance of the OM680LP module is identical to the standard OM680 module. the compact dimensions provide flexibility for internal component layout and the pushwire terminals simplify manual or robotic assembly. Case temperature (tc) rated at 70°C. the OM635/LP & OM680/LP low profile modules are fully compliant with en61347 and en60925.
Operates with a 6 Cell 7.2V 4Ah battery (sold separately) please link below selecting the 3+3
