ELP RLD/M3/DALI/CW AD Although recessed SignalLED luminaires have a similarappearance to conventional recessed exit signs these LEDfittings are much smaller and make installations far moreattractive. The housing has adjustable arms to simplify installation intodifferent thickness supporting surfaces and a white ceilingplate. As with the suspended SignalLED luminaires the recessedversions are supplied with integral Maintained emergencylighting control gear powering 15 high brightness white LEDswhich clearly and evenly illuminate the safety sign legends

Read more less

The ELT BE-436-2 is a non dimmable high frequency ballast to run: 3 or 4 x 18/30/36w T8 Fluorescent Tubes, 18/36w long single turn compact fluorescent tubes or 24w T5 Fluorescent Tubes. This ballast can also be used to run 3 x 39w T5 fluorescent tubes.   Product Details 3 & 4 Lamp Electronic Ballast ELT 3 & 4 lamp electronic high frequency ballasts for controlling T8 / TC-L / T5 fluorescent lamps. BE 436-2 ballasts con be connected to three or four lampsModel BE 436 is designed with independent lampsClass I ballast for built-in useIgnition with preheating in cathodes for a long life in the lamp, without flashes or flickeringConstant total power and stabilized luminous fluxHigh frequency operationHigh energy efficiencyCorrected stroboscopic effectAllows the use of Class I and Class II luminaires without screening to earth in the lampsPermitted voltage 198-264V, 50-60HzSupports 2 hours at 350V (A/C)Rapid connection connector with fixing spring. Circular conductor section: 0.5-1.5 mm2 Standards EN 61347-1-2-3, EN 60929, EN 61000-3-2, EN 55015, EN 61547. Specifications Attribute Value Wattage 18 W, 24 W, 30 W, 36 W, 39 W Ballast Type Electronic Supported Lamp Shape T5, T8, TC-L Supported Lamp Type Compact Fluorescent, Fluorescent Voltage Rating 220 → 240 V Dimmable No High Frequency Yes Length 360 mm Height 28mm Minimum Operating Temperature -20°C Maximum Operating Temperature +50°C

Read more less

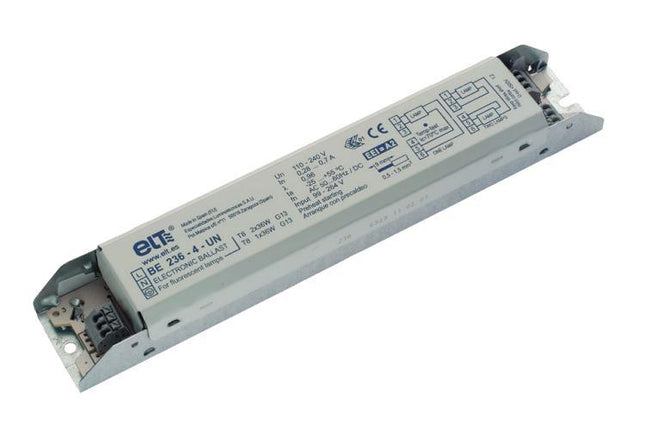

Obsolete, If using with water treatment lamps please consider the below as a viable alternative.  Possible Alternative   Linear Electronic ballast T8, 2 x 15/18W, 110-260v

Read more less

Obsolete, If using with water treatment lamps please consider the below as a viable alternative.  Possible Alternative   Linear Electronic ballast T8, 2 x 15/18W, 110-260v

Read more less

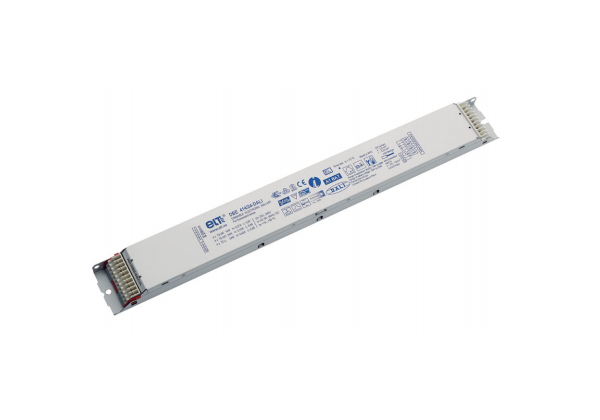

ELT BE 3/4x14w ballast to run 3 or 4 x 14w, T5 lamps. This ballast has a normal average life of 50,000 hours. Dimensions: W40 x H28 x L230mm This class 1 ballast has preheated starting function for longer lamp life and also comes with an automated cut off function if lamp failure occurs. Connector cross section is 0.5 - 1.5 mm2.

Read more less

Mains Dimmable LED Driver 4-10w 500ma

Read more less

Vossloh Schwabe 14-35 Watt Twin High Frequency T5 Ballast from Vossloh Schwabe Model: ELXC235.857 Vossloh Schwabe 14-35 Watt Twin High Frequency T5 Ballast Technical Specifications Control Gear Type High Frequency Accessory Type Ballast Wattage 35 W Manufacturer Vossloh Schwabe Dimming? Non-Dimmable No. Of Lamps Twin (2x) Fixing Centers 350mm Height 20 mm Lamp 2 x 14/21/28.35 watt Length 360 mm Type Control Gear Terminals 7 Width 30 mm Compatible Lamp Type T5 Control Gear Technology Fluorescent

Read more less

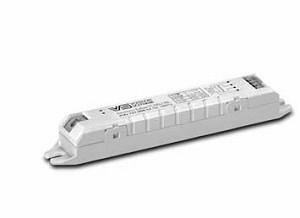

Vossloh Schwabe Electronic ballast to run 1 x 21w T5 lamps - 188664 Electronic ballast for compact fluorescent lamp and T5 lamps. Electronic built-in ballastCasing: heat-resistant polyamidePower factor: approx. 0.6 (depending on the lamp output)DC voltage operation: 198 - 264 VPush-in terminals with push-button: 0.5 - 1.5 mm²RFI-suppressedFor luminaires of protection class I and IIDegree of protection: IP20Fixing slots for screws M4For lighting systems with high switching frequency ( > 5/day)EOL shut down approved acc. to EN 61347 Test 2Lamp type: TC-DEL/-TEL, T5Output [W]: 13, 18 for compact fluorescent lamps TC-DEL/-TEL (G24q-1/GX24q-1)Output [W]: 14, 21 for T5 lamps (G5)Lamp number: 1Voltage AC [V]: 220 - 240Frequency [Hz]: 50 - 60Ambient temperature ( °C) –15 to 55

Read more less

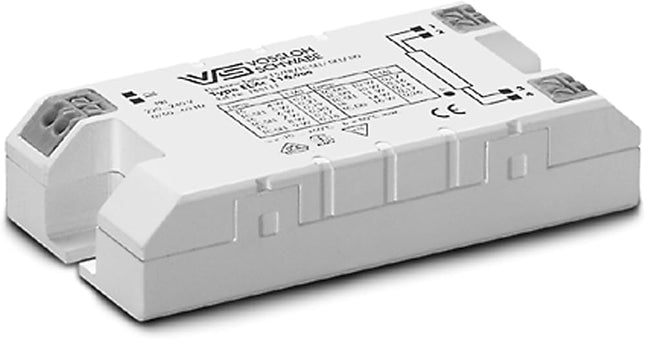

Vossloh 188661 EVG, ELXs116.900, ISE=A1/A2, 18x41x80mm, 220-240V, 50/60Hz, TC-SE   alternative to the  qteco11416 pc1516basic

Read more less

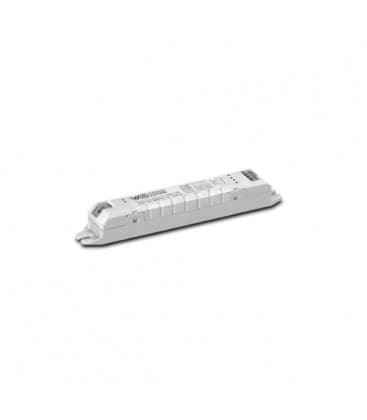

Electronic ballast for compact fluorescent lamps , T5 and T8 lamps. Electronic built-in ballastCasing: heat-resistant polyamidePower factor: approx. 0.6 (depending on the lamp output)DC voltage operation: 198 - 264 VPush-in terminals with push-button: 0.5 - 1.5 mm²RFI-suppressedFor luminaires of protection class I and IIDegree of protection: IP20Fixing slots for screws M4For lighting systems with high switching frequency ( > 5/day)EOL shut down approved acc. to EN 61347 Test 2Lamp type: TC-F/-L, T5, T8, T-R5Output [W]: 18, 24 for compact fluorescent lamps TC-F/-L (2G10/2G11)Output [W]: 22 for compact fluorescent lamps T-R5 (2GX13)Output [W]: 24 for T5 lamps (G5)Output [W]: 14, 15, 18 for T8 lamps (G13)Lamp number: 1Voltage AC [V]: 220 - 240Frequency [Hz]: 50 - 60Ambient temperature ( °C) –15 to 55

Read more less

EM converterLED BASIC 202 MH/LiFePO4 50V M converterLED BASIC MH/LiFePO4 50 V BASIC version Note: Supply of control gear with duration link in 3 hours position. Remove duration link for duration of 1 h. Duration link must be set before battery and mains connection. Product description Self contained emergency lighting LED driver for manual testing For LED modules with a forward voltage of 10 – 54 V SELV for output voltage < 60 V DC Low profile casing (21 x 30 mm cross-section) For luminaire installation Compatible with Tridonic's LLE FLEX modules (ADV, EXC) Nominal lifetime up to 100,000 h 5 years guarantee Properties Non maintained operation 1 or 3 h rated duration Operating time selectable with plug (duration link) Compatible with all dimmable and non-dimmable constant current LED driver (see data sheet, LED driver compatibility) 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver Automatic shutdown of output if LED load is out of range Constant power output Maximum light output for all LED modules Electronic charge system Deep discharge protection Short-circuit-proof battery connection Polarity reversal protection for battery provided by 3-pole connector Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries) Batteries High-temperature cells NiMH or LiFePO4 batteries LA or 18650 cells 4-year design life for NiMH batteries 1 years guarantee for NiMH batteries 4 – 8 years design life for LiFePO4 batteries 3 years guarantee for LiFePO4 batteries For battery compatibility refer to data sheet, battery selection

Read more less

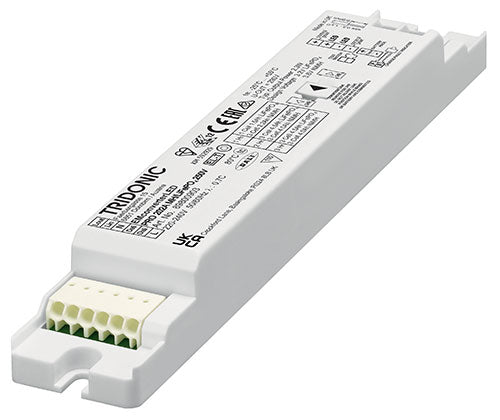

EM converterLED PRO MH/LiFePO4 250 V PRO version Note: LED driver supplied with duration link in 3 hours position. Duration link must be set before battery and mains connection. Product description Emergency lighting LED driver with DALI interface and automatic test function For self-contained emergency lighting For LED modules with a forward voltage of 50 – 250 V Low profile casing (21 x 30 mm cross-section) For luminaire installation Nominal lifetime up to 100,000 h 5 years guarantee Properties Non maintained operation DALI interface for controlled testing and monitoring 1, 2 or 3 h rated duration Operating time selectable with plug (duration link) Compatible with most constant current LED drivers (see data sheet, LED driver compatibility) 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver Automatic shutdown of output if LED load is out of range Constant power output Two-colour status display LED Electronic charge system Deep discharge protection Short-circuit-proof battery connection Polarity reversal protection for battery provided by 3-pole connector Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries) Self-test: Status of the battery Status of the LED Function test Duration test Batteries High-temperature cells NiMH or LiFePO4 batteries LA or 18650 cells 4-year design life for NiMH batteries 1 years guarantee for NiMH batteries 4 – 8 years design life for LiFePO4 batteries 4 years guarantee for LiFePO4 batteries For battery compatibility refer to datasheet, battery selection

Read more less
