HRI-TS 2000W/N/L. Radium 2000 watt long arc lamp used in Sports Facilities and Stadia. Length – 274mm. Base – K12s. Colour Temp (k) – 4100. Life – 8000 hrs. Availability – In Stock. HRI-TS 2000W/N/L. Brand – Radium. Colour – Cool White. Article number – 32416582 H2KNL Also known as a HRI-TS 2000W/N/L/400/K12S. Data Sheet – Radium HRI-TS 2000W/N/L Recommended Ballast, Ignitor and Capacitor for this lamp.

Read more less

Obsolete the below alternative will be sent   https://www.easy-controlgear.com/products/mackwell-s3che-mw-emergency-module-58w-mackwell-3-cell?_pos=1&_sid=2cccf60fe&_ss=r 4-36w 3hr emergency lighting module Volts:220 - 240 v Watts:4 x 36 w Length:165 mm Height:29 mm Width:45 mm Weight:0.324kg Technology: Electronic Size:165 x 45 x 29 mm Other codes: HRN/3

Read more less

The Liteplan HRN 4 Conversion Kit is a 3hr emergency lighting conversion kit suitable for 4-58w fluorescent lamps. This unit is to suit multiple 4-pin fluorescent lamp wattages and circuits. 4-pole change over relay plus additional 5th pole for HF ballast isolation. This conversion kit has these additional benefits :- 4-pole changeover relay, Additional 5th pole relay, Deep discharge protection, Low profile enclosure, Constant current charger, High temperature niCd cells. The HRN range is supplied in conversion kit form. They are supplied as standard with the following parts :- 500mm Green charge healthy LED indicator and mounting collar, 3/4/5 Cell kits are supplied with NiCd batteries and AMP irreversible battery connector.

Read more less

Obsolete you will be sent  ALTERNATIVE   For use with PLL55W DuluxL  55W Biax L 55W  Lynx L 55W Requires a 6 Cell battery  Battery

Read more less

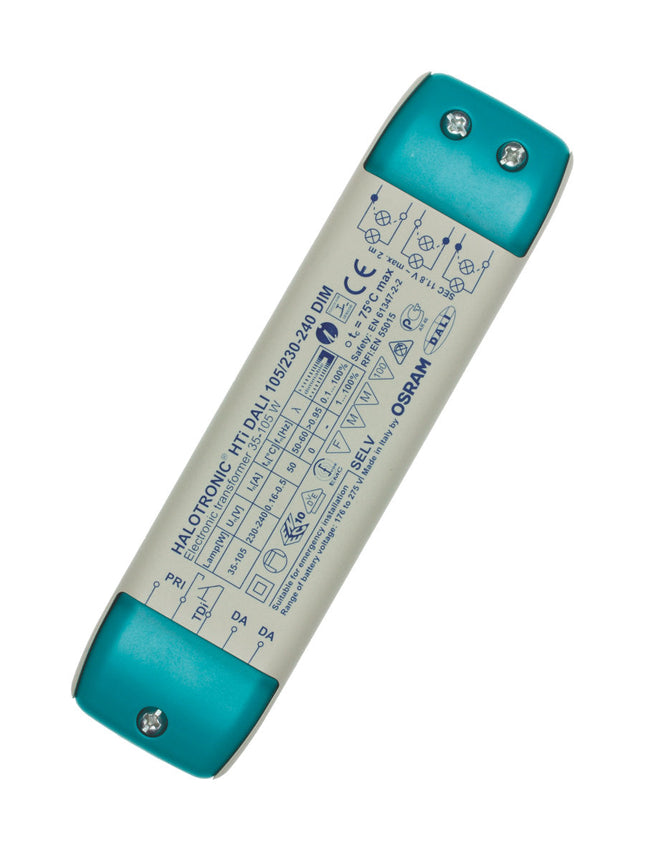

Product family benefits Very low power consumption thanks to high efficiency Through-wiring possible on the primary side Large temperature range Protective operation throughout the entire partial-load range for long lamp life Areas of application Effect and accent lighting Living rooms Object lighting Conference rooms Restaurants Recessed and surface-mounted ceiling luminaires Shop lighting Event rooms Technical Data Electrical data Lamp wattage 35…105 W Maximum output power 105 W Line current 0.45 A Input voltage DC 176…275 V Nominal voltage 230…240 V Power factor λ 0.95 Operating frequency 40 kHz Nominal output voltage 11.6 / 11.4 V Mains frequency 50…60 Hz System wattage 108.00 W Efficiency in full-load 95 % Max. ECG no. on circuit breaker 10 A (B) 23 Galvanic isolation primary/secondary 4.00 kV Max. ECG no. on circuit breaker 16 A (B) 38 Networked standby power 0.50 W Inrush current 0.6 A Dimensions & weight Length 170.0 mm Width 44.0 mm Height 34.0 mm Wire preparation length, input side 8.0 mm Wire preparation length, output side 8.0 mm Mounting hole spacing, length 140.0 mm Product weight 160.00 g Temperatures & operating conditions Ambient temperature range -20…+50 °C Maximum temperature at tc test point 75 °C Additional product data Design / version Long with cable clamp Capabilities Dimming method Phase cut-off Dimming interface DALI or Touch DIM/Touch DIM Sensor Overload protection Automatic reversible Overheating protection Automatic reversible Short-circuit protection Automatic reversible Max. cable length to lamp/LED module 2.0 m Cable/wire types, input side H03VV-F 2x0.50 / H03VV-F 2x0.75 / H03VVH2-F 2x0.75 / H05VVH2-F 2x0.75 / H05VV-F 2x2.5 / H05VV5G 1.5 / NYM-O 2x1.5 / NYM-J 3x1.5 / NYM-J 5x1.5 mm² Cable/wire types, output side H03VV-F 2x0.75 / H05VV-F 2x0.75 / H05VV-F 2x1.5 / H05VV-F 2x2.5 / NYM-J 3x1.5 / NYM-J 3x2.5 / NYM-O 2x1.5 mm² Dimmable Yes Dimming range 0.1…100 % No-load proof Yes Intended for no-load operation No Certificates & standards Approval marks – approval E1 approval / VDE / VDE-EMC Standards Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to EN 61347-2-2 Type of protection IP20 Logistical data Commodity code 850440909000 Environmental information Date of Declaration 10-11-2021 Primary Article Identifier 4008321420633 Candidate List Substance 1 Lead CAS No. of substance 1 7439-92-1 Safe Use Instruction The identification of the Candidate List substance is sufficient to allow safe use of the article. Declaration No. in SCIP database 1b7fa333-bfff-4d5d-a686-eec22e4e177d

Read more less

Constant current designWide input range 180~528VACThree in one dimming function (0~10Vdc or 10V PWM signal or resistance)Protections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Built-in active PFC functionHigh efficiency up to 90.5%Cooling by free air convectionIP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry/ damp/ wet locations5 year warrantyMore Information Manufacturer Mean Well Output Wattage (W) 65 Output Current 350mA Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 18~186 Dimensions 189x 61.5x 36.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?60% load) ; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC, 254~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-13, ENEC EN61347-1, EN61347-2-13, EN62384, independent, IP67 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVGC-65-spec.pdf

Read more less

Constant current designWide input range 180~528VACOCP point adjustable through internal potentiometerProtections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Built-in active PFC functionHigh efficiency up to 90.5%Cooling by free air convectionIP65 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry/ damp/ wet locations5 year warrantyMore Information Manufacturer Mean Well Output Wattage (W) 65 Output Current 500mA Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 13~130 Dimensions 189x 61.5x 36.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?60% load) ; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC, 254~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-13, ENEC EN61347-1, EN61347-2-13, EN62384, independent, IP65 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVGC-65-spec.pdf

Read more less

Hytronik HC005S Microwave Sensor

Read more less

HED2040-A  is a constant current & voltage Dali LED driver. It also offer other dimming options like 1-10V dimming and Switch-Dim.  It has a built in DIP switch which allows easy multiple LED current and voltage selection options. Some of the product highlights are : Automatic output reduction 80%–60%–40% against overheat Failure DALI feedback Flicker-free dimming from 100%~30% In compliance with DALI 2 standard DALI and switch-Dim can be used at the same time

Read more less

Hytroniks HDD2200 DALI Dimmer | Trailing Edge | Wall Junction Box For use in upgrade retrofit of trailing edge phase dimming controls, this dimmer will convert DALI control signals to the trailing edge drivers or transformers. It can realise savings on installation and wiring costs and will also reduce unnecessary waste of electronic equipment, making it an environmentally sound solution for a lighting control upgrade.

Read more less

Product description Ready-for-use resistor to set output current value Compatible with LED driver featuring I-select 2 interface; not compatible with I-SELECT (generation 1) Resistor is base insulated Resistor power 0.25 W Current tolerance ± 2 % additional to output current tolerance Compatible with LED driver series PRE and EXC Show more

Read more less

Constant Current mode outputFlicker free designProtections: Short circuitOther features:Plastic housing with class II designBuilt-in active PFC functionNo load power consumption <0.5W (Blank-Type)Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output3 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 45.15 Output Current 1050mA Dimmable (Type) Yes Output Voltage Range (V) 26~43 DC Output Adjustment 26-43V Dimensions 120x 75x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 90-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+85°C PDF Datasheet IDLC-45-SPEC.pdf

Read more less
