Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to dark for every fixture LEDcode2: connects to integrated digital accessories, supports location-based IoT applications and enables wired and wireless lighting control through LEDcode peripheral devices NTC interface for robust thermal management

Read more less

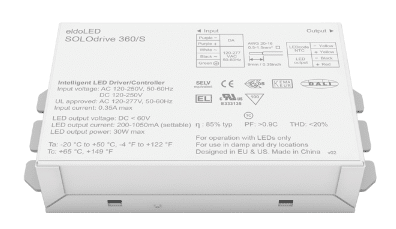

ELDOLED SOLOdrive 360S

Read more less

Built-in active PFC function Dali Dimmable Protections: Short circuit/ Over Current/ Over Loading Other features: IP20 Design for Indoor Installations Dimming function : Built-in Dali interface push dimming Suitable for intelligent LED lighting Suitable for dry locations 3 years warrantyMore Information Manufacturer Ecopac Power Output Voltage 24 Dimensions 80x 36x 23 EMC Standards Compliance to EN55015, EN61000-3-2-3 (>50% load) Compliance to EN61000-4-2,3,4,5,6,11(surge 4KV) Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-10-D UP.pdf

Read more less

  ELED-10-C100/450DP2 Features: 10W DALI2 and Push Dimming Multiple-Stage Output Current LED DriveFeatures: • Constant Current mode output with multiple levels selectable by dip switch• DALI 2 dimming function (IEC62386)• AC input: 100-277VAC• Built-in active PFC function• Efficiency up to 79%• Protections: Short circuit/ Over load/Over temperature• Cooling by free air convection• Suitable for intelligent LED lighting   ELED-10-C100/450DP2(450mA) ELED-10-C100/450DP2(400mA) ELED-10-C100/450DP2(350mA) ELED-10-C100/450DP2(300mA) ELED-10-C100/450DP2(250mA) ELED-10-C100/450DP2(200mA) ELED-10-C100/450DP2(150mA) ELED-10-C100/450DP2(100mA) Wattage 10 10 10 10 10 8.4 6.3 4.2 Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC Output Current 450mA 400mA 350mA 300mA 250mA 200mA 150mA 100mA Output Voltage 3~22 3~25 3~29 3~33 3~40 3~42 3~42 3~42 Dimensions 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm Working Temperature -40~60°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

Read more less

ELED-10-C100/450V Series0-10V Dimmable Constant Current LED Drivers 10W Download Datasheet ELED-10-C100/450V(450mA)ELED-10-C100/450V(4000mA)ELED-10-C100/450V(350mA)ELED-10-C100/450V(300mA)ELED-10-C100/450V(250mA)ELED-10-C100/450V(200mA)ELED-10-C100/450V(150mA)ELED-10-C100/450V(100mA)Wattage1010101010101010Input Voltage100~277VAC100~277VAC100~277VAC100~277VAC100~277VAC100~277VAC100~277VAC100~277vVACOutput Current450mA400mA350mA300mA250mA200mA150mA100mAOutput Voltage Options3~223~253~293~333~403~423~423~42Dimensions135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mm135 x 30x 20 mmWorking Temperature-40~+60°CSafety StandardsEN61347-1, EN61347-2-13, UL8750EMC StandardsCompliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

Read more less

Constant Voltage Design 0-10V Dimmable Protections: Short circuit/ Over Voltage/ Overload Other features: Universal AC input/ Full range IP66 design for indoor or outdoor installations Built-in PFC function Cooling by free air convection Over 83% efficiency 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage 12V Dimmable (Type) 0-10V Dimensions 230x 68.5x 44 EMC Standards Compliance to EN55015, EN61000-3-2 (>50% load) Compliance to EN61000-4-2,3,4,5,6,11 EN61547 A light industry level Input Voltage 100-265VAC Safety Standards EN61347-2-13, IP66 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-100 0~10V Series.pdf

Read more less

Constant Voltage DesignDali DimmableProtections: Short circuit/ Over Voltage/ Over TemperatureOther features:Dimming range from 0.1% to 100%Range 100-265VACBuilt-in PFC functionIP66 design for indoor or outdoor installations87% efficiency3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage 24V Dimmable (Type) DALI Dimensions 230x 70x 44 EMC Standards Compliance to EN55015, EN61000-3-2 (>50% load) Compliance to EN61000-4-2,3,4,5,6,11 (Surge 4KV) Input Voltage 100-265VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-100-Dali Series.pdf

Read more less

Constant Voltage Design0-10V DimmableProtections: Short circuit/ Over Voltage/ OverloadOther features:Universal AC input/ Full rangeIP66 design for indoor or outdoor installationsBuilt-in PFC functionCooling by free air convectionOver 83% efficiency3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage 24V Dimmable (Type) 0-10V Dimensions 230x 68.5x 44 EMC Standards Compliance to EN55015, EN61000-3-2 (>50% load) Compliance to EN61000-4-2,3,4,5,6,11 EN61547 A light industry level Input Voltage 100-265VAC Safety Standards EN61347-2-13, IP66 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-100 0~10V Series.pdf

Read more less

ELED-100-DP2 Series Features: Features: • Constant voltage/ PWM Output (NFC regulation)• DALI & Push dimming function• AC input: 200-240VAC• Built-in active PFC function• Efficiency up to 89%• Protections: Short circuit/ Over load/Over temperature• Cooling by free air convection• IP66 design for indoor and outdoor installation.• Suitable for intelligent LED lighting   Suitable replacement for  the Ansell  ADDIM100/24V/DD ELED-100-12DP2 ELED-100-24DP2 Wattage 100 100 Input Voltage 100~277VAC 100~277VAC Output Current 8.34 4.17 Output Voltage 12 24 Dimensions 231x 78 x 25.1 mm 231x 78 x 25.1 mm Working Temperature -40~60°C Safety Standards EN61347-1, EN61347-2-13, EN62493, IP66 EMC Standards Compliance to EN55015, EN61000-3-2, EN61000-3-3 (≥60% load)

Read more less

  • Constant voltage/ PWM Output• Leading & Trailing edge dimmable• AC input: 200-240VAC• Built-in active PFC function• Efficiency up to 85%• Protections: Short circuit/ Over loading/Over current/ Over temperature• Full protection aluminium housing• Cooling by free air convection• Suitable for LED lighting and moving

Read more less

Constant Voltage Design 12V or 24V Output Dimmable using leading edge & trailing edge Triac Dimmers PWM Output 3 Years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage Choose Option Dimmable (Type) Triac Leading edge & Trailing edge Dimensions 230x70x46mm EMC Standards EMI according to EN55015, EMS according to EN61000-3-2; EN61000-3-3 Input Voltage 180-264VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-100P-T.pdf

Read more less

ELED-10P-C100-450T Series Features: Features: • Constant Current mode output with multiple levels selectable by dip switch • Dimming function: Triac/phase cut dimming • Work with leading or trailing edge Triac dimmer • (ON key: leading edge; 1 key: trailing edge) • AC input: 200-240VAC • Built-in active PFC function • Efficiency up to 75% • IP20 design for indoor installation • Full protection plastic housing easy installation • Protections: Short circuit/ Over load • Cooling by free air convection • Suitable for LED lighting and moving sign applications • Strong compatibility, flicker-free dimming Spec ELED-10P-C100-450T(C450mA) ELED-10P-C100-450T(C400mA) ELED-10P-C100-450T(C350mA) ELED-10P-C100-450T(C300mA) ELED-10P-C100-450T(C250mA) ELED-10P-C100-450T(C200mA) ELED-10P-C100-450T(C150mA) ELED-10P-C100-450T(C100mA) Wattage 10 10 10 10 10 8.4 6.3 4.2 Input Voltage 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC Output Current 450 400 350 300 250 200 150 100 Output Voltage 3~22 3~25 3~28 3~33 3~40 3~42 3~42 3~42 Dimensions 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm Working Temperature -40~60°C Safety Standards EN61347-1, EN61347-2-13, UL8750 EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B
