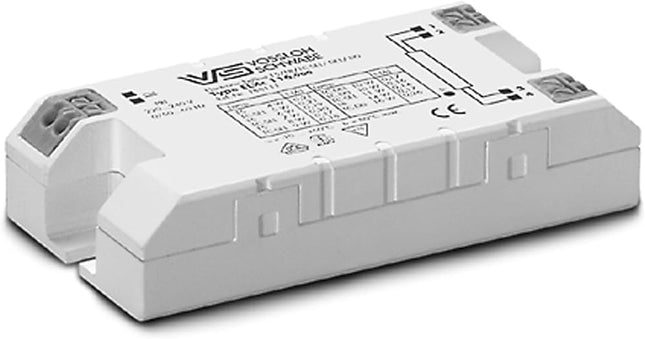

Vossloh 188661 EVG, ELXs116.900, ISE=A1/A2, 18x41x80mm, 220-240V, 50/60Hz, TC-SE   alternative to the  qteco11416 pc1516basic

Read more less

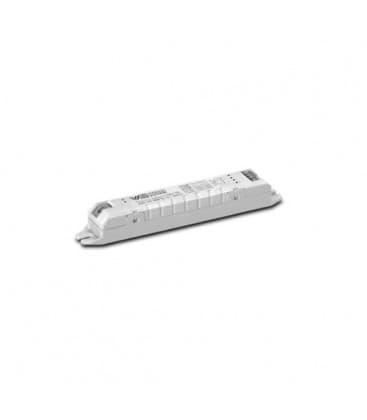

Electronic ballast for compact fluorescent lamps , T5 and T8 lamps. Electronic built-in ballastCasing: heat-resistant polyamidePower factor: approx. 0.6 (depending on the lamp output)DC voltage operation: 198 - 264 VPush-in terminals with push-button: 0.5 - 1.5 mm²RFI-suppressedFor luminaires of protection class I and IIDegree of protection: IP20Fixing slots for screws M4For lighting systems with high switching frequency ( > 5/day)EOL shut down approved acc. to EN 61347 Test 2Lamp type: TC-F/-L, T5, T8, T-R5Output [W]: 18, 24 for compact fluorescent lamps TC-F/-L (2G10/2G11)Output [W]: 22 for compact fluorescent lamps T-R5 (2GX13)Output [W]: 24 for T5 lamps (G5)Output [W]: 14, 15, 18 for T8 lamps (G13)Lamp number: 1Voltage AC [V]: 220 - 240Frequency [Hz]: 50 - 60Ambient temperature ( °C) –15 to 55

Read more less

EM converterLED BASIC 202 MH/LiFePO4 50V M converterLED BASIC MH/LiFePO4 50 V BASIC version Note: Supply of control gear with duration link in 3 hours position. Remove duration link for duration of 1 h. Duration link must be set before battery and mains connection. Product description Self contained emergency lighting LED driver for manual testing For LED modules with a forward voltage of 10 – 54 V SELV for output voltage < 60 V DC Low profile casing (21 x 30 mm cross-section) For luminaire installation Compatible with Tridonic's LLE FLEX modules (ADV, EXC) Nominal lifetime up to 100,000 h 5 years guarantee Properties Non maintained operation 1 or 3 h rated duration Operating time selectable with plug (duration link) Compatible with all dimmable and non-dimmable constant current LED driver (see data sheet, LED driver compatibility) 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver Automatic shutdown of output if LED load is out of range Constant power output Maximum light output for all LED modules Electronic charge system Deep discharge protection Short-circuit-proof battery connection Polarity reversal protection for battery provided by 3-pole connector Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries) Batteries High-temperature cells NiMH or LiFePO4 batteries LA or 18650 cells 4-year design life for NiMH batteries 1 years guarantee for NiMH batteries 4 – 8 years design life for LiFePO4 batteries 3 years guarantee for LiFePO4 batteries For battery compatibility refer to data sheet, battery selection

Read more less

EM converterLED PRO MH/LiFePO4 250 V PRO version Note: LED driver supplied with duration link in 3 hours position. Duration link must be set before battery and mains connection. Product description Emergency lighting LED driver with DALI interface and automatic test function For self-contained emergency lighting For LED modules with a forward voltage of 50 – 250 V Low profile casing (21 x 30 mm cross-section) For luminaire installation Nominal lifetime up to 100,000 h 5 years guarantee Properties Non maintained operation DALI interface for controlled testing and monitoring 1, 2 or 3 h rated duration Operating time selectable with plug (duration link) Compatible with most constant current LED drivers (see data sheet, LED driver compatibility) 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver Automatic shutdown of output if LED load is out of range Constant power output Two-colour status display LED Electronic charge system Deep discharge protection Short-circuit-proof battery connection Polarity reversal protection for battery provided by 3-pole connector Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries) Self-test: Status of the battery Status of the LED Function test Duration test Batteries High-temperature cells NiMH or LiFePO4 batteries LA or 18650 cells 4-year design life for NiMH batteries 1 years guarantee for NiMH batteries 4 – 8 years design life for LiFePO4 batteries 4 years guarantee for LiFePO4 batteries For battery compatibility refer to datasheet, battery selection

Read more less

EM converterLED PRO NiCd/NiMH 250 V PRO version Note: Supply of control gear with duration link in 3 hours position. Remove duration link for duration of 1 h. Duration link must be set before battery and mains connection. Product description Self-contained emergency lighting LED driver with DALI interface Non maintained operation For LED modules with a forward voltage of 48 – 250 V For luminaire installation Nominal lifetime up to 100,000 h 5 years guarantee Functions 1, 2 or 3 h rated duration selectable with duration link Constant power output Self-test: Weekly function test Yearly duration test Driver compatibility 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver For further information see datasheet, LED driver compatibility Battery management Intelligent charge system Deep discharge protection Polarity reversal protection for battery Batteries NiCd or NiMH batteries 4 year design life 1 year guarantee For battery compatibility refer to datasheet, battery selection

Read more less

Combined emergency LED driver for manual testing For self-contained emergency lighting Can be either used build-in or independent with clip-on strain-relief (see accessory) Max. output power 32 W Nominal lifetime up to 100,000 h 5 years guarantee Functions Adjustable output current between 350 and 700 mA via I-SELECT 2 plugs Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) Suitable for emergency escape lighting systems acc. to EN 50172 1 or 3 h rated duration depending on connected battery Constant power output in emergency mode Battery management Intelligent charge system Deep discharge protection Temperature protection Polarity reversal protection for battery provided by 3-pole connector Batteries LiFePO4 batteries with Tridonic LiFeGuard Temperature-protected Overcharge-/Overdischarge protection Ensures safety in use Up to 8 year design life 3 years guarantee For battery compatibility refer to datasheet, battery selection

Read more less

EM powerLED BASIC FX SC MH/NiCd 32 W Combined emergency lighting LED driver Product description Combined emergency LED driver for manual testing For self-contained emergency lighting Can be either used built-in or independent with clip-on strain-relief (see accessory) Max. output power 32 W Nominal lifetime up to 100,000 h 5 years guarantee Functions Adjustable output current between 350 and 700 mA via I-SELECT 2 plugs Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) Suitable for emergency escape lighting systems acc. to EN 50172 1 or 3 h rated duration depending on connected battery Constant power output in emergency mode Battery management Intelligent charge system Deep discharge protection Polarity reversal protection for battery Short-circuit-proof battery connection Batteries NiCd or NiMH batteries 4 year design life 1 year guarantee For battery compatibility refer to datasheet, battery selection

Read more less

EM powerLED PRO DIM SR 45 W Combined emergency lighting LED driver Note: LED driver supplied with duration dip switch (2-way) in 3 hours position. Duration dip switch and I-SELECT 2 PLUG must be set before battery and mains connection. Product description Independent dimmable LED driver Emergency lighting LED driver with DALI interface and automatic test function For self-contained emergency lighting For LED modules with a forward voltage of 20 – 50 V SELV for output voltage < 60 V DC Compact plastic casing with strain relief Properties Output power 6 – 45 W Constant current LED operation 300 – 1,400 mA output current in mains operation, adjustable with I-SELECT 2 PLUG in steps of 25 mA or via DALI in steps of 1 mA Integrated emergency lighting unit 1, 2 or 3 h rated duration Operating time selectable with dip switch (2-way) Automatic shutdown of output if the forward voltage of the LED is out of range Two-colour status display LED Electronic multi-level charge system Pulse current charging for NiMH batteries Polarity reversal protection for battery Power-up fading at AC Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Deep discharge protection Short-circuit-proof battery connection 5 years guarantee Interfaces one4all (DALI DT 1 & 6, DSI, switchDIM, corridorFUNCTION) Terminal blocks: 45° push terminals Batteries High-temperature cells NiCd or NiMH batteries D, Cs, LA or LAL cells Battery box for independent use 4 year design life 1 year guarantee For battery compatibility refer to data sheet

Read more less

EM powerLED PRO DIM SR 45 W Combined emergency lighting LED driver Note: LED driver supplied with duration dip switch (2-way) in 3 hours position. Duration dip switch and I-SELECT 2 PLUG must be set before battery and mains connection. Product description Independent dimmable LED driver Emergency lighting LED driver with DALI interface and automatic test function For self-contained emergency lighting For LED modules with a forward voltage of 20 – 50 V SELV for output voltage < 60 V DC Compact plastic casing with strain relief Properties Output power 6 – 45 W Constant current LED operation 300 – 1,400 mA output current in mains operation, adjustable with I-SELECT 2 PLUG in steps of 25 mA or via DALI in steps of 1 mA Integrated emergency lighting unit 1, 2 or 3 h rated duration Operating time selectable with dip switch (2-way) Automatic shutdown of output if the forward voltage of the LED is out of range Two-colour status display LED Electronic multi-level charge system Pulse current charging for NiMH batteries Polarity reversal protection for battery Power-up fading at AC Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Deep discharge protection Short-circuit-proof battery connection 5 years guarantee Interfaces one4all (DALI DT 1 & 6, DSI, switchDIM, corridorFUNCTION) Terminal blocks: 45° push terminals Batteries High-temperature cells NiCd or NiMH batteries D, Cs, LA or LAL cells Battery box for independent use 4 year design life 1 year guarantee For battery compatibility refer to data sheet

Read more less

EM powerLED PRO EZ-3, 1 – 2 W Combined emergency lighting LED Driver 1 – 4 W Screw-fix Clip-fix Screw-fix Clip-fix Product description Emergency lighting LED Driver with DALI interface and automatic test function For self-contained emergency lighting SELV for output voltage < 60 V DC Low profile casing (21 x 30 mm cross-section) 5 years guarantee Properties Mains and emergency operation DALI interface for controlled testing and monitoring DALI switchable in mains operation (on/off); the switched phase SL must be switched on Constant current mode With either screw or clip fastening (clip-fix) 1, 2 or 3 h rated duration Selectable operating time (jumper) Output power limitation Two-colour status display LED Automatic restart after LED replacement Electronic multi-level charge system SELV classified (outputs powerLED, battery, status LED, test switch) Polarity reversal protection for battery Deep discharge protection Very low energy consumption from the battery after activation of the deep discharge protection Short-circuit-proof battery connection Addressing function, patented (“EZ easy addressing”) Emergency lighting LEDs available Tests: Status of the battery Status of the LED Charge condition Function test Duration test Batteries High-temperature cells 2 Ah NiMH batteries Cs cells 4 year design life 1 year guarantee For battery compatibility refer to data sheet

Read more less

EM powerLED SELFTEST 1 – 2 W Combined emergency lighting LED driver 1 – 4 W Screw-fix Clip-fix Screw-fix Clip-fix Product description Emergency lighting LED driver with selftest function For self-contained emergency lighting SELV for output voltage < 60 V DC Low profile casing (21 x 30 mm) 5 years guarantee Properties Mains and emergency operation Self-test as per IEC 62034 Constant current mode With either screw or clip fastening (clip-fix) 1, 2 or 3 h rated duration Selectable operating time (jumper) Output power limitation Two-colour status display LED “Rest mode” function Simple set-up Automatic restart after LED replacement Electronic multi-level charge system SELV classified (outputs powerLED, battery, status LED, test switch) Polarity reversal protection for battery Deep discharge protection Very low energy consumption from the battery after activation of the deep discharge protection Short-circuit-proof battery connection Emergency lighting LEDs available Self-test: Status of the battery Status of the LED Charge condition Function test Duration test Batteries High-temperature cells 2 Ah NiMH batteries Cs cells 4 year design life 1 year guarantee For battery compatibility refer to data sheet Picture for illustrative purposes only

Read more less

EM converterLED BASIC NiCd/NiMH 50 V BASIC version Note: Supply of control gear with duration link in 3 hours position. Remove duration link for duration of 1 h. Duration link must be set before battery and mains connection. Product description Emergency lighting LED Driver for manual testing For self-contained emergency lighting For LED modules with a forward voltage of 10 – 54 V SELV for output voltage < 60 V DC Low profile casing (21 x 30 mm cross-section) For luminaire installation Nominal lifetime up to 100,000 h 5 years guarantee Properties Non maintained operation 1 or 3 h rated duration Operating time selectable with plug (duration link) Compatible with all dimmable and non-dimmable constant current LED Driver (see data sheet, LED Driver compatibility) 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED Driver Automatic shutdown of output if LED load is out of range Constant power output Maximum light output for all LED modules Electronic charge system Deep discharge protection Short-circuit-proof battery connection Polarity reversal protection for battery Batteries High-temperature cells NiCd or NiMH batteries D, Cs or LA cells 4 year design life 1 year guarantee For battery compatibility refer to data sheet

Read more less
