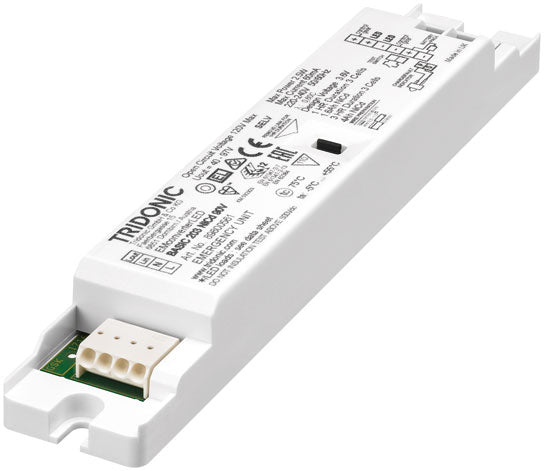

Product description Emergency lighting LED driver for manual testing For self-contained emergency lighting For LED modules with a forward voltage of 40 – 97 V SELV for output voltage < 120 V DC Low profile casing (21 x 30 mm cross-section) For luminaire installation EM = Emergency Nominal lifetime up to 100,000 h 5 years guarantee

Read more less

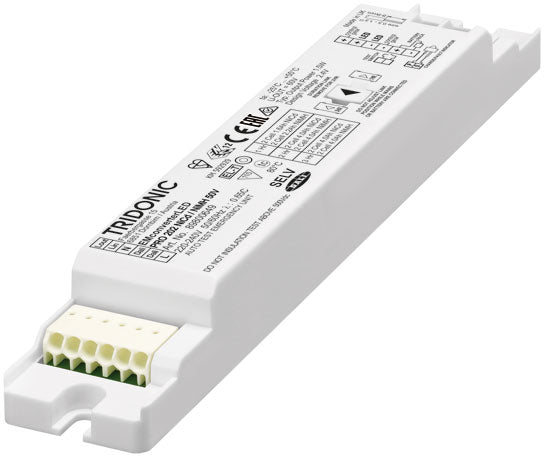

Product description Self-contained emergency lighting LED driver with DALI interface Non maintained operation For LED modules with a forward voltage of 10 – 54 V SELV for output voltage < 60 V DC For luminaire installation Compatible with Tridonic's LLE FLEX modules (ADV, EXC) EM = Emergency Nominal lifetime up to 100,000 h 5 years guarantee (conditions at www.tridonic.com) Show more Article information Data sheet

Read more less

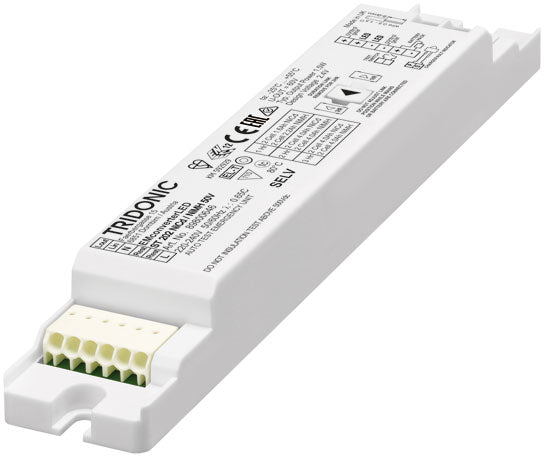

EM converterLED ST NiCd/NiMH 50 V EM conversion Data sheet Product description Replaces  the 89800182 Self-contained emergency lighting LED driver with self-test function Non maintained operation For LED modules with a forward voltage of 10 – 54 V SELV for output voltage < 60 V DC For luminaire installation Compatible with Tridonic's LLE FLEX modules (ADV, EXC) EM = Emergency Nominal lifetime up to 100,000 h

Read more less

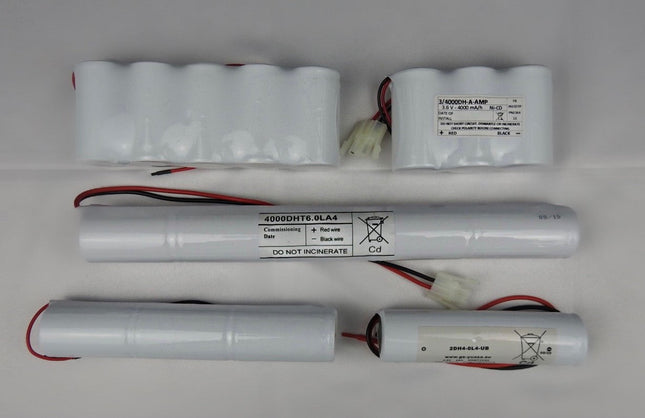

D Size Emergency batteries  All complete with Flying Leads  Other Formations available   Image is for illustration purposes  B002 B003 B003/SBS B004 B004/SBS B005 B005/SBS B006

Read more less

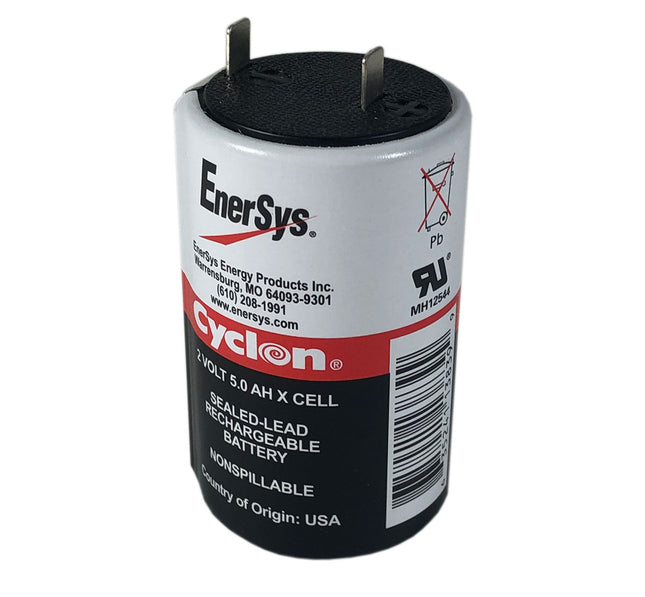

Bar Code:  752570032102Part Number:  0800-0004Voltage  2VCapacity  5AhLength  73mmDiameter  44mm

Read more less

Enersys P1.2-6-E  1.2 ah 6v Sealed Acid Battery

Read more less

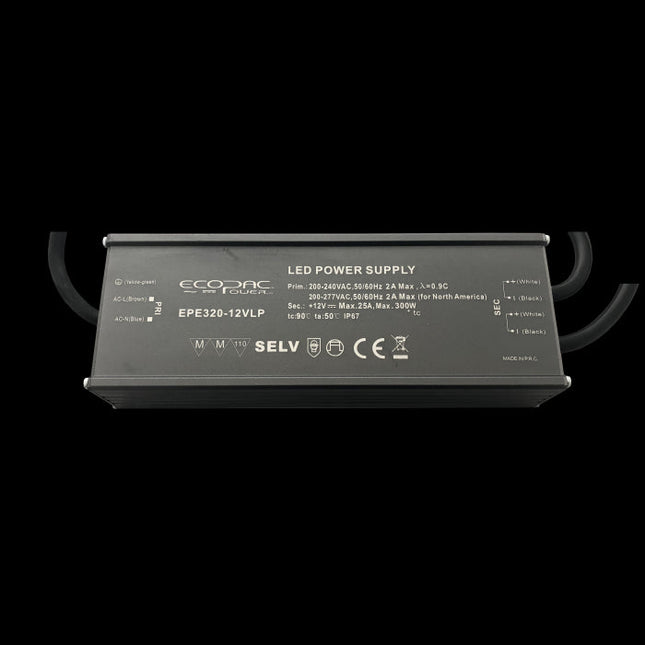

Features IP67 design for indoor or outdoor installation Protections: Short circuit/over load/over voltage/over temperature Built-in active PFC function Cooling by free air convection High reliability 180 – 264VAC Suitable for LED lighting and moving sign applications 3 Year warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 300 Output Voltage 12V Dimmable (Type) No Dimensions 225.2 x 73.5 x 38mm EMC Standards EN55015, FCC Part 15B, EN61000-4-2,3,4,5,6,8,11; EN55024; EN61547 Input Voltage 180-264VAC Safety Standards EN61347-1,EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet EPE320-VLP Series.pdf

Read more less

EPV-60-24TF

Read more less

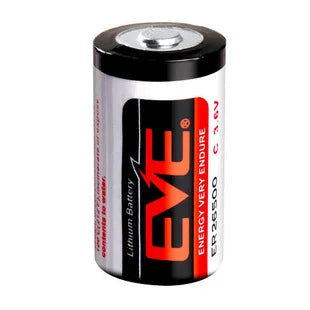

ER26500 LITHIUM BATTERY C 3.6V 9AH

Read more less

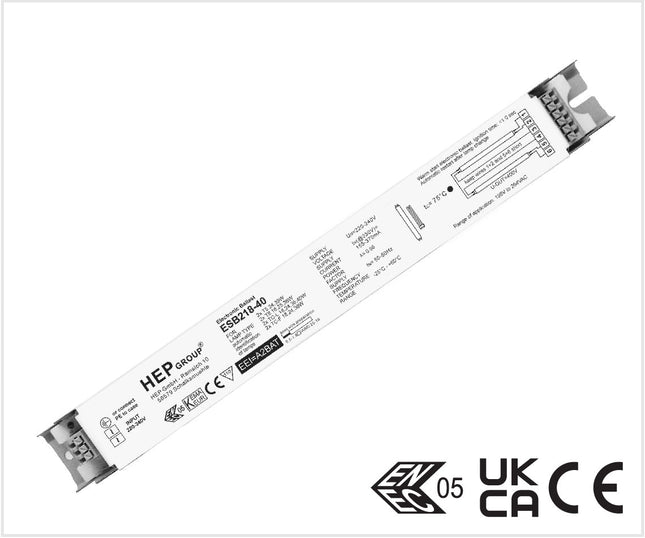

PLEASE NOTE DELIVERY IS USUALLY 3-4 weeks on this item   Warmstart with automatic identification of lamptypeAutomatic restart after lamp replacementConstant light flux independent of mains fluctuationsOperating ambient temperature -25°C - +60°C Protection:1. End of Life Protection2. Short & open circuit proof3. Auto shutdown in case of lamp failure Model Vin Lamp Type Power Factor Mounting Type Dimension Certification ESB218-40 220–240 V 2x T8 18,25,36 W 0.98 built-in 280 x 30 x 21 mm ENEC 2x TC-F 18,24,36 W 2x TC-L 18,24,36,40 W Datasheet ESB218-40 CB Certificate NL-56088 ENEC Certificate 88-106801 EU Declaration of conformity CE-ESB

Read more less

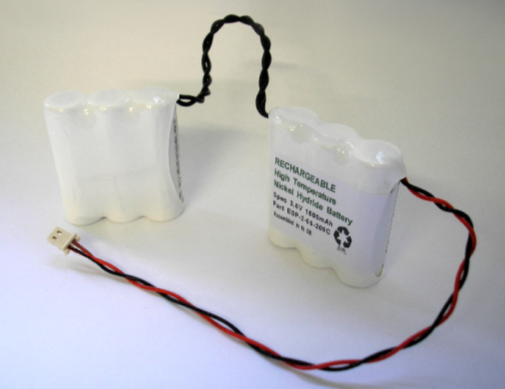

SL/2/06/209C 7.2V 1.5AH NIMH PACK C/W CON - 7.2V 1500mAh High Temperature

Read more less

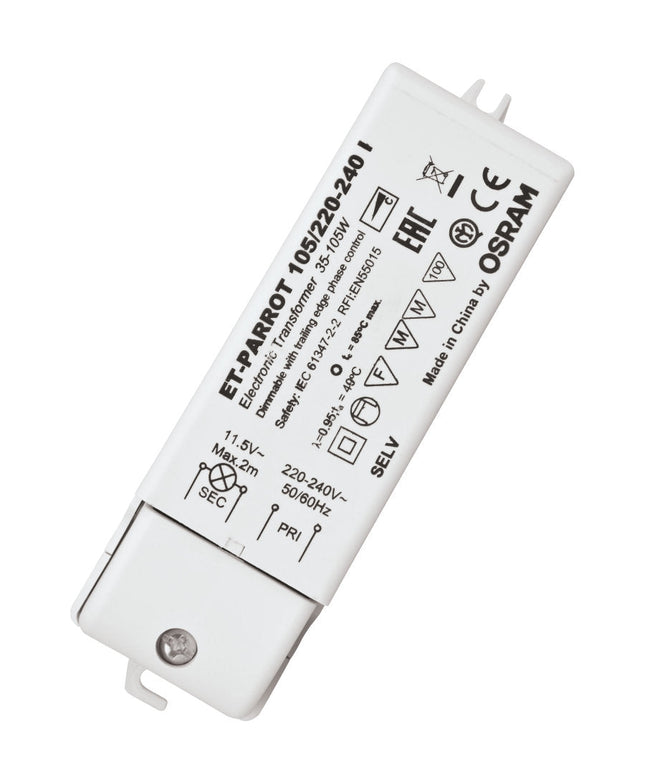

Product family benefits Very low power loss thanks to high efficacy Protective operation throughout the entire partial-load range for long lamp life Areas of application Effect and accent lighting Living rooms Object lighting Conference rooms Restaurants Recessed and surface-mounted furniture luminaires Shop lighting Event rooms Technical Data Electrical data Lamp wattage 35…105 W Maximum output power 105 W Line current 0.45 A Nominal voltage 220…240 V Power factor λ 0.95 Operating frequency 40 kHz Nominal output voltage 11.9 / 12.0 V Input voltage AC 198…264 V Mains frequency 50…60 Hz System wattage 111.00 W Efficiency in full-load 94 % Input voltage range 220…240 V Max. ECG no. on circuit breaker 10 A (B) 23 Max. ECG no. on circuit breaker 16 A (B) 38 Galvanic isolation primary/secondary 4.00 kV Inrush current 0.5 A Dimensions & weight Length 128.0 mm Width 38.0 mm Height 31.0 mm Mounting hole spacing, length 119.0 mm Cable cross-section, input side 0.75 mm² Cable cross-section, output side 0.75 mm² Wire preparation length, input side 12 / 6.0 mm Wire preparation length, output side 12 / 6.0 mm Product weight 130.00 g Temperatures & operating conditions Ambient temperature range 0…+40 °C Maximum temperature at tc test point 85 °C Additional product data Design / version Compact Capabilities Dimming method Trailing- or leading-edge phase control for inductive load dimmers Overload protection Automatic reversible Overheating protection Automatic reversible Short-circuit protection Automatic reversible Max. cable length to lamp/LED module 2.0 m Cable/wire types, input side H03VV-F 2x0.75 mm² Cable/wire types, output side H03VV-F 2x0.75 mm² Dimmable Yes Dimming range 0…100 % No-load proof Yes Suitable for fixtures with prot. class II Intended for no-load operation No Certificates & standards Approval marks – approval VDE / EAC Standards Acc. to EN 61347/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547 Type of protection IP20 Logistical data Commodity code 850440909000 Environmental information Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh) Date of Declaration 14-04-2022 Primary Article Identifier 4008321111579 Candidate List Substance 1 Lead CAS No. of substance 1 7439-92-1 Safe Use Instruction The identification of the Candidate List substance is sufficient to allow safe use of the article. Declaration No. in SCIP database ad5fb676-828d-4743-bdca-2693e619714e Packaging information EAN Unit Piece Dimension l x w x h Weight Volume 4008321111579 UNV  1 128mm x 38mm x 31mm 130.00g 0.15dm³ 4008321111586 VS  50 290mm x 206mm x 220mm 697
