The most important features at a glance: - Energy efficiency class A2 BAT - Service life of up to 100,000 h - Intelligent Voltage Guard (overvoltage display and undervoltage shutdown) - Precise lamp operation by adjusting the lamp parameters - Advanced SMART heating for at least 50,000 starts without changing the lamp - Constant luminous flux regardless of mains voltage fluctuations - For lights of protection class I + II - Automatic restart after lamp replacement - Safety shutdown of defective lamps and at the end of lamp life - Insulation displacement terminals (IDC) for fast automatic and manual wiring - For emergency lighting systems in accordance with EN 50172

Read more less

Digital Dimming Ballast to run 4 X 14/24w T5 tubes - ONE4ALL - PCA 4x14/24 T5 Excel - 22176210

Read more less

Helvar EL3/4x14s Electronic HF ballast to run 3 or 4 x 14w T5 Tubes

Read more less

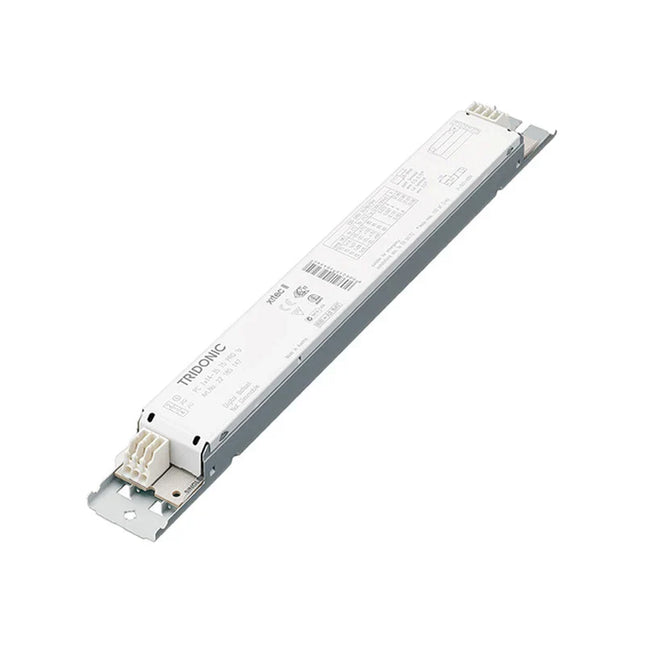

Tridonic PC280T5PRO Electronic HF low profile ballast to run 2x80w T5 tubes - PC 2/80 T5 PRO lp

Read more less

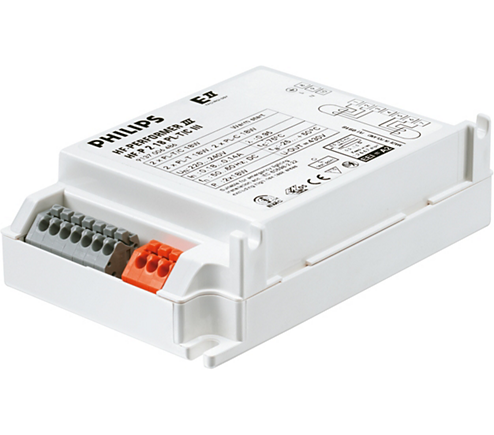

HF-Performer II for PL-T/C/R/L/TL5C lamps HF-Performer II for PL-T/C/R/L/TL5C lamps HF-P 1 22-42 PL-T/C/L/TL5C EII 220-240V HF-Performer EII PL-T/C/R/T5c is a sustainable, slim and high-frequency electronic ballast for a wide range of CFL- ni applications. It is ideal for applications where high energy efficiency is required. The HF-Performer EII range has a robust design, meets all relevant international safety and performance standards and is energy-efficient (CELMA EEI A2). Lamp type PL-T/C/L/TL5C Number of lamps 1 piece/unit Automatic restart Yes Operating and Electrical Input Voltage 220 to 240 V Input frequency 50 to 60 Hz Operating frequency (max.) - kHz

Read more less

Vossloh LN36.149 Ballast for 1x36w Fluorescent. 28x41x150mm.

Read more less

Obsolete please order https://www.easy-controlgear.com/products/el2x58ngn-helvar-replaces-the-el2x58hf?_pos=17&_sid=d3f525954&_ss=r

Read more less

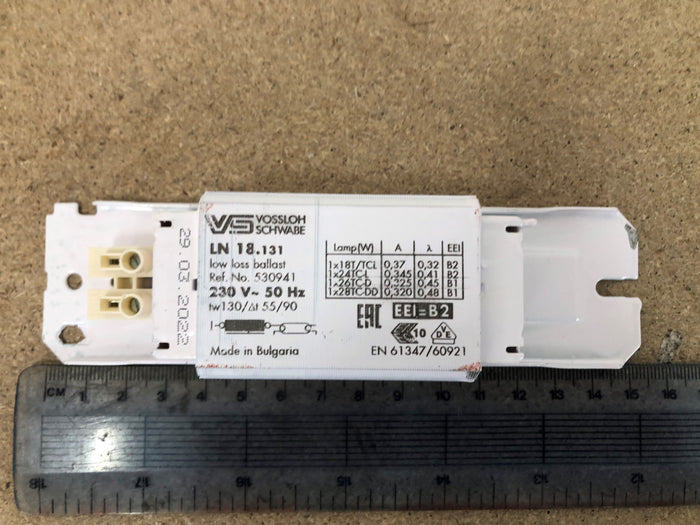

1x18w T8 Ballast - Vossloh Schwabe - L18.131 - 530941

Read more less

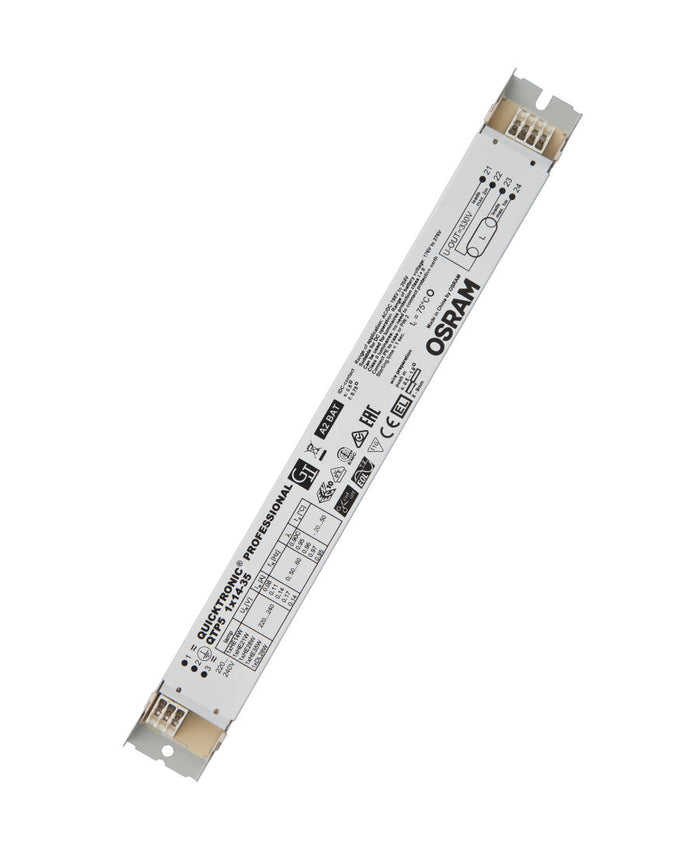

Osram QTP511435 - 1 x 14-35w T5 HF Ballast - 4008321329035 Product family benefits _ Long lamp life _ No adverse effect from frequent on/off switching _ Perfect lamp start for applications with motion sensors _ Automatic restart after lamp replacement _ VDE/VDE EMC certified system _ Very high energy efficiency due to cut-off technology Areas of application _ Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100 _ Industry _ Open-plan offices, corridors and storage rooms _ Public buildings _ Sports halls and factories _ Strip lighting _ Suitable for emergency lighting (DC operation) _ Modernization of existing systems _ Suitable for luminaires of protection classes I and II Product datasheet QTP5 1X14…35 QUICKTRONIC PROFESSIONAL 5 | ECG for FL 16 mm Product family features _ Supply voltage: 220…240 V _ Line voltage: 198…264 V _ Line frequency: 0 Hz | 50 Hz | 60 Hz _ Lamp start with optimum filament preheating _ Lifetime: up to 100,000 h (temperature at T c = 65 °C, max. 10 % failure rate) _ Energy Efficiency Index EEI: A2 BAT _ Automatic shutdown of defective lamps and at end of life (EoL T.2) _ Safety: to EN 61347-2-3 _ Lamp operation: to EN 60929 __ February 16, 2021, 15:49:49 © 2021, OSRAM GmbH. All rights reserved. QTP5 1X14…35 Page 1 of 6 Technical data Electrical data Input voltage AC 198…264 V Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage DC 176…276 V Operating frequency 40…50 kHz Max. ECG no. on circuit breaker 10 A (B) 17 1) Max. ECG no. on circuit breaker 16 A (B) 28 1) Inrush current 24 A 1) Type B Light technical data Starting time 1.0 s 1) 1) If there is a temporary interruption in the power supply (< 0.5 s), the lamp will start within 0.3 s Dimensions & weight Length 280.0 mm Width 30.0 mm Height 21.0 mm Mounting hole spacing, length 270.0 mm Product weight 171.00 g Temperatures & operating conditions Ambient temperature range -20…+50 °C Permitted rel. humidity during operation 5…85 % 1) 1) Maximum 56 days/year at 85 % Product datasheet __ February 16, 2021, 15:49:49 © 2021, OSRAM GmbH. All rights reserved. QTP5 1X14…35 Page 2 of 6 Lifespan ECG lifetime 100000 h 1) 1) At T case = 65°C at T c point / 10% failure rate Expected Lifetime Product name Lamp group QTP5 1X14…35 HE 35 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 50 60 65 Lifetime [h] 100000 100000 90000 Additional product data Suitable for lamp power (1 lamp) 14…35 W Capabilities Suitable for fixtures with prot. class I / II End of lamp life safety shutdown EOL T.2 Max. cable length to lamp/LED module 2.0 m / 1.0 m Dimmable No Certificates & standards Approval marks – approval VDE / VDE-EMC / CE / ENEC 10 EEI – Energy Label A2 BAT Standards Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547 Protection class III Type of protection IP20 Logistical data Commodity code 850410809000 Product datasheet __ February 16, 2021, 15:49:49 © 2021, OSRAM GmbH. All rights reserved. QTP5 1X14…35 Page 3 of 6 Wiring Diagram 319638_QTP5 1x.. 592499_EAC QTP5 Download Data File Product Datasheet 321531_ATI QTP5 1x14-35 (G+GB) Product Datasheet 334048_QUICKTRONIC PROFESSIONAL – QTP5 Product Datasheet 502688_ECG lifetime - QUICKTRONIC non DIM Certificates 335002_EMC-Marks approval Certificates 335097_INOTEC Certificates 335098_CEAG Certificates 335101_ENEC-VDE-Marks approval Certificates 335128_VDE Quality Tested Simplified luminaire approbation Certificates 335169_Manufacturer´s declaration – LampECG combinations: Frequent switching Product datasheet __ February 16, 2021, 15:49:49 © 2021, OSRAM GmbH. All rights reserved. QTP5 1X14…35 Page 4 of 6 Certificates 592319_EAC certificate for Quicktronics QT Certificates 504210_VDE-EMC-Certificate QT5 Declarations of conformity Quicktronic CE 3364256 070121 CAD data 3-dim 322169_QTP5 1x14-35, QTP5 1x24-39, QTP5 1x49, QTP5 1X54 CAD data 3-dim 322170_QTP5 1x14-35, QTP5 1x24-39, QTP5 1x49, QTP5 1X54 CAD data PDF 322176_QTP5 1x14-35, QTP5 1x24-39, QTP5 1x49, QTP5 1X54 Logistical Data Product code Product description Packaging unit (Pieces/Unit) Dimensions (length x width x height) Volume Gross weight 4008321329035 QTP5 1X14…35 Shipping carton box 20 303 mm x 101 mm x 159 mm 4.87 dm³ 3586.00 g The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or more single products. When placing an order, for the quantity please enter single or multiples of a shipping unit. Disclaimer Subject to change without notice. Errors and omission excepted. Always make sure to use the most recent release. Product datasheet __ February 16, 2021, 15:49:49 © 2021, OSRAM GmbH. All rights reserved. QTP5 1X14…35 Page 5 of 6 QTP5 1X14…35 QUICKTRONIC PROFESSIONAL 5 | ECG for FL 16 mm Product name Lamp group Nominal current Nominal wattage + Power loss Luminous flux at 35 °C Number of lighting outlets QTP5 1X14…35 DULUX L 26 W HE 0.13 A 29.00 W 2470 lm 1 DULUX L 28 W HE 0.13 A 28.50 W 2550 lm 1 HE 13 W ES 0.075 A 15.00 W 1150 lm 1 HE 14 W 0.08 A 16.00 W 1200 lm 1 HE 19 W ES 0.10 A 22.00 W 1800 lm 1 HE 21 W 0.11 A 24.00 W 1900 lm 1 HE 25 W ES 0.12 A 27.00 W 2450 lm 1 HE 28 W 0.14 A 31.00 W 2600 lm 1 HE 32 W ES 0.15 A 34.00 W 3100 lm 1 HE 35 W 0.17 A 38.00 W 3300 lm 1 HE 35 W XT 0.17 A 38.00 W 3300 lm 1 Product datasheet __ February 16, 2021, 15:49:49 © 2021, OSRAM GmbH. All rights reserved. QTP5 1X14…35 Page 6 of 6

Read more less

Technical Specifications for Helvar T8 58W Twin Ballast Actual Wattage 58 W Ballast Type High Frequency (Standard) Dimming? Non-Dimmable Height 28 mm Helvar Part Code EL2x58HF Lamp Type T8 Length 280 mm Linear 2x58 Watt Manufacturer Helvar No. Of Lamps Twin (2x) Type Control Gear Width 30 mm

Read more less

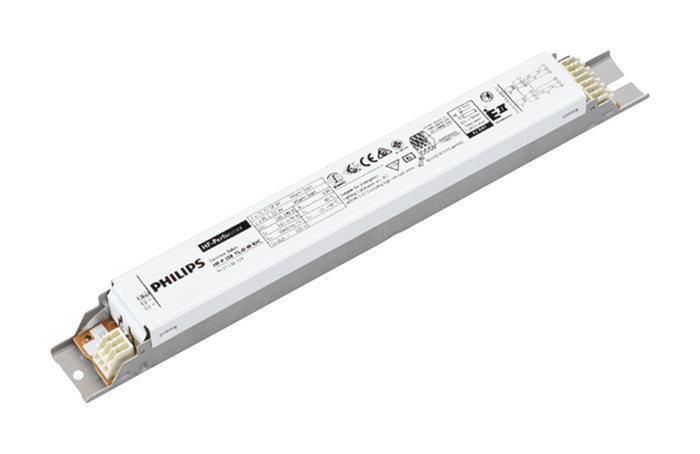

Philips Electronic HF performer II TL-D ballast to run 2x 58w T8 Tubes @ 2 X 70W T8 tubes 2 x 55W PL-L Lamps   - HFP258TLDEII View Datasheet

Read more less

The Philips HF-P 3/414 TL5 is a fixed output high frequenct ballast for use with 3/4 x 14w flourescent lamp. This ballast has a flicker free warm start, electrode heating cut off, Low energy consumption and automatic stop circuit (stop start). The Philips HF-P is often used in Department stores, Airports, Railway stations, Hotels and Hospitals. It is also suitable for emergency installations.
