An Emergency Lighting Products (ELP) IM428 emergency combination ballast to run 1 x 16w, 21w or 28w 2D compact fluorescent lamp. This integrated combination ballast should be used with a 4 cell emergency battery. This ballast has a high quality electronic ballast and emergency inverter within the same enclosure.
obsolete, if ordered the Philips variant will be sent out
Osram QT 1X58/220-240 DIM (1-10V) 1 X 58W T8 Dimming ballast for T8 fluorescent tubes. Dimming range: 1-100 % luminous flux. 360 x 30 x 21mm dimensions.
OBSOLETE, PLEASE CONSIDER THE BELOW ALTERNATIVE IF USING 240V
ALTERNATIVE

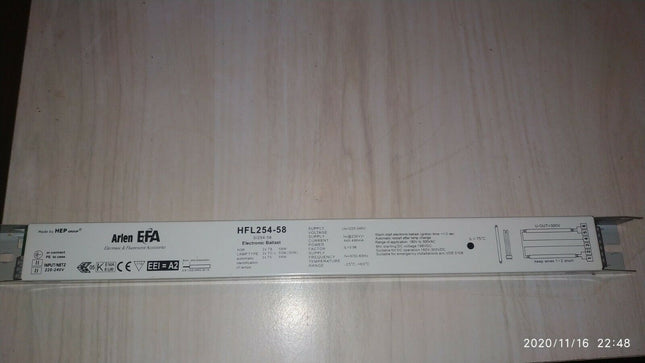

ARLEN FL 2x54-58M 110-240V Ballast
SI254-58
from Arlen (Model: HFL2x54-58M)
ARLEN FL2x54-58M Ballast
Technical Specifications
for ARLEN FL 2x54-58M 110-240V Ballast
Height
26 mm
Length
360 mm
Manufacturer
Arlen
Type
Control Gear
Voltage
110-240 Volt
Width
30 mm
OBSOLETE , IF using DALI dimming the below will suffice
DALI Alternative
If using DSI no alternative available
Tridonic Electronic compact dimming ballast to run 1 x 26-57w TC Compact
The Tridonic PCA 1x26-57 TC ECO xitec II is a high frequency dimmable ballast for use with DALI/DSI/switchDIM interfaces.
Compatible with the following lamps:
1 x 40w T5 Circular Lamp
1 x 26w Double Turn Compact Fluorescent Lamp
1 x 26w Triple Turn Compact Fluorescent Lamp
1 x 40w Long Single Turn Compact Fluorescent Lamp
1 x 40w T5 Circular Fluorescent Lamp
1 x 32w Triple Compact Fluorescent Lamp
1 x 42w Triple Turn Compact Fluorescent Lamp
1 x 57w Triple Turn Compact Fluorescent Lamp
Tridonic part number: 22185120

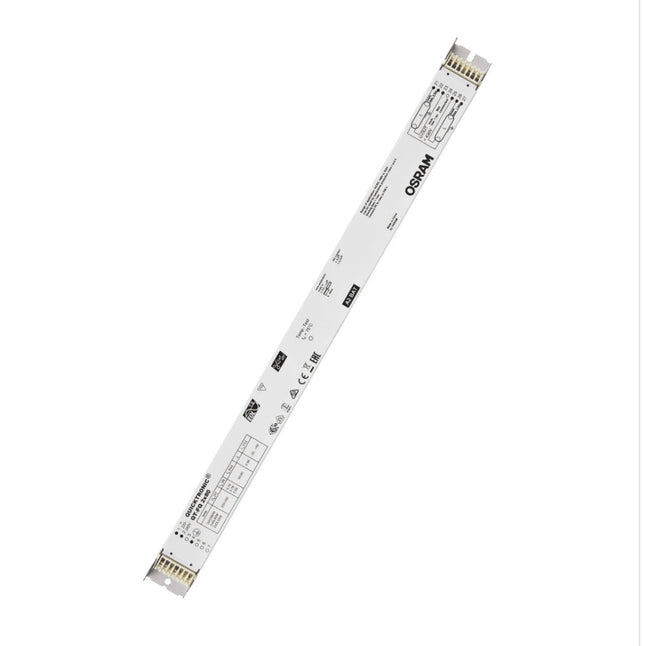

OSRAM Quicktronic QT-FQ 2X80 4050300825564
Product family features
Supply voltage: 220…240 V
Line voltage: 198…264 V
Line frequency: 50 Hz | 60 Hz
Lamp start with optimum filament preheating
Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max.10 % failure rate)
Energy Efficiency Index EEI: A2
Safety: to EN 61347-2-3
Automatic shutdown of defective lamps and at end of life(EoL T.2)
Product family benefits
– Long lamp life– No adverse effect from frequent on/off switching– Automatic restart after lamp replacement– Perfect lamp start for applications with motion sensors
– VDE/VDE EMC certified system– Very high energy efficiency due to cut-off technology
Areas of application
– Industry– Open-plan offices, corridors and storage rooms
– Public buildings– Sports halls and factories– Strip lighting– Modernization of existing systems
Product Data Sheet
