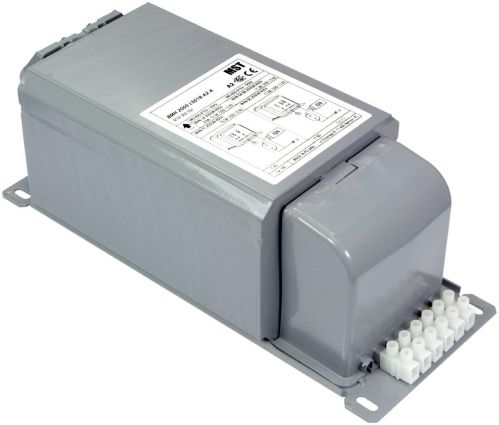

MST BMH 2000 L5018-A2-A 380/400/415V 50HZ BALLAST Part No: MSTBMH2000L5018 MST BMH 2000 L5018-A2-A 380/400/415V 50Hz Ballast 9137 002 75346 Product description • Basic ballasts for use with high power lamps • A2 energy efficiency index • For use in combination with series or semi-parallel ignitors • Winding temperature Tw = 140°C • Impregnated electromagnetic ballast • Screw terminal blocks • Aluminum windings Compatible with Osram HQI-TS & HQI-T Compatible with Radium HRI-TS & HQI-T ignitors & Capacitors also available. Product Data Sheet MSTBMH2000-2.pdf

Read more less

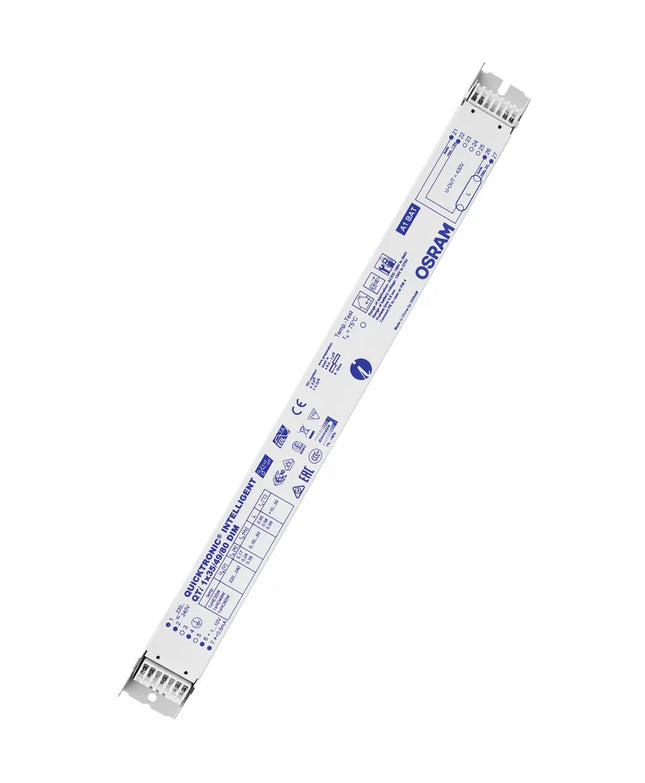

Osram QTi 1x35/49/80w Ballast Dimmable - Osram - QTI135DIM - 4050300870540 QUICKTRONIC INTELLIGENT DIM T5 Dimmable 1-10V. ECG for compact fluorescent lamps and T5 fluorescent lamps. Nominal voltage 220 - 240 VMains frequency 50 Hz/60 HzDC voltage 154…276 VOperating frequency 44…120 kHzStarting time 0.6 sLength 360 mmWidth 30 mmHeight 21 mmMounting hole spacing, length 350 mmWire preparation length, input side 8.0…9 mmWire preparation length, output side 8.0…9 mmAmbient temperature range –10…+50 °CDimming interface 1…10 VDimming range 1…100%Dimmable YesSuitable for fixtures with prot. class IEnd of lamp life safety shutdown EOL T.2Approval marks - approval VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCCEEI - Energy Label A1 BATStandards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to EN 61000 - 3-2/acc. to EN 61547

Read more less

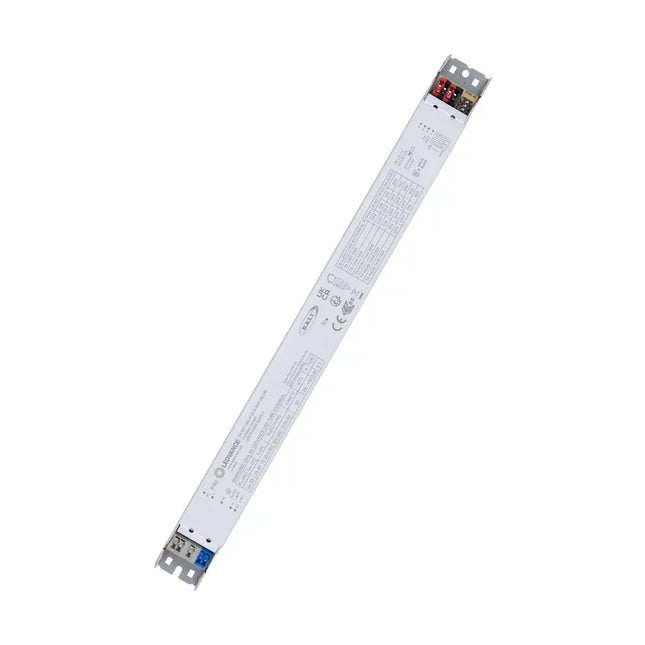

Product benefits New Version will be sent  4099854295171  Multiwatt LED driver for LED TUBE EXTERNAL T5 and T8 DALI 2.0 interface for dimming and sensor operations Suitable for emergency lighting Push DIM application for easy control 5 years guarantee View all details Product data sheet

Read more less

913700626566 HF-R 2 26-42 PL-T/C EII 220-240V 50/60Hz Compact, high-frequency electronic dimming ballast, using the analog protocol (1-10 V) for PL-T, PL-C and PL-R lamps;The ballast is primarily designed for Indoor application. For outdoor application, the luminaire should be minimum ClassⅠand need to be sufficiently protected against water & dust. The installation should also be guard against any lightening surge or any other necessary electrical protection as deemed in such typical installation & application. Product data General information Application Code EII Type Version mk3 Lamp Type PL-T/C Number of Lamps 2 piece/unit Number of Products on MCB (16A Type B) (Nom) 12 Automatic Restart Yes Operating and electrical Input Voltage 220 to 240 V Input Frequency 50 to 60 Hz Operating Frequency (Max) 100 kHz Operating Frequency (Min) 40 kHz Ignition Method Programmed Start Crestfactor (Max) 1.7 Power Factor 100% Load (Nom) 0.95 Ignition Time (Max) 1.5 s Mains Voltage Performance (AC) -8%-+6% Mains Voltage Safety (AC) -10%-+10% Earth Leakage Current (Max) 0.5 mA Inrush Current Width 0.35 ms Constant Wattage Deviation -2%/+2% Ballast Factor (Nom) 0.99 Power Losses (Nom) 6.5-7.5 W Inrush Current Peak (Max) 45 A Efficiency at full load [%] 93.58 % Wiring Connector Type Input Terminals Insert Cable Capacity Output Wires Mutual (Nom) 30 pF Connector Type Output Terminals Insert Connector Type Control Input Terminals Insert Wire Striplength 7.5-8.5 mm Dual Fixture Master/Slave Not advisable [ Master/Slave operation not advised] Control Input Terminal Cross Section 0.50-1.50 mm² Input Terminal Cross Section 0.50-1.50 mm² Datasheet, 2022, January 14 data subject to change Lighting Lighting Output Terminal Cross Section 0.50-1.50 mm² Cable Capacity Output Wires to Earth (Nom) 75 pF System characteristics Rated Ballast-Lamp Power 26-42 W Temperature T-Ambient (Max) 50 °C T-Ambient (Min) -20 °C T-Storage (Max) 80 °C T-Storage (Min) -25 °C T-Case Lifetime (Nom) 65 °C T-Case Maximum (Max) 75 °C Stable Lamp Operation Temperature Not Specied T-Ignition (Max) 50 °C T-Ignition (Min) 0 °C Controls and dimming Control Interface 1-10V Regulating Level Power 1%-100% Control Input Protection Yes (Basic insulation) Mechanical and housing Housing S 123x79x33 Emergency operation Battery Voltage Lamp Ignition 198-254 V Battery Voltage Lamp Operation 176-254 Approval and application Energy Efficiency Index A1 BAT IP Classification IP 20 [ Ingress Protection 20] EMI 9 kHz ... 30 MHz EN55015 EMI 30 MHz ... 1000 MHz EN55022 level B Safety Standard IEC 61347-2-3 Performance Standard IEC 60929 Quality Standard ISO 9000:2000 Environmental Standard ISO 14001 Harmonic Current Emission Standard IEC 61000-3-2 EMC Immunity Standard IEC 61547 Vibration Standard IEC68-2-6 F c Bumps Standard IEC 68-2-29 Eb Humidity Standard EN 61347-2-3 clause 11 Approval Marks CE marking ENEC certicate VDE-EMV certicate Temperature Marking Yes Emergency Standard IEC 60598-2-22 Hum And Noise Level Inaudible Product data Full product code 872790080972500 Order product name HF-R 2 26-42 PL-T/C EII 220-240V 50/60Hz EAN/UPC - Product 8711500880758 Order code 913700626566 Numerator - Quantity Per Pack 1 Numerator - Packs per outer box 12 Material Nr. (12NC) 913700626566 Net Weight (Piece) 0.23

Read more less

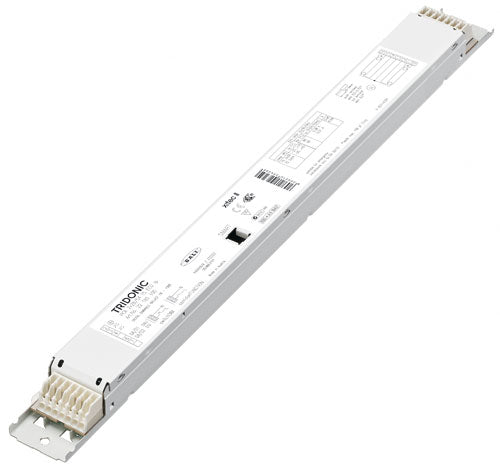

This item is now obsolete, we will send out the below as a viable alternative   Alternative  Product Details High frequency digital ballast in a compact matchbox form factor for single lamp operation. Automatic start after replacement of defective lamps. Safety shutdown of defective lamps and at end of lamp life. · Suitable for single lamp operation · Runs 28w TC-DD, 26w TC-D and TC-T lamps · 5 year guarantee · IP20 · 50,000hr life Technical Specifications Control Gear Type High Frequency Accessory Type Ballast Wattage 26 W Wattage 26 W Manufacturer Tridonic Dimming? Non-Dimmable No. Of Lamps Single (1x) Depth 21 mm Length 145 mm Type Control Gear Voltage 220-240 Volt Width 22 mm Compatible Lamp Type T5C Compatible Lamp Type PLT (4 Pin) Compatible Lamp Type T5 Compatible Lamp Type T8 Compatible Lamp Type 2D (4 Pin) Control Gear Technology Fluorescent Manufacturers Part Number 22176002 Manufacturers Part Number PC Basic 1x26SL Manufacturers Part Number 22176002

Read more less

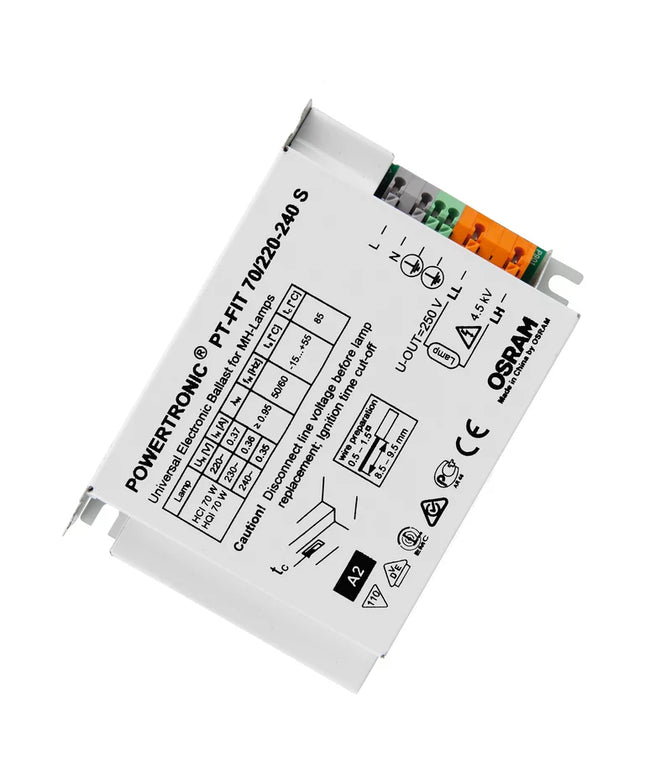

PT-FIT 70/220…240 S Product benefits Optimized cost/benefit factor Compact dimensions and low weight for small luminaire designs Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL) View all details Product data sheet

Read more less

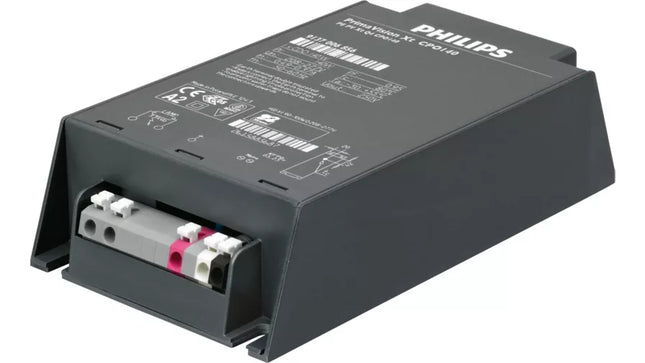

HID-PV XT 45 CPO Q 208-277V - PVXT45CPOQ - 871829166896100 Input Voltage 208-240-277 V Line Frequency 50 to 60 Hz Input Frequency 50 to 60 Hz Earth Leakage Current (Max) 0.7 mA Inrush Current Width 0.24 ms Input Current (Nom) 0.26 A Inrush Current Peak (Max) 28 A Number of Products on MCB (16A Type B) (Nom) 5

Read more less

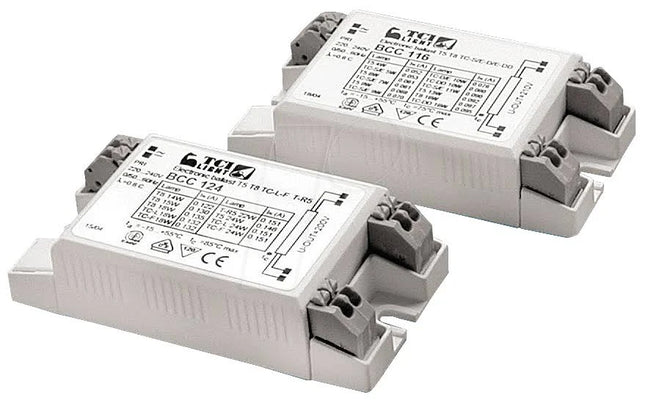

Mini Electronic Ballast T5 - 24W, 2 G11 18-24W , T8 14-15-18W Specification Lamp T5 Cap G5 Type HF Power (W) 24 Length (mm) 80 Width (mm) 41 Height (mm) 18

Read more less

66205100 Specifications General Information Remarks UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG Application code E+ Type version mk2 Lamp type TL5 Number of lamps 1 piece/unit Number of products on MCB (16 A type B) (nom.) 39 Automatic restart Yes Operating and Electrical Input Voltage 195-240 V Input frequency 50 to 60 Hz Operating frequency (max.) 110 kHz Operating frequency (min.) 45 kHz Ignition method Warm Start Crest factor (max.) 1.7 Power factor 100% load (nom.) 0.95 Ignition time (max.) 1 s Mains voltage performance (AC) -8%-+6% Mains voltage safety (AC) -10%-+10% Earth leakage current (max.) 0.5 mA Inrush current width 0.18 ms Standby power consumption (max.) 0.25 W Ballast factor (nom.) 1 Power losses (nom.) 3.8 W Inrush current peak (max.) 20 A Wiring Connector type input terminals WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring] Cable capacity output wires mutual (max.) 200 pF Connector type output terminals WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring] Connector type control input terminals WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring] Wire strip length 8.0-9.0 mm Dual fixture master/slave Yes  [ Master/Slave operation possible] Control input terminal cross section 0.50-1.00 mm² Input terminal cross section 0.50-1.00 mm² Output terminal cross section 0.50-1.00 mm² Auto-insert (ALF/ADS) wire cross section 0.75 mm² Cable capacity output wires to earth (max.) 200 pF System characteristics Rated ballast-lamp power 28-35-49-54 W Rated lamp power on TL-D 58 W System power on TL-D 55.5 W Lamp power on TL-D 52.2 W Power loss on TL-D 3.3 W Rated lamp power on PL-L 55 W System power on PL-L 54.6 W Lamp power on PL-L 51.2 W Power loss on PL-L 3.4 W Rated lamp power on TL5 28/35/49/54 W System power on TL5 32.1/39.1/55.1/57.7 W Lamp power on TL5 29.4/36.4/51.6/54.8 W Power loss on TL5 2.7/3.0/3.5 W Rated lamp power on TL5 ECO 25/32/45/50 W System power on TL5 ECO 29.4/33.1/49.1/54.2/ W Lamp Power on TL5 ECO 26.3/30.2/45.7/50.4 W Rated lamp power on TL-D ECO 51 W System power on TL-D ECO 45.8 W Power loss on TL-D ECO 3.1 W Lamp power on TL-D ECO 42.7 W Power loss on TL5 ECO 3.1/2.9/3.4/3.8/ W Temperature T-ambient (max.) 50 °C T-ambient (min.) -25 °C T storage (max.) 80 °C T storage (min.) -40 °C T case lifetime (max.) 75 °C T-Case maximum (max.) 75 °C Stable lamp operation temperature 15°C T-Ignition (max.) 50 °C T-Ignition (min.) -25 °C Controls and Dimming Control interface TD Regulating level power 1%-100% Control input protection Yes (Basic insulation) Mechanical and Housing Housing L 359x30x21 Emergency Operation Battery voltage lamp ignition 198-254 V Battery voltage lamp operation 176-254 Approval and Application Energy efficiency index A1 BAT IP classification IP 20  [ Ingress Protection 20] EMI 9 kHz ... 30 MHz EN55015 EMI 30 MHz ... 1,000 MHz EN 55022 Class B Safety standard IEC 61347-2-3 Performance standard IEC 60929 Quality standard ISO 9000:2000 Environmental standard ISO 14001 Harmonic current emission standard IEC 61000-3-2 EMC immunity standard IEC 61547 Vibration standard IEC68-2-6 F c Bumps standard IEC 68-2-29 Eb Humidity standard EN 61347-2-3 clause 11 Approval marks CE marking ENEC certificate VDE-EMV certificate Temperature marking Yes Emergency standard IEC 60598-2-22 Humming and noise level Inaudible Product Data Full product code 871829166205100 Order product name HF-Ri TD 1 28/35/49/54 TL5 E+ 195-240V EAN/UPC – product 8718291662051 Order code 66205100 Local order code HFRITD12854T5PL SAP numerator – quantity per pack 1 Numerator – packs per outer box 12 SAP material 913700695666 SAP net weight (piece) 0.261 kg

Read more less

PureVOLT IUV-2S60-M4-LD This Philips electronic ballast runs the following lamps : Philips TUV 55W HO G55T8 Philips TUV 75W HO G75T8 Philips TUV PL-L 35W HO/4P Philips TUV PL-L 60W HO/4P Philips TUV PL-L 95W HO/4P Philips TUV 36 T5 HO 75W 4P-SE Detailed product description Advance Pure Volt IUV-2S60-M4-L The microprocessor controlled Advance PureVOLT electronic ballasts are specifically designed to operate a variety of germicidal lamps. PureVOLT ballasts operate the following low pressure mercury germicidal UV lamps:High OutputTwin Tube: (1 or 2) HO 35W or 60W; (1) HO 95WLinear: (1 or 2) 36T5HO (75W); (1) 64T5HO (145W) Standard OutputTwin Tube: (1 or 2) TUV 18 PL-L or 36 PL-L The Advance PureVOLT ballasts for UV lamps offer exclusive features such as IntelliVolt® technology (allowing the ballast to operate at any input voltage from 120 to 277 volts, 50/60 Hz), dual entry, color-coded connectors and lamp EOL protection.A powerful pair, the combination of germicidal lamps with an Advance PureVOLT ballast provides the appropriate level of UV-C energy to stop the spread of microorganisms, airborne contaminants, and pathogens, reducing the threat of illness andhelping to ensure a safer environment for building occupants. Other options TUV 55W HOTUV 75W HOTL 60W/10TL 80W/10 Product parameters Drivers for TUV Manufacturer Philips EAN 8727900783995 Product number 914499999001 Source type IUV-2S60-M4-LD Number of sources 1 or 2 Type UIV-2S60-M4-LD GPC code 914499999001 EOC code 872790078399500 Pieces in box 20ks Voltage 120-277 V Current 0,56 - 1,3 A Length 175 mm Height 34 mm Width 77 mm IP protection IP20 Dimmable No

Read more less

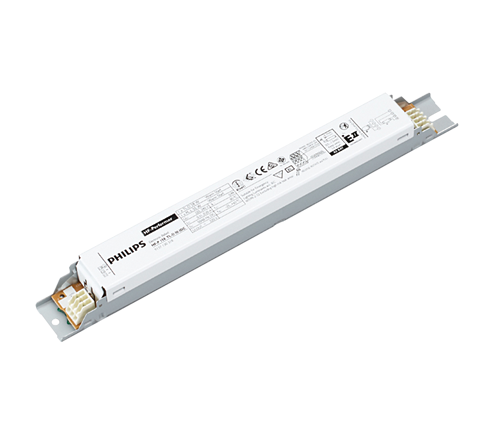

Philips Electronic HF performer II TL-D ballast to run 1x58w or 1 x70W T8 Tubes - HFP158TLDEII Specifications General information Application Code III Type Version IDC Lamp Type TL-D/PL-L Number of Lamps 1 piece/unit Number of Products on MCB (16A Type B) (Nom) 28 Automatic Restart Yes Operating and electrical Input Voltage 220 to 240 V Input Frequency 50 to 60 Hz Operating Frequency (Nom) 45 kHz Ignition Method Programmed Start Crestfactor (Max) 1.7 Power Factor 100% Load (Nom) 0.99 Ignition Time (Max) 0.9 s Mains Voltage Performance (AC) -8%-+6% Mains Voltage Safety (AC) -10%-+10% Earth Leakage Current (Nom) 0.5 mA Inrush Current Width 0.25 ms Constant Wattage Deviation -2%/+2% Ballast Factor (Nom) 0.95 Power Factor (Nom) 0.99 Power Losses (Nom) 4.3-4.4 W Inrush Current Peak (Max) 18 A Efficiency at full load [%] 93.3 % Wiring Connector Type Input Terminals WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring] Cable Capacity Output Wires Mutual (Nom) 200 pF Connector Type Output Terminals WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring] Cable Length Hot Wiring 0.75 m Wire Striplength 8.0-9.0 mm Dual Fixture Master/Slave Not applicable  [ Master/Slave oper. not applicable] Input Terminal Cross Section 0.50-1.00 mm² Output Terminal Cross Section 0.50-1.00 mm² Cable Capacity Output Wires to Earth (Nom) 200 pF System characteristics Rated Ballast-Lamp Power 58 W Rated Lamp Power on TL-D 58 W System Power on TL-D 56.3W@58W; 63.8W@70 W Lamp Power on TL-D 51.9W@58W; 59.6W@70 W Power Loss on TL-D 4.4W@58W; 4.3W@70 W System Power on PL-L 55.8W@55 W Lamp Power on PL-L 51.5W@55 W Power Loss on PL-L 4.3W@55 W Temperature T-Ambient (Max) 60 °C T-Ambient (Min) -25 °C T-Storage (Max) 50 °C T-Storage (Min) -40 °C T-Case Lifetime (Nom) 80 °C T-Case Maximum (Max) 80 °C T-Ignition (Max) 60 °C T-Ignition (Min) -25 °C Mechanical and housing Housing L 280x30x28 Emergency operation Nominal Light Output After 60 Seconds 100% of EBLF Battery Voltage Lamp Ignition 186-275 V Normal Operating Voltage (DC) 220-240 V Battery Voltage Lamp Operation 186-275 Battery Voltage Guaranteed Operation 176-275 V Battery Voltage Guaranteed Ignition 186-275 V Emergency Ballast Lumen Factor (EBLF) (Nom) 100 % Nominal Light Output After 5 Seconds 50% of EBLF Approval and application Energy Efficiency Index A2 BAT IP Classification IP 20  [ Ingress Protection 20] EMI 9 kHz ... 30 MHz EN55015 EMI 30 MHz ... 1000 MHz EN55022 level B Safety Standard IEC 61347-2-3 Performance Standard IEC 60929 Quality Standard ISO 9000:2000 Environmental Standard ISO 14001 Harmonic Current Emission Standard IEC 61000-3-2 EMC Immunity Standard IEC 61547 Vibration Standard IEC68-2-6 F c Bumps Standard IEC 68-2-29 Eb Humidity Standard EN 61347-2-3 clause 11 Approval Marks CE marking ENEC certificate VDE-EMV certificate Temperature Marking Yes Emergency Standard IEC 60598-2-22 Hum And Noise Level < 30 dB(A) Product data Full product code 872790091170100 Order product name HF-P 158 TL-D III 220-240V 50/60Hz IDC EAN/UPC - Product 8711500999702 Order code 913713031866 Numerator - Quantity Per Pack 1 Numerator - Packs per outer box 12 Material Nr. (12NC) 913713031866 Net Weight (Piece) 0.205 kg Installation diagrams HF-P 158 TL-D III 220-240V 50/60Hz IDC HF-P 158 TL-D III 220-240 V 50/60 Hz IDC

Read more less

66205100 Specifications General Information Remarks UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG Application code E+ Type version mk2 Lamp type TL5 Number of lamps 1 piece/unit Number of products on MCB (16 A type B) (nom.) 39 Automatic restart Yes Operating and Electrical Input Voltage 195-240 V Input frequency 50 to 60 Hz Operating frequency (max.) 110 kHz Operating frequency (min.) 45 kHz Ignition method Warm Start Crest factor (max.) 1.7 Power factor 100% load (nom.) 0.95 Ignition time (max.) 1 s Mains voltage performance (AC) -8%-+6% Mains voltage safety (AC) -10%-+10% Earth leakage current (max.) 0.5 mA Inrush current width 0.18 ms Standby power consumption (max.) 0.25 W Ballast factor (nom.) 1 Power losses (nom.) 3.8 W Inrush current peak (max.) 20 A Wiring Connector type input terminals WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring] Cable capacity output wires mutual (max.) 200 pF Connector type output terminals WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring] Connector type control input terminals WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring] Wire strip length 8.0-9.0 mm Dual fixture master/slave Yes  [ Master/Slave operation possible] Control input terminal cross section 0.50-1.00 mm² Input terminal cross section 0.50-1.00 mm² Output terminal cross section 0.50-1.00 mm² Auto-insert (ALF/ADS) wire cross section 0.75 mm² Cable capacity output wires to earth (max.) 200 pF System characteristics Rated ballast-lamp power 28-35-49-54 W Rated lamp power on TL-D 58 W System power on TL-D 55.5 W Lamp power on TL-D 52.2 W Power loss on TL-D 3.3 W Rated lamp power on PL-L 55 W System power on PL-L 54.6 W Lamp power on PL-L 51.2 W Power loss on PL-L 3.4 W Rated lamp power on TL5 28/35/49/54 W System power on TL5 32.1/39.1/55.1/57.7 W Lamp power on TL5 29.4/36.4/51.6/54.8 W Power loss on TL5 2.7/3.0/3.5 W Rated lamp power on TL5 ECO 25/32/45/50 W System power on TL5 ECO 29.4/33.1/49.1/54.2/ W Lamp Power on TL5 ECO 26.3/30.2/45.7/50.4 W Rated lamp power on TL-D ECO 51 W System power on TL-D ECO 45.8 W Power loss on TL-D ECO 3.1 W Lamp power on TL-D ECO 42.7 W Power loss on TL5 ECO 3.1/2.9/3.4/3.8/ W Temperature T-ambient (max.) 50 °C T-ambient (min.) -25 °C T storage (max.) 80 °C T storage (min.) -40 °C T case lifetime (max.) 75 °C T-Case maximum (max.) 75 °C Stable lamp operation temperature 15°C T-Ignition (max.) 50 °C T-Ignition (min.) -25 °C Controls and Dimming Control interface TD Regulating level power 1%-100% Control input protection Yes (Basic insulation) Mechanical and Housing Housing L 359x30x21 Emergency Operation Battery voltage lamp ignition 198-254 V Battery voltage lamp operation 176-254 Approval and Application Energy efficiency index A1 BAT IP classification IP 20  [ Ingress Protection 20] EMI 9 kHz ... 30 MHz EN55015 EMI 30 MHz ... 1,000 MHz EN 55022 Class B Safety standard IEC 61347-2-3 Performance standard IEC 60929 Quality standard ISO 9000:2000 Environmental standard ISO 14001 Harmonic current emission standard IEC 61000-3-2 EMC immunity standard IEC 61547 Vibration standard IEC68-2-6 F c Bumps standard IEC 68-2-29 Eb Humidity standard EN 61347-2-3 clause 11 Approval marks CE marking ENEC certificate VDE-EMV certificate Temperature marking Yes Emergency standard IEC 60598-2-22 Humming and noise level Inaudible Product Data Full product code 871829166205100 Order product name HF-Ri TD 1 28/35/49/54 TL5 E+ 195-240V EAN/UPC – product 8718291662051 Order code 66205100 Local order code HFRITD12854T5PL SAP numerator – quantity per pack 1 Numerator – packs per outer box 12 SAP material 913700695666 SAP net weight (piece) 0.261 kg
