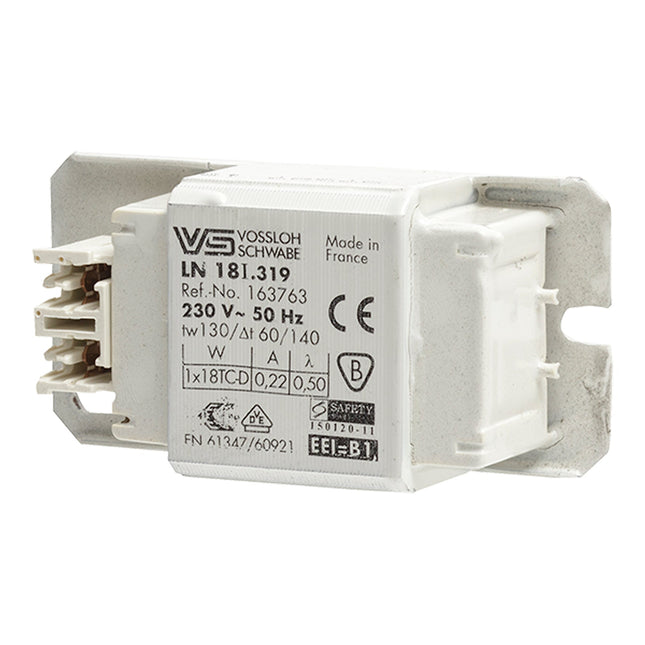

BTA 18W 230V C SC Order code: 913710111750 Full Product Code: 871016303364830 Specifications Similar to   L18A-l EC18A502K LN18.114 LN18I.319 General Information Application Code 18W Design C Operating and Electrical Input Voltage 230 V Input Frequency 50 Hz Mains Voltage Performance (AC) -8%-+6% Mains Voltage Safety (AC) -10%-+10% Power Factor with PF Compensation 0.85 Power Factor without PF Compensation (Nom) 0.35 Power Losses (Nom) 9.0 W Wiring Wire Striplength 8.0 mm Ballast Contact Wire Cross Section 0.50-1.00 mm² Connector Type Screw System characteristics Rated Ballast-Lamp Power 18 W Temperature T-Storage (Max) 80 °C T-Storage (Min) -40 °C T-Winding (Max) 130 °C Delta-T Normal Conditions 65 °C Mechanical and Housing Housing L 155x39x28 Approval and Application Energy Efficiency Index C Approval Marks CE marking Product Data Full product code 871016303364830 Order product name BTA 18W 230V C SC EAN/UPC - Product 8710163148632 Order code 913710111750 Numerator - Quantity Per Pack 1 Numerator - Packs per outer box 32 Material Nr. (12NC) 913710111750 Net Weight (Piece) 0.500 kg

Read more less

1x16w Magnetic Ballast - Vossloh Schwabe - LN16.316 will be supplied

Read more less

Vossloh SchwabeL7/6/11.307 Vossloh Shwabe 163694 Ballast Runs PLS 2 Pin 5W 7W 9W and 11W

Read more less

80W/125W Mercury Ballast

Read more less

PLC 2 PIn  18W Choke 105mm * 42mm *28mm

Read more less

250w SON/Metal Halide Ballast - HSA25223221

Read more less

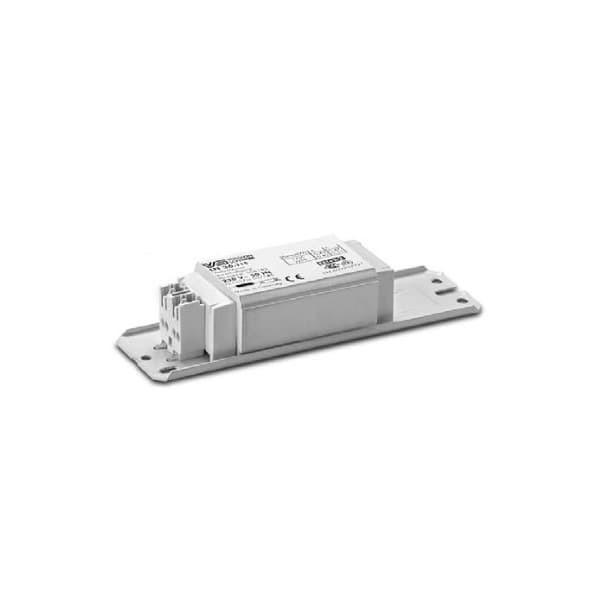

Vossloh LN30.801 Ballast for 1x30w Fluorescent.    Standard ballastVacuum-impregnated with polyester resinPush-in terminal for leads: 0.5–1mm²For the automatic luminaire wiring: IDC terminals for leads H05V-U 0.5Protection class I Lamp type: T8Output [W]: 2x15, 30 for fluorescent lamps T8 (G13)Voltage [V]: 230Frequency [Hz]: 50HzShape: 28 x 41 mmDimensions (a*b*c): 155x 41 x28Energy efficiency: B2

Read more less
